MHGRV-X Field Technical Guide
LCD DISPLAY SCREENS
11

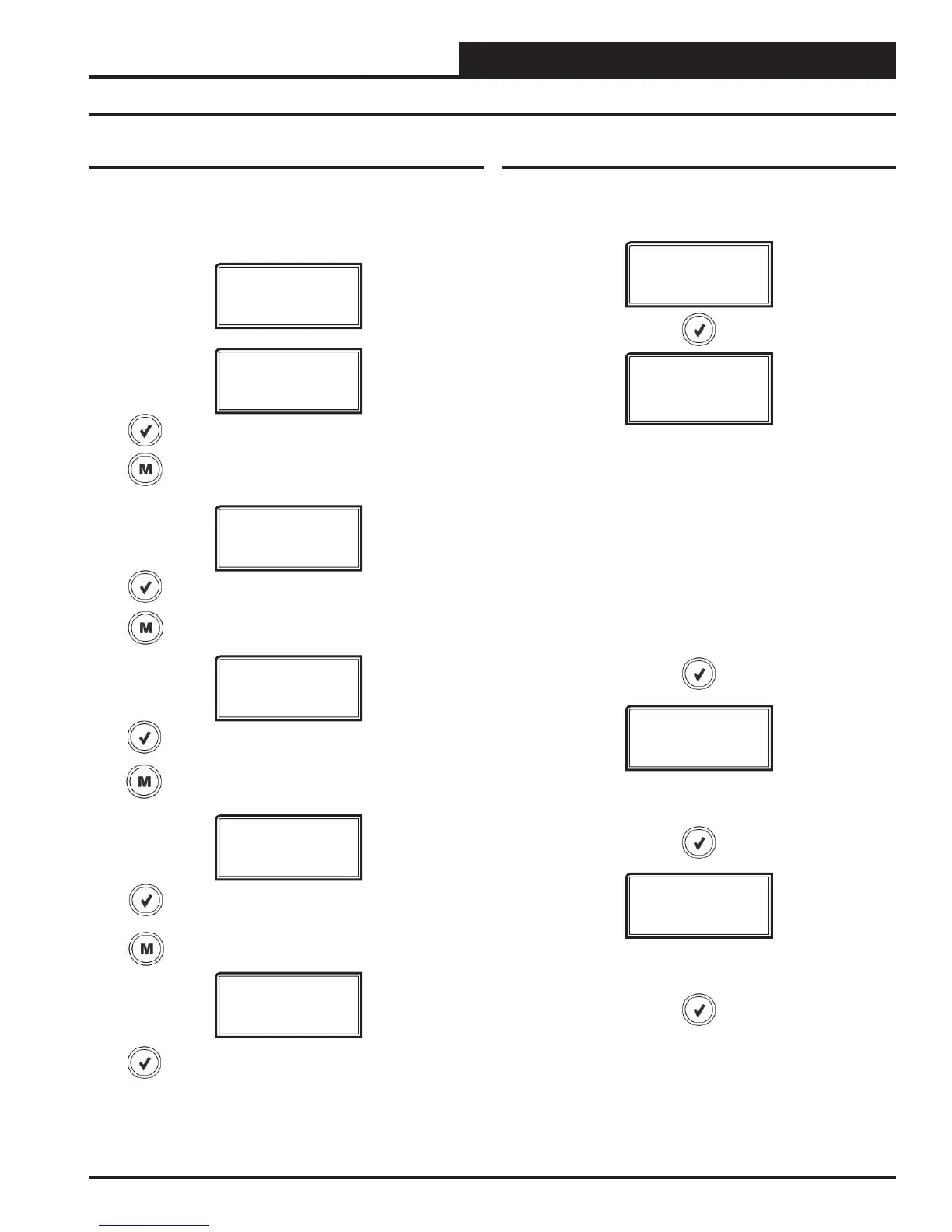

Main Screens Map
Refer to the following map when navigating through the LCD Main
Screens. The fi rst screen is an initialization screen. To scroll through
the rest of the screens, press the <MENU> button.
MHG
REHEAT
STATUS
SCREEN
ALARMS
SETPOINT
FORCE
VALVES
INIT
VALVE
Press to scroll through STATUS Screens.
Press to scroll through ALARMS Screens.
Press to scroll through FORCE VALVES Screens.
Press to go to ALARMS Screens.
Press to go to SETPOINTS Screens.
Press to go to FORCE VALVE Screens.
Press to go to STATUS Screens.
Press to scroll through MHG REHEAT Screens.
Press to scroll through SETPOINT Screens.
Main Screens Map and Main MHG REHEAT Screens
Main MHG REHEAT Screens
Refer to the following map when navigating through the Main
Screens. From the MHG REHEAT Screen, press
<ENTER> to
scroll through the screens.
MHG
REHEAT
S/A MODE,
SA MODE LOCKED
or COMM MODE
SOFTWARE
VER 3.06
ADDRESS
#
CURRENT SOFTWARE VERSION
In Stand-Alone Mode, the screen will display S/A MODE or S/A MODE
LOCKED.
In Communications Mode, the screen will display COMM MODE and the
items below will scroll through the screen:
1. Number of good packets being received. This will roll over after 9999.
Example: +XXXX
2. Number of checksum errors. This will stop at 9999. Example: C-XXXX
3. Number of packet length errors. This will stop at 9999 until power is
cycled. Example: P-XXXX
CURRENT BOARD ADDRESS
