WIRING
MHGRV-X Field Technical Guide
6
MHGRV-X Stand-Alone Wiring

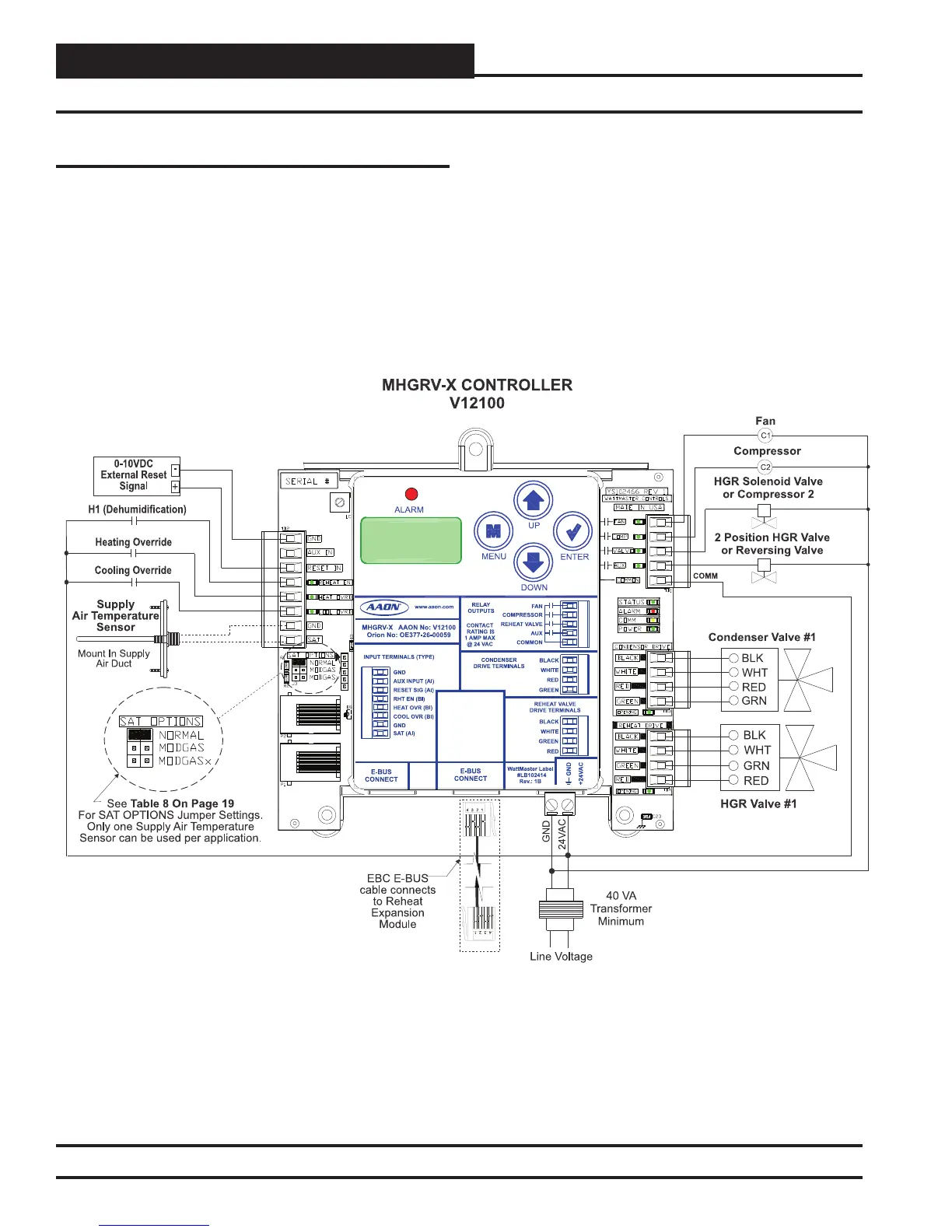

Figure 3: MHGRV-X Controller Stand-Alone Wiring
Stand-Alone Wiring
In Stand-Alone mode, the MHGRV-X connects to the E-BUS port
of the Reheat Expansion Module with an EBC E-BUS cable. See
Figure 3 below.
See the SAT Wiring Conditions Table and SAT OPTIONS jumper
settings in Tables 7 & 8, page 19.
