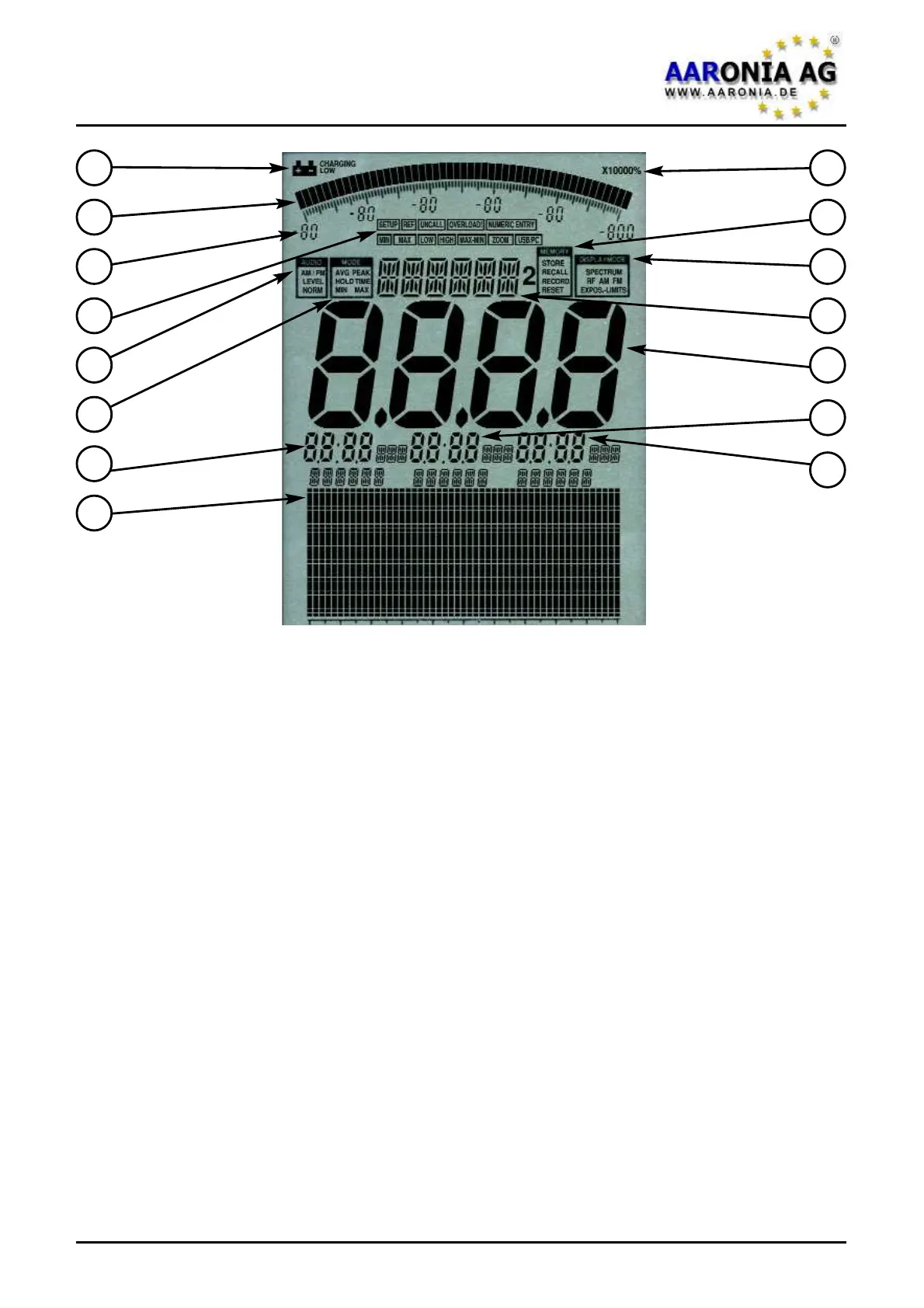

(1) BATTERY display
(2) BARGRAPH (50 segments)
(3) Bargraph scaling (6 number blocks)
(4) STATUS field:
SETUP, REF, UNCALL, OVERLOAD!, NUMERIC ENTRY, MIN, MAX
LOW, HIGH, MAX-MIN, ZOOM, USB/PC
(5) AUDIO Status field
AM/FM, LEVEL, NORM
(6) MODE Status field:
AVG, PEAK, HOLD, TIME, MIN, MAX
(7) MARKER block 1
(8) Graphics display (Pixel display)
(9) MULTIPLICATOR field
(10) MEMORY Status field:
STORE, RECALL, RECORD, RESET
(11) DISPLAY MODE Status field:
SPECTRUM, RF, AM, FM, EXPOS.-LIMITS
(12) INFO display
(13) MAIN display
(14) MARKER block 2
(15) MARKER block 3
Depending on the model, not all display elements may be available!
1
2
3
4
5
6
7
8
12
11
10
9
13
14
15
3.0 LC Display
Firmware V 1.0 / © 2005-2013 by Aaronia AG, D-54597 Euscheid, www.aaronia.com
