Aastra 9116LP User Manual

4
Basic Installation
Basic Installation
The 9116LP can be powered from either a PBX line or from the power adaptor sup-
plied with this product. If using the power adaptor, use the following instructions to
install this telephone. For information on installation using PBX line power, see the
next section.

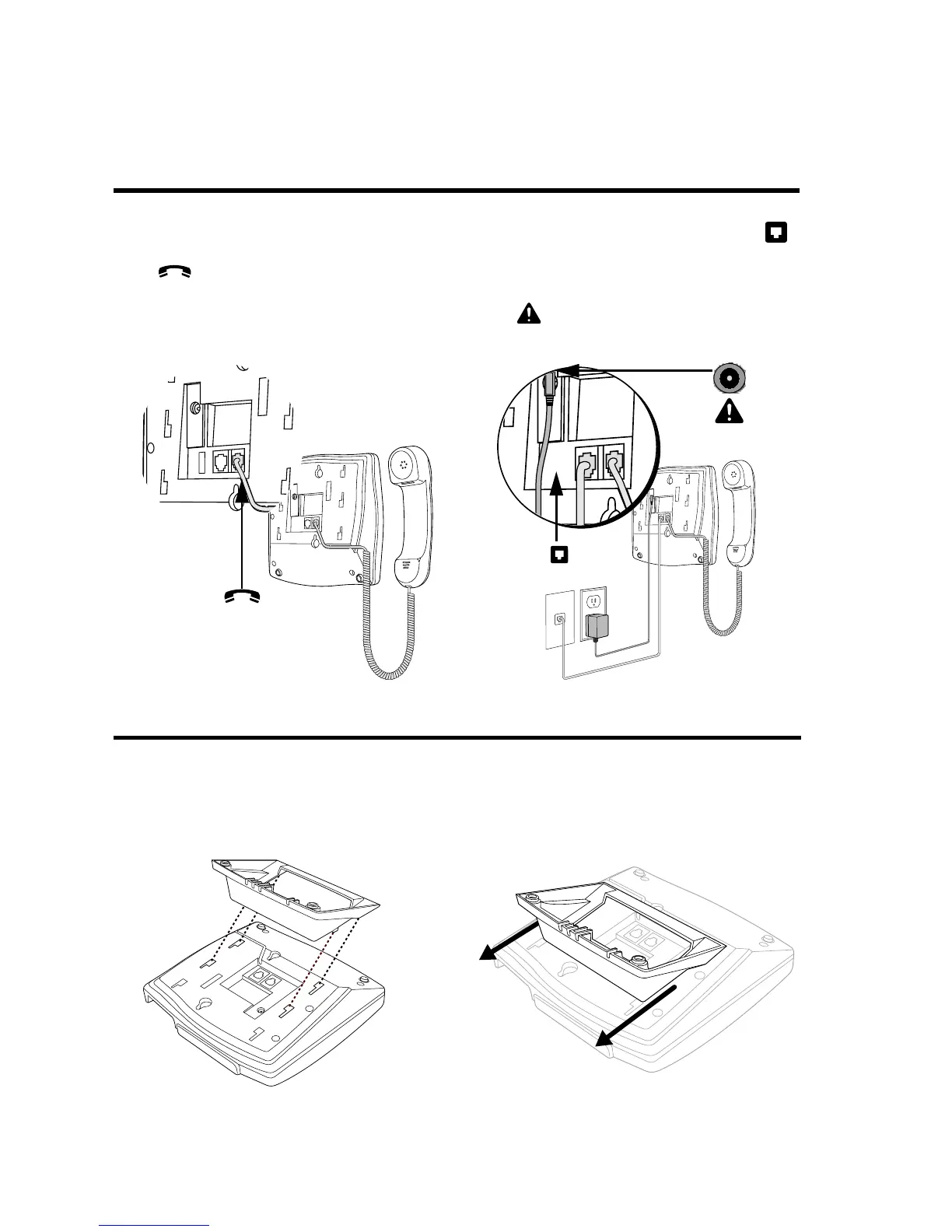

1. Connect the Handset 2.Connect the Cords
Attach one end of the coiled handset cord to
the handset and the other end to the handset
port on the back of the telephone.
Route the handset cord along the groove lead-
ing off the side of the telephone as shown in
the illustration.
Plug one end of the telephone cord into
on the back of the telephone and the other
end to the phone jack.
Connect the small end of the power adaptor
to the port on the back of the telephone,
and plug the other end into an electrical outlet.
3. Attach the Stand for Desk Mount
If you plan to mount the telephone on the wall, you do not need to attach the stand.
Lower the stand as shown below into the slots
on the back of the telephone.
Slide the stand in the direction shown below
until it clicks into the locked position.
1

Aastra 9116LP Specifications

General

Type	Analog telephone
Ringer type	Monophonic
Answering machine	No
Voice dialing	Yes
Volume control	Digital
Languages support	ENG, ESP, FRE
Number of programmable buttons	8
Dimensions (WxDxH)	191 x 191 x 89 mm
Phonebook capacity	20 entries
Display number of lines	3 lines
Display number of colors	Monochrome
Mounting type	Desk
Product color	Black

Weight and Dimensions

Weight	1100 g
