Basic Installation
Follow the instructions below to install your 9417CW telephone.

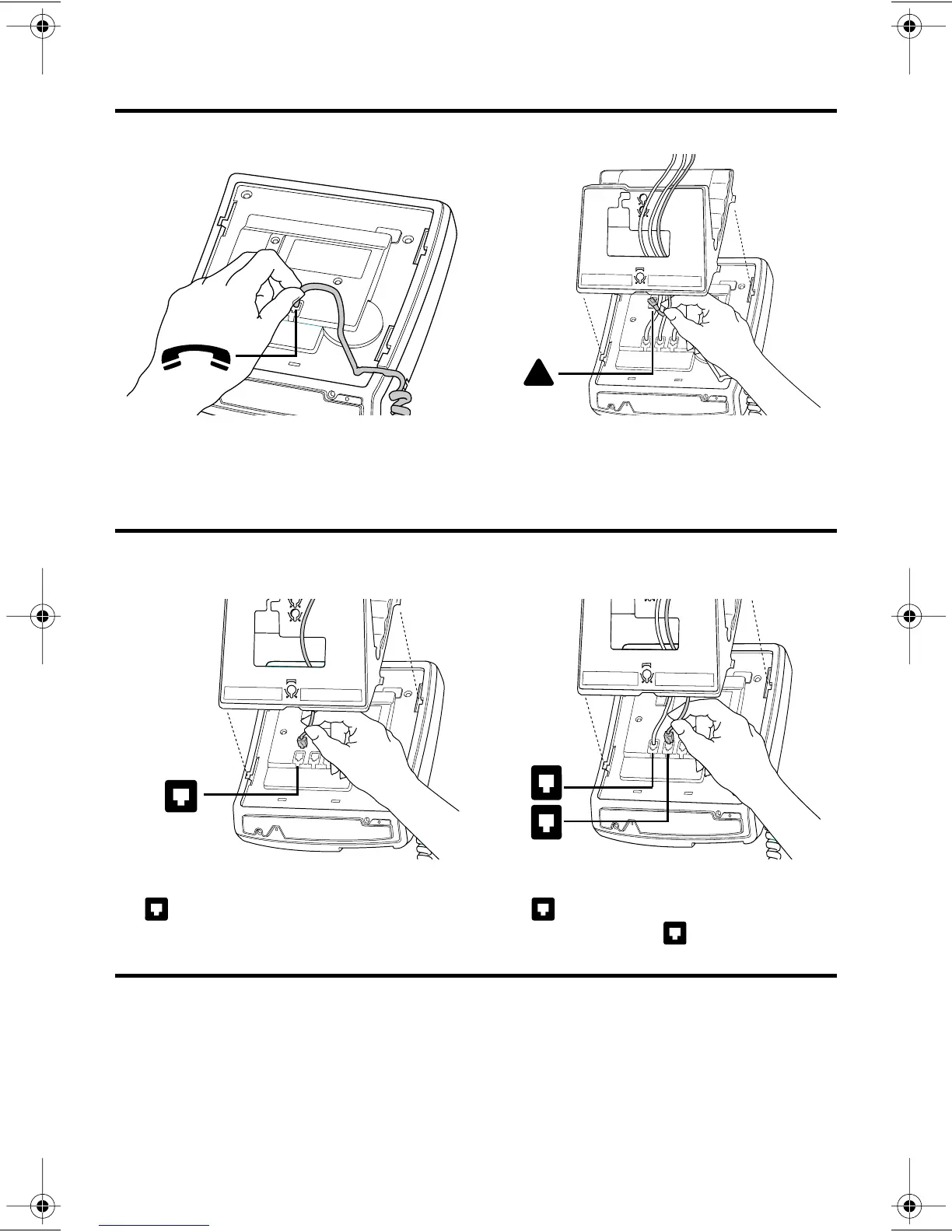

Connecting the handset cord Connecting the power adaptor
Attach one end of the handset cord to the
handset and the other end to the handset
jack.
Attach the power adaptor to the base of
the telephone where the warning symbol
is marked. Connect the power adaptor
into the closest electrical outlet.
Connecting the Line Cord when
†
...
...lines 1 and 2 are on the same line cord
†
To determine whether you have two lines on one telephone cord, attach one end of the line cord to
jack number 1 and the other end of the line cord to the wall jack. Then plug in the power adaptor and
read the display. (If the display prompts you to select a language, choose your language of choice.) If
Lines 1 and 2 are on the same line cord, the time and date are shown. If Lines 1 and 2 are on separate
line cords, Check line cord appears on the first line of the display and Line 2 appears on the second
line of the display. If you want Line 1 and Line 2 on the same line cord, contact your telephone com-
pany.
...lines 1 and 2 are on different line cords
Insert the line cord in jack 1, as shown by
1 . Insert the other end of the line cord
into the wall jack.
Insert the first line cord in jack 1 as shown
by 1 . Insert the second line cord in
jack 2 as shown by 2 . Insert the other
ends of the line cords into the wall jacks.
!
1
2
1
P0844339 04 E UG 9417CW Page 4 Thursday, April 20, 2000 11:09 AM

Aastra 9417CW Specifications

Power

power type	16 Vac transformer
voltage message waiting indicator	CLASS

Weight and Dimensions

weight	2.3 lbs
length	7.5”
width	7.5”
height	3.5”
