2.2 Features of the s-max sella

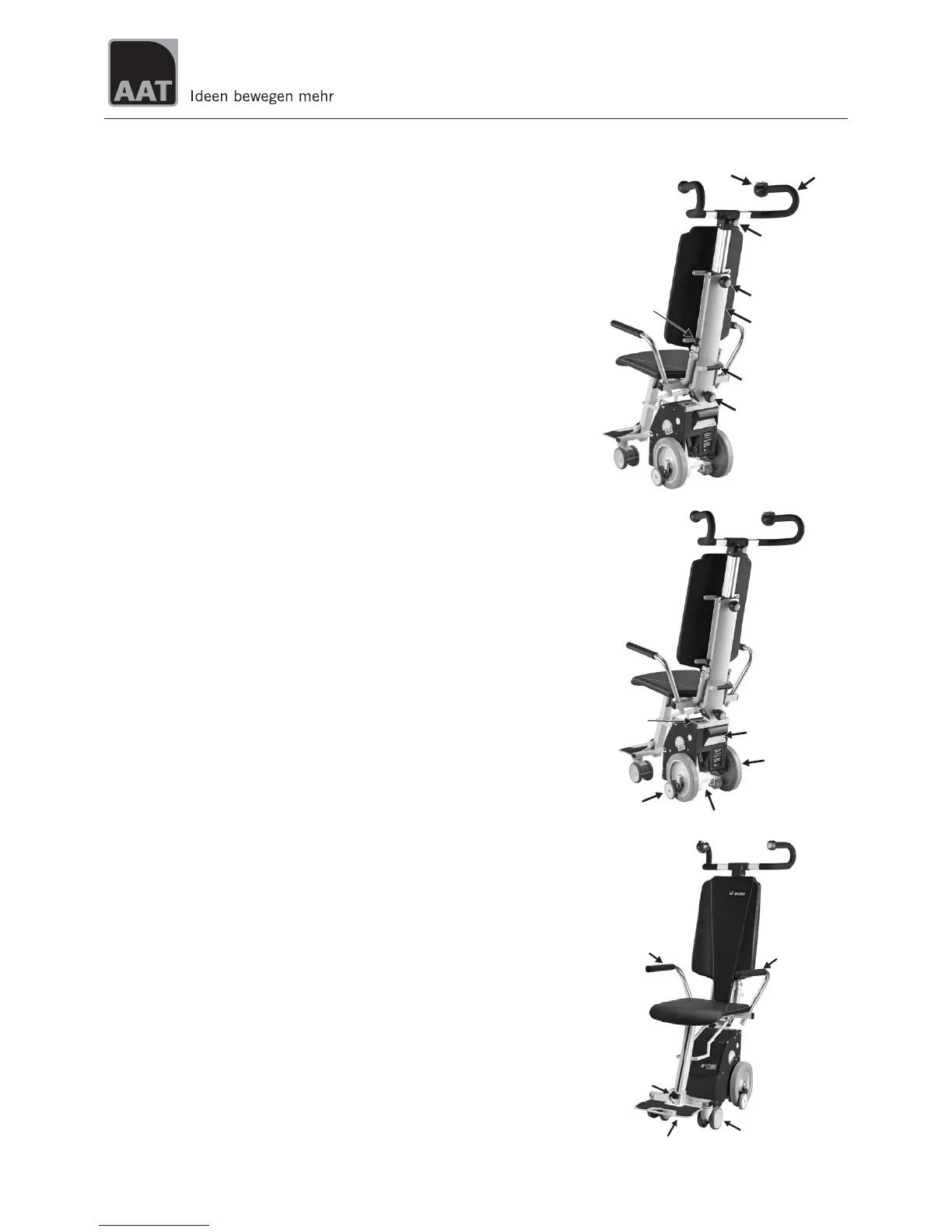

handle/seat unit of the sella
1 = control unit
2 = handle
3 = tightening knob for the handles’ horizontal adjustment
4 = tightening knob for the handles’ height adjustment
5 = column
6 = release lever (to fold the seat/handle unit)
7 = tightening knob for the column
8 = release button(to unfold the seat/handle unit)
Climbing unit
9 = battery pack
10 = main wheel
11 = climber
12 = safety brake
13 = control light and single step control
handle/seat unit of sella
14 = arm rests (foldable)
15 = steering roller with wheel lock
16 = foot rest (foldable)
17 = tightening knob for the foot rest’s height adjustment
7
s-max sella · 160 kg
