13
GENERAL DESCRIPTION
ELECTRICAL SYSTEM OPERATION / STANDARD EQUIPMENT
Breakers
Each one of the electrical circuits that feeds a certain load is
protected by automatic breakers, these are usually placed at
the switchboard on the console, above the switches of the
circuits it protects. If an overcurrent event happens, the
breaker will act and it will open the circuit to avoid damage to
the wires.
Fuses
The fuses are installed to protect the general circuits (Panel
feed wire/circuit). When an overall damage occurs, the fuse
will burn out and protect the circuit.

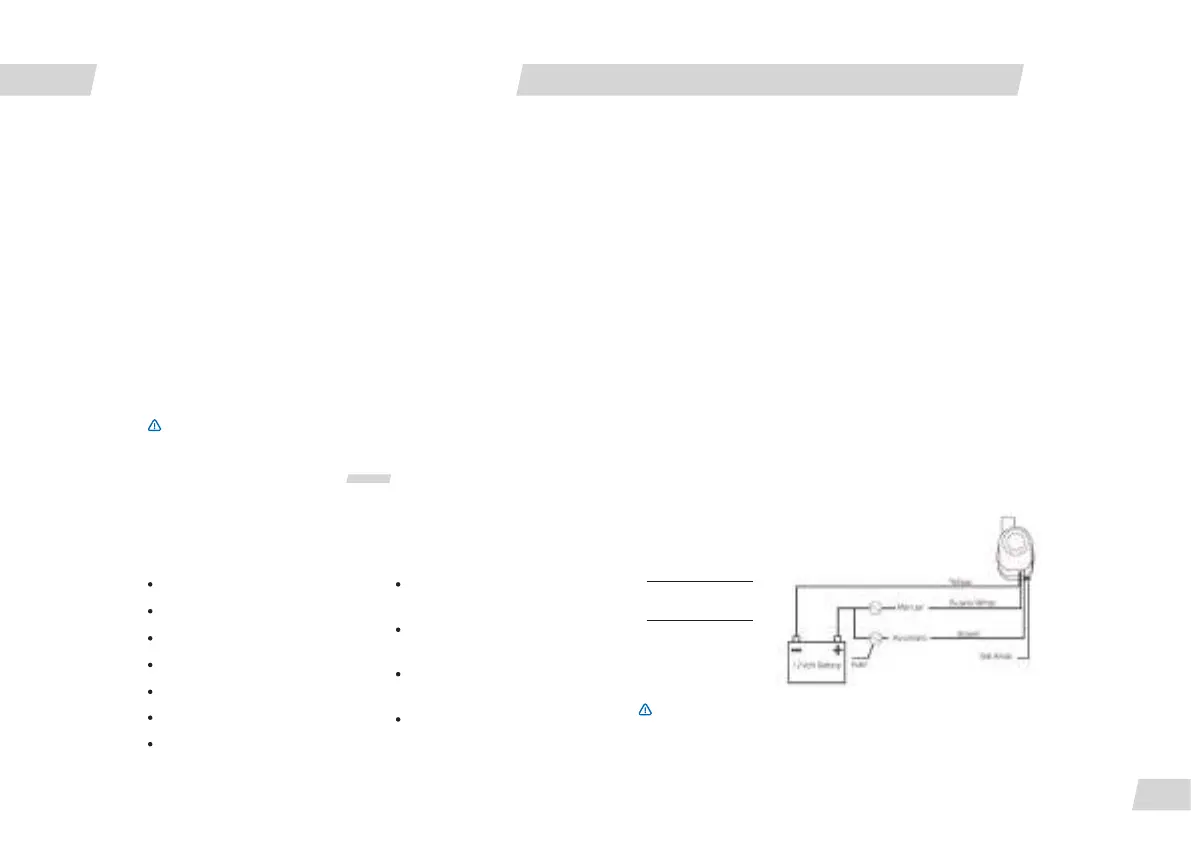

Bilge Pump
The bilge pump is installed on a at base located inside the
engine compartment. The function of this device is to evacua-
te the water that could fall into because of waves, rain or
extreme weather conditions. The owner/user should remem-
ber that ABJET has a self-bailing deck and rubber sealed
engine compartment. The bilge pump has a dual operation
start system, both: automatic and manual. The pump has the
possibility of a remote start by using the manual switch “BILGE
PUMP” installed on the switch board located on the console.
To protect the ABJET from weather conditions, this equipment
will work even when the “BILGE PUMP” switch is o; this is
possible because the pump is connected directly to the
battery. Thus, the automatic oat system will work even if the
user is not there to assist the evacuation of water. If the bilge
pump remains turned on (continuously working) you must
check for any leakage through the hull or the drain hoses; also
check if the automatic oating switch is stuck.
Boats are delivered with a basic electrical installation.
The standard equipment may vary according to the ABJET
model acquired.
Standard Equipment
NOTICE
See the troubleshooting chart.
NOTICE
See the bilge pump installation instructions attached
in your owner manual package.
Automatic Bilge Pump
LED Navigation & Anchor Lights
Battery Charger
Automatic Fire Extinguisher Device
Safety Lanyard Switch
LED Courtesy Lights
Battery Switch
Engine Compartment
In-Line Blower
Maintenance-Free
Battery
Height Adjustable
Wheel (Tilt)
Mechanical Steering
System
AMP 1.5
3AFUSE (A)
500GPH / Oft
