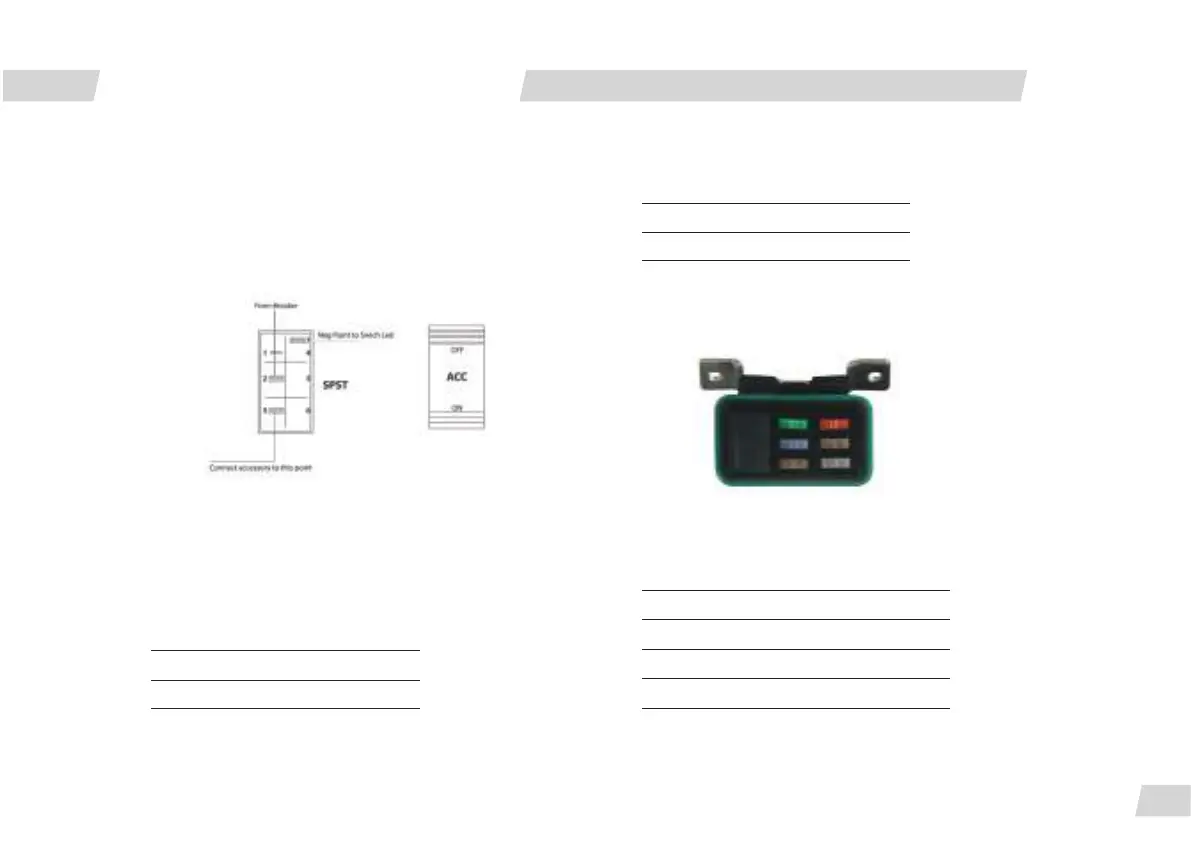

Additional Circuits
The additional circuits (ACC Switches) for accessories are
rated with an over current protection of 5 amps. Please
consider this information when you select additional devices
to install on the boat.
Fuse & Breakers identication
Color Code
Wire color selection is based on the ABYC standard E-11,
Table XIV and XV.
GENERAL DESCRIPTION
STANDARD EQUIPMENT
Ignition Wire Purple
Fuel Level Sender Pink
Instruments Lights Blue
Navigation and Position Lights Gray
Ground Wire Green
Negative Conductors Yellow
DESCRIPTION/DEVICE COLOR
Bilge/Fresh Water/Pumps Brown
Positive Conductors Red
FUSE # CAPACITY (AMP) TO PROTECT
1
2
3
30
15
5
Battery Ignition
Safety Lanyard
Control panel
4
5
10
5
Accesories
Bilge Blower
6 3
Bilge Pump
17
