ABIPBox99HD

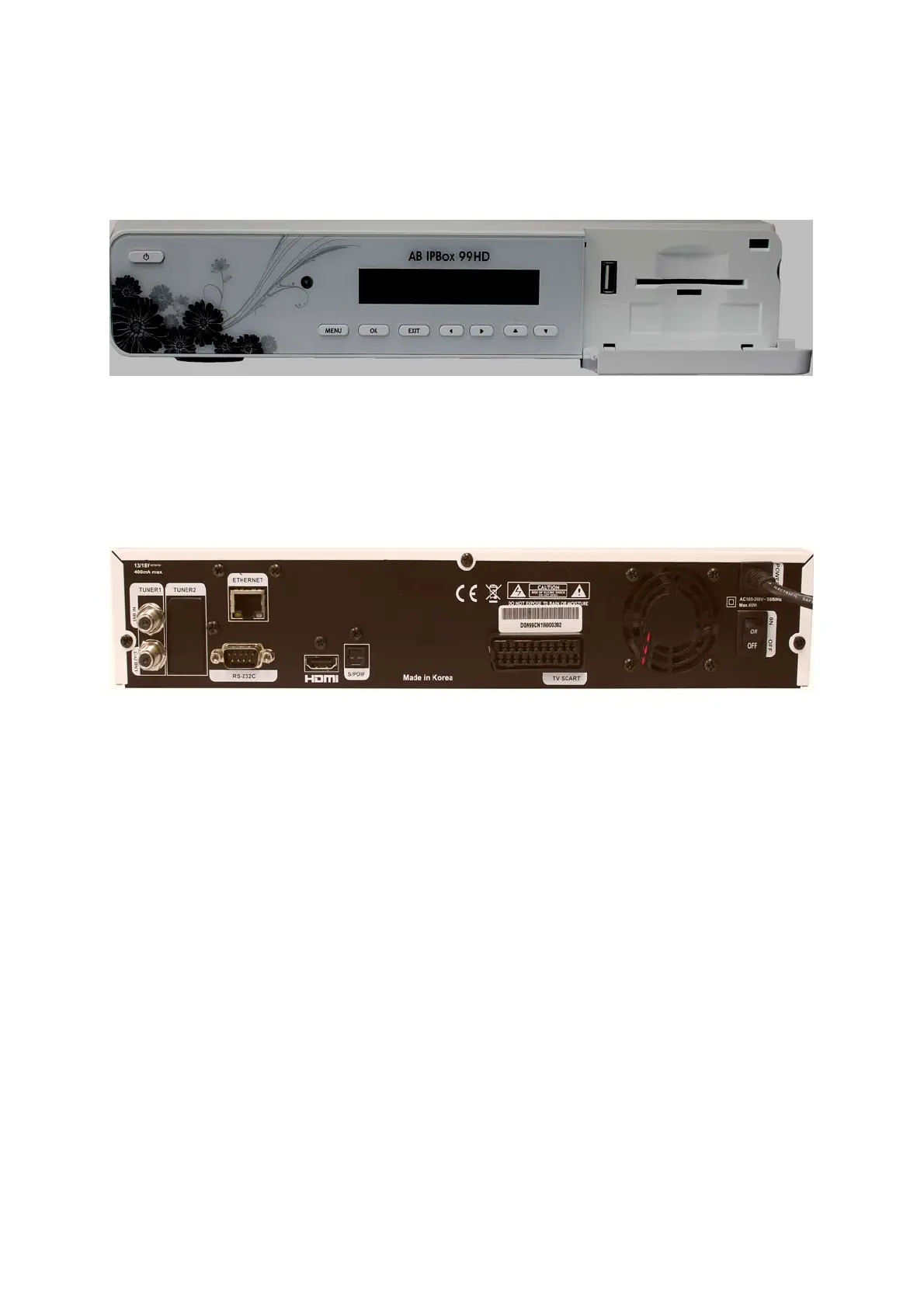

Frontpanelandcontrolbuttons:
This model has almost the same front panel like AB IPBox 9900HD receiver. The difference
is behind the doors on the right side of front panel – the AB IPBox 99HD is equipped with
just one card reader and USB port.
Rearpanel
Rear panel consists of (from left side to the right):
- Input and Loop output of DVB-S2 tuner
- RS232 port
- Ethernet port
- HDMI output
- S/PDIF output
- SCART TV output
- Fan
- Power cord and Power switch
