AB IPBox 9900HD - Physical Description

14

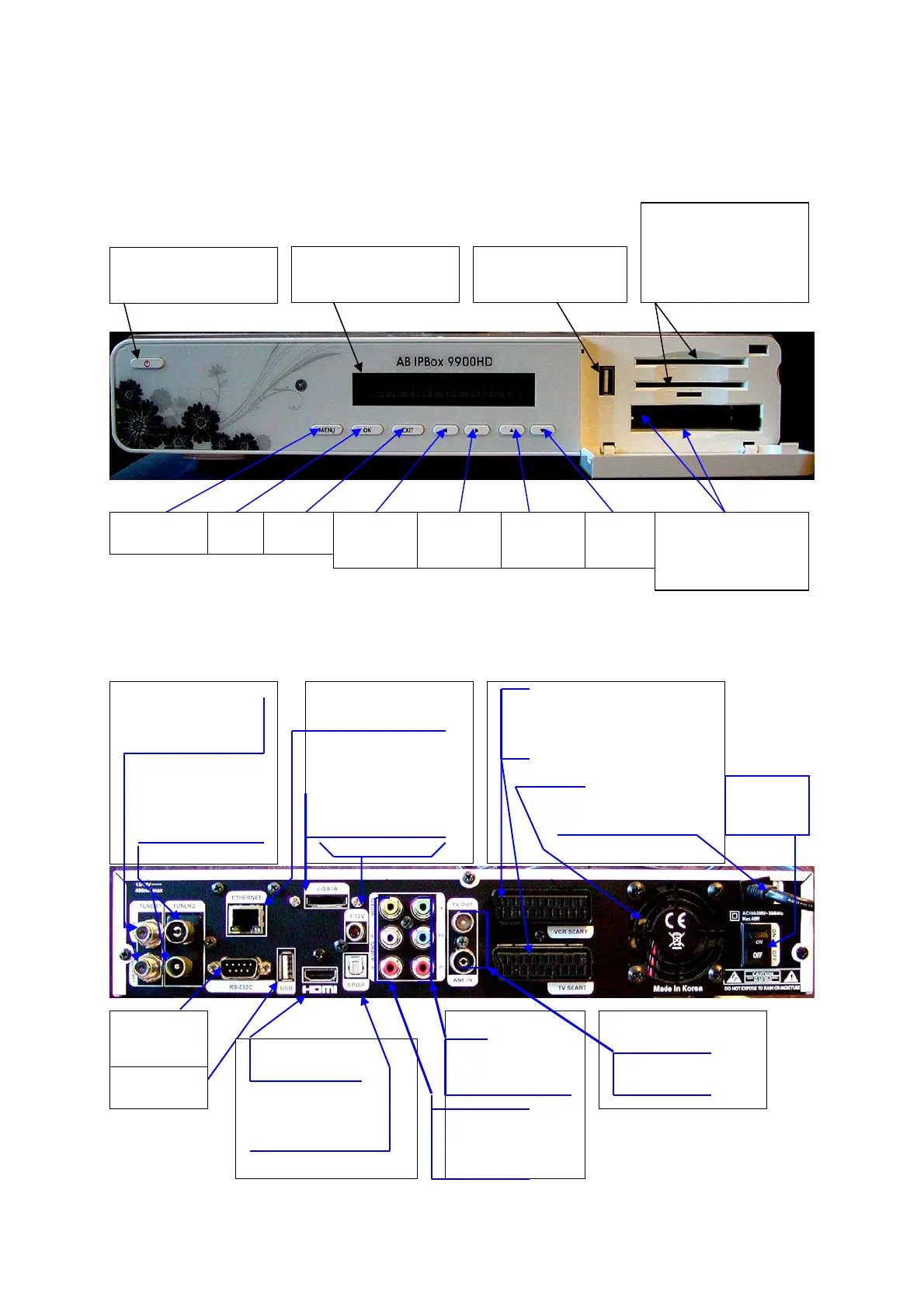

Physical description:
ABIPBox9900HD

Frontpanelandcontrolbuttons:
Rearpanel:
STANDBY
Vacuum fluorescent
alfanumeric display
USB 2.0 host
connector
Card readers
(insert card the way
that golden chip is
facing down)
MENU OK EXIT Left Right
Up Down Common Interface
(CA)
LNB IN
Loop Through
IEC connectors
(Tuner B input,
DVB-T output)
Ethernet
Connector for
connection of
external e-SATA
HDD
SCART VCR
SCART TV
Fan
Power cord
Power
switch
RS232
port
USB 2.0.
Výstup HDMI
Optical audio
S/PDIF output
RCA – outputs:
YPbPr –
component
video output
Y Video CVBS
B Audio L
R Audio R
RF Modulator
TV output
Antenna input
