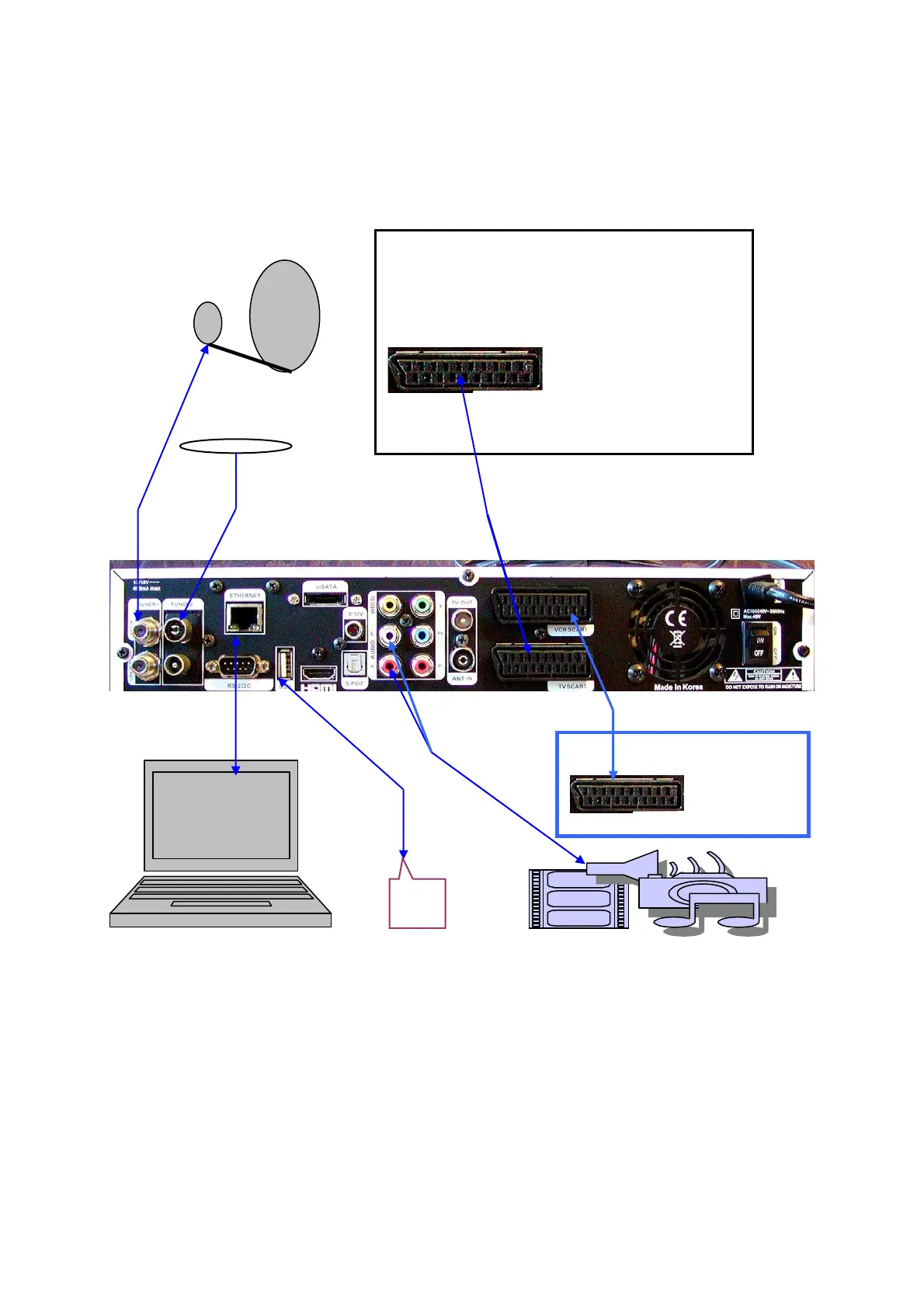

Example 2:
Basic connection for older type of TVs without HDMI connector – displays only in SD
(Standard Definition) quality!
- Connect your satellite dish to input LNB IN of DVB-S2 Tuner (1).
- If the receiver is equipped with second Tuner, connect output from corresponding antenna
dish to LNB IN (2) input (terrestrial antenna if it is DVB-T tuner or satellite antenna if it is
DVB-S2 tuner).
- Connect your TV to the receiver via SCART cable (or 3x cinch).
- Connect your home cinema (A/V receiver) via digital optical S/PDIF output or Cinch
outputs AUDIO L/R (only stereo audio).
- Connect Ethernet output to your home network – if possible to the router.
- You can connect memory USB device with multimedia content to USB port.
- You can use SCART AV output for connection of e.g. DVD recorder.
