BDM interface for CodeWarrior™ Debugger, BDI2000 (MPC5xx/8xx) User Manual 9
© Copyright 1992-2001 by ABATRON AG V 1.02
2.3 Status LED «MODE»
The built in LED indicates the following BDI states:
MODE LED BDI STATES
OFF The BDI is ready for use, the firmware is already loaded.
ON The power supply for the BDI2000 is < 4.75VDC.
BLINK The BDI «loader mode» is active (an invalid firmware is loaded or loading firmware is active).

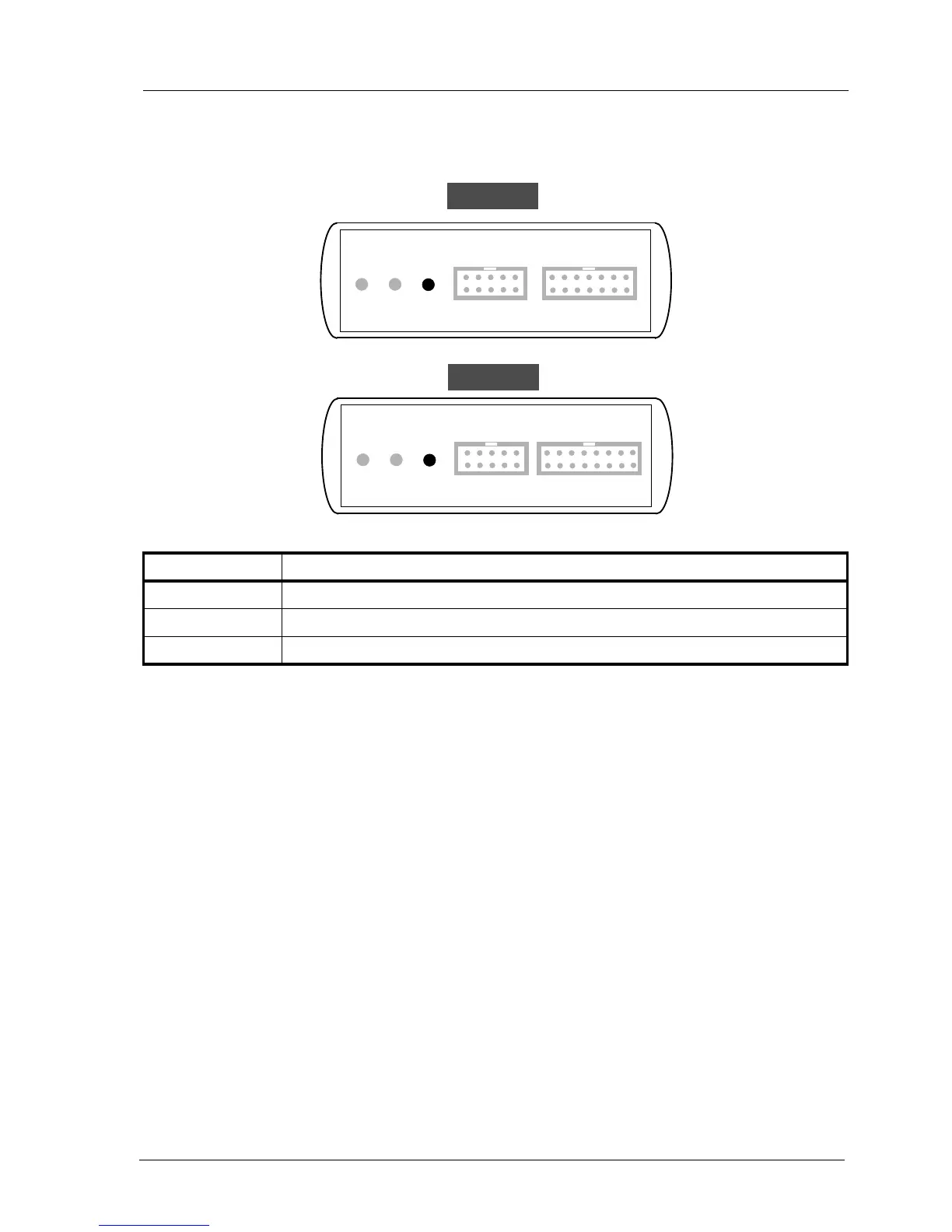

BDI TRGT MODE BDI MAIN BDI OPTION
BDI TRGT MODE TARGET A TARGET B
Rev. A
Rev. B/C
