13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

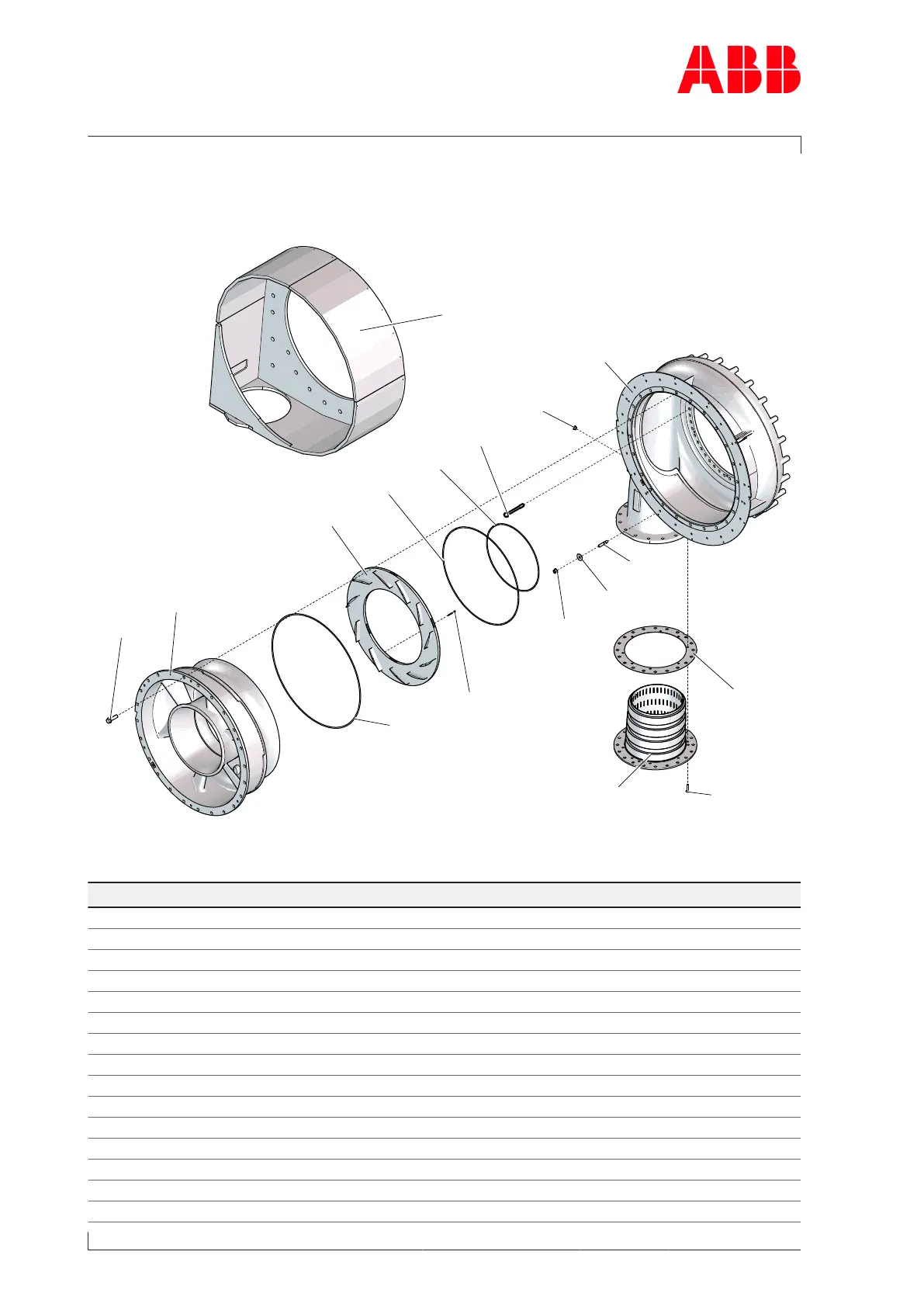

Compressor Casing
74043**
74040**
74042**
72013
79020*
72060
72000
72002
72003*
72004*
61075
77015*
79021*
79000
77040*
77000
72011
** = if provided
HZTL443258 Mod. D* = Available within the spare part set
Part no. Designation
61075 Hexagon-head screw
72000 Compressor casing
72002 Stud
72003* Washer
72004* Hexagon nut
72011 Hexagon-head screw
72013 Screw plug
72060 Insulation
74040** Air-outlet silencer
74042** Gasket
74043** Counter-sunk screw
77000 Wall insert
77015* Socket screw
77040* O-ring
79000 Diffuser
