Operation Manual / A100-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

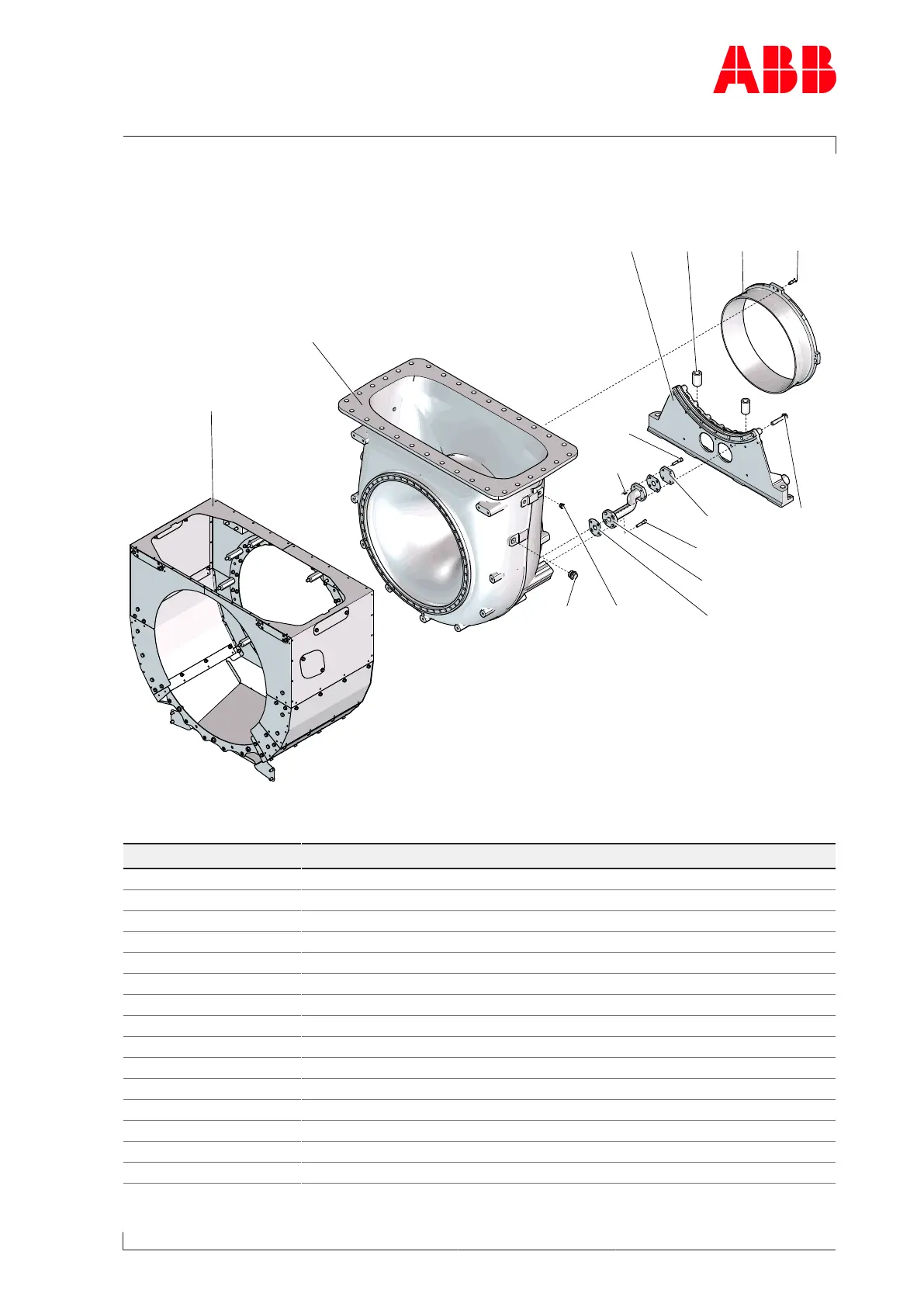

Gas outlet casing
68002 5700168031
57005
61085
61032
61087
61084
61086**
61083
61041
61001
61088
61100
61073
** = if provided
HZTL443257 Mod. B
Part no. Designation
57001 Cover ring
57005 Hexagon-head screw
61001 Gas outlet casing
61032 Hexagon-head screw
61041 Gasket
61073 Screw plug
61083 Pipe
61084 Hexagon-head screw
61085 Hexagon-head screw
61086** Hexagon nut
61087 Blind flange
61088 Screw plug
61100 Insulation
68002 Foot TE
68031 Distance sleeve
Table59: Spare parts – Gas outlet casing
Page 129 / 141
