9 Disassembly and assembly / 9.4 Disassembly and assembly of the fil-
ter silencer casing
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

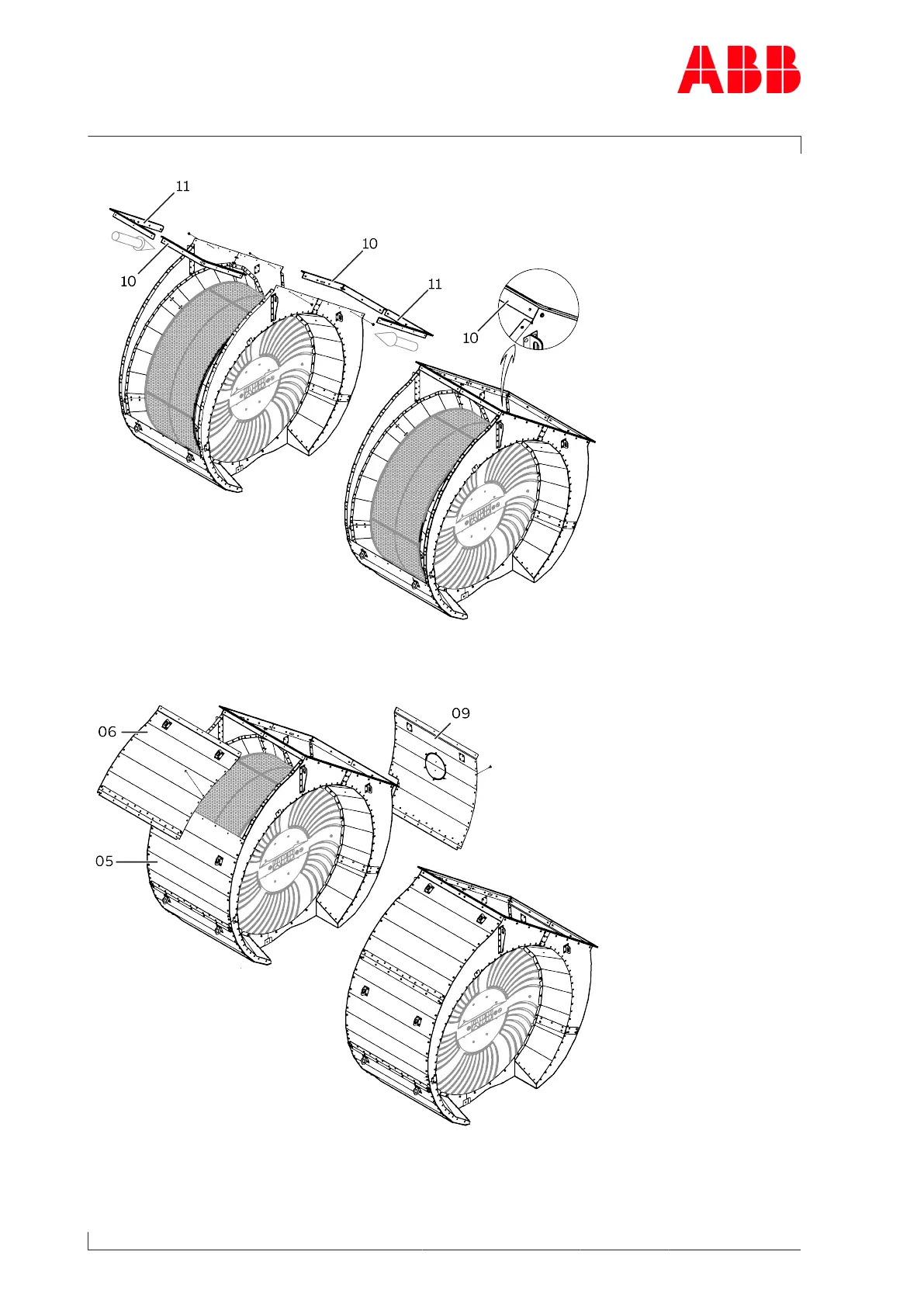

Fig.30: Fitting the filter silencer casing
u Insert the flanges(10) and (11) laterally between the side parts and fit the screws.
Fig.31: Fitting the filter silencer casing
u Fit the circumferential part(05) with the screws.
u Fit the circumferential part(06) with the screws.
