Operation Manual / A100-L
7 Periodic maintenance / 7.2 Cleaning the filter silencer
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
7.2 Cleaning the filter silencer
Filter silencer with tension band

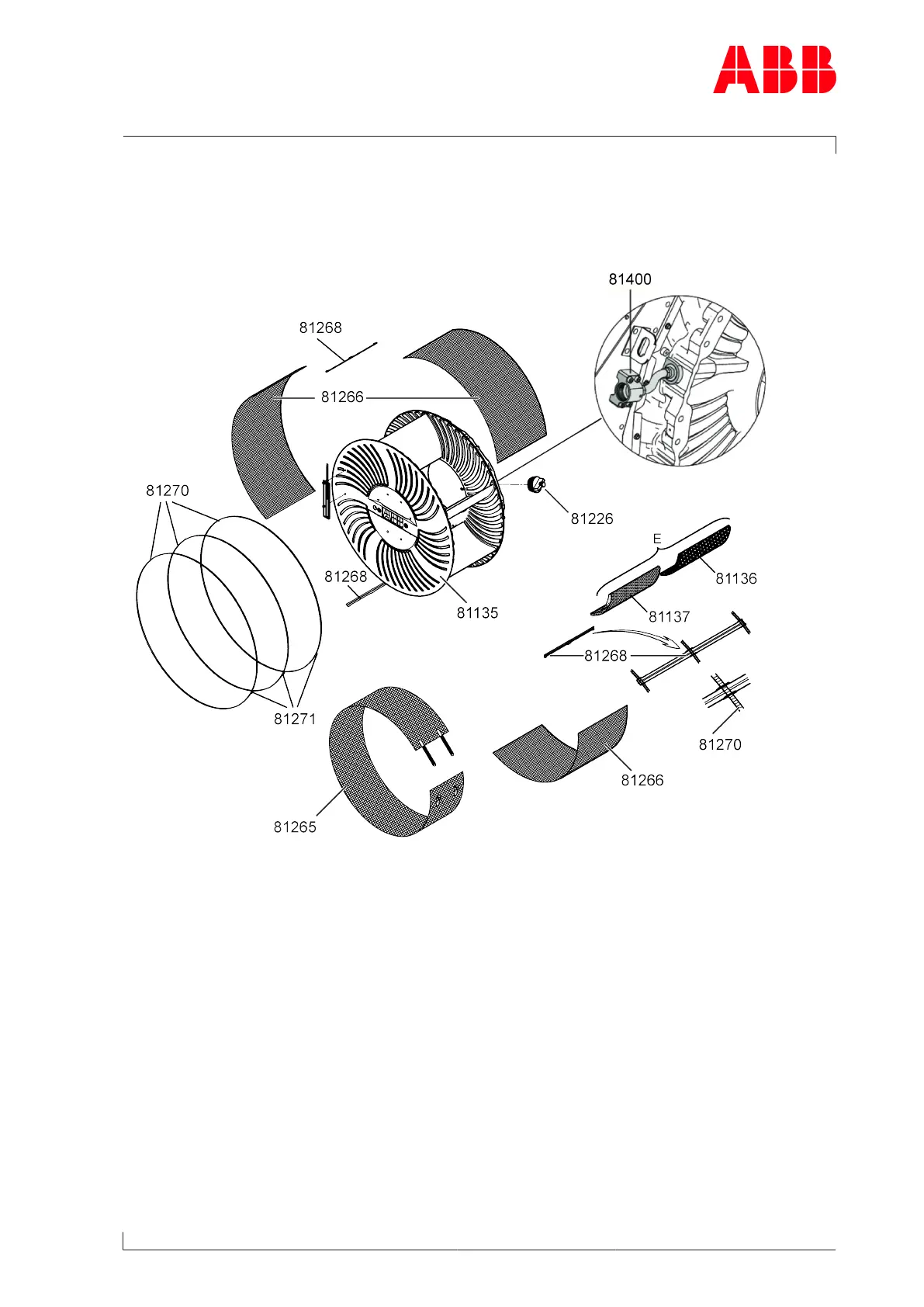

Fig.16: Layout and overview of filter silencer
81126 Lock 81266 Cover grid
81135 Body of filter silencer 81268 Connecting strip
81136 Absorption segment 81270 Tension band
81137 Sheet-metal covering 81271 Lock
81265 Filter ring (if present) 81400 Water connection
E Insert unit (absorption segment / sheet-metal covering fitted)
