Operation Manual / A100-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

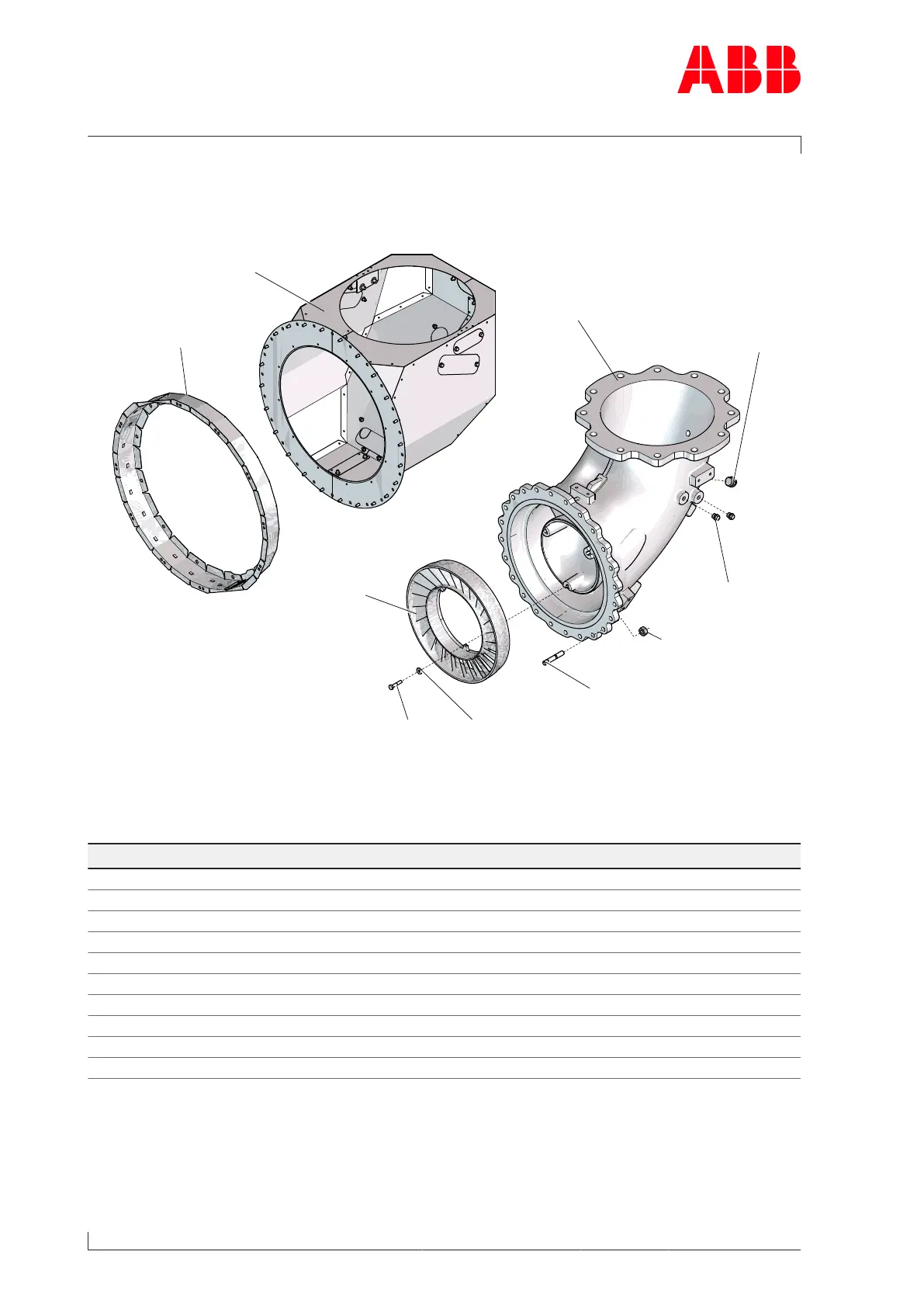

Gas inlet casing radial
51200
51074
51001
51215
51087
51075
56001
51086
56011*56014*
* = Available within the spare part set HZTL443256 Mod. D
Part no. Designation
51001 Gas inlet casing
51074 Screw plug
51075 Screw plug
51086 Threaded stud
51087 Hexagon nut
51200 Insulation
51215 Insulation segment
56001 Nozzle ring
56011* Washer
56014* Hexagon-head screw
Table58: Spare parts – Gas inlet casing radial
Page 128 / 141
