Installing the compressor casing

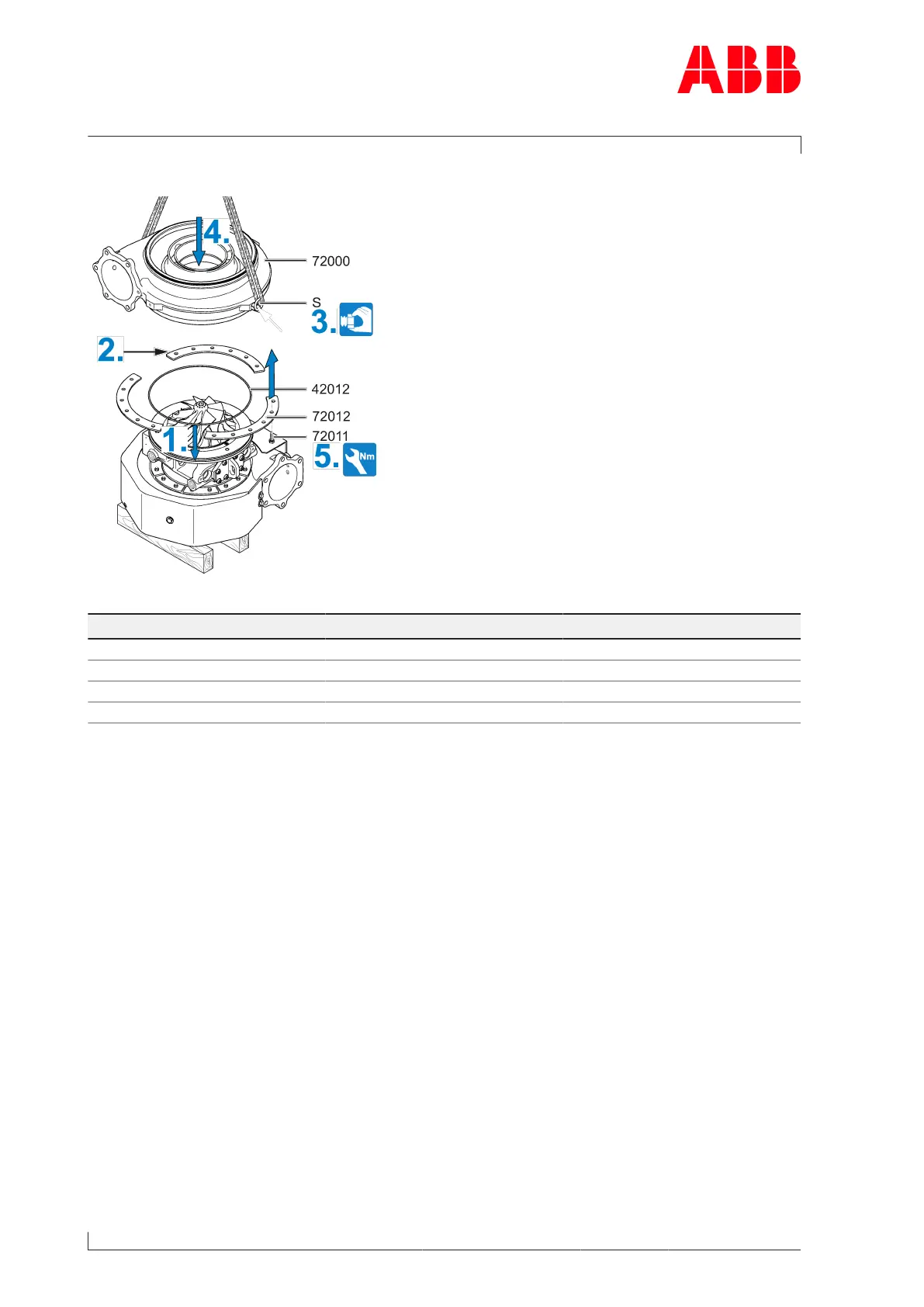

Fig.60: Installing the compressor casing
Product Size Tightening torque [Nm]
A130 M8 35
A135 M10 70
A140 M12 105
A145 M14 170
Table43: Tightening torque (72011)
1. Fit a new O-ring(42012).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Attach swivel lifting eyes(S) to compressor casing(72000). Secure lifting gear to the
swivel lifting eyes.
4. Install the compressor casing(72000).
5. Install the fastening strips(72012) with screws(72011). Observe the tightening torque. If
these screws do not have a Verbus Ripp® integrated, Verbus Ripp® washers(72010) must
also be fitted.
