9.21 Fitting wall insert

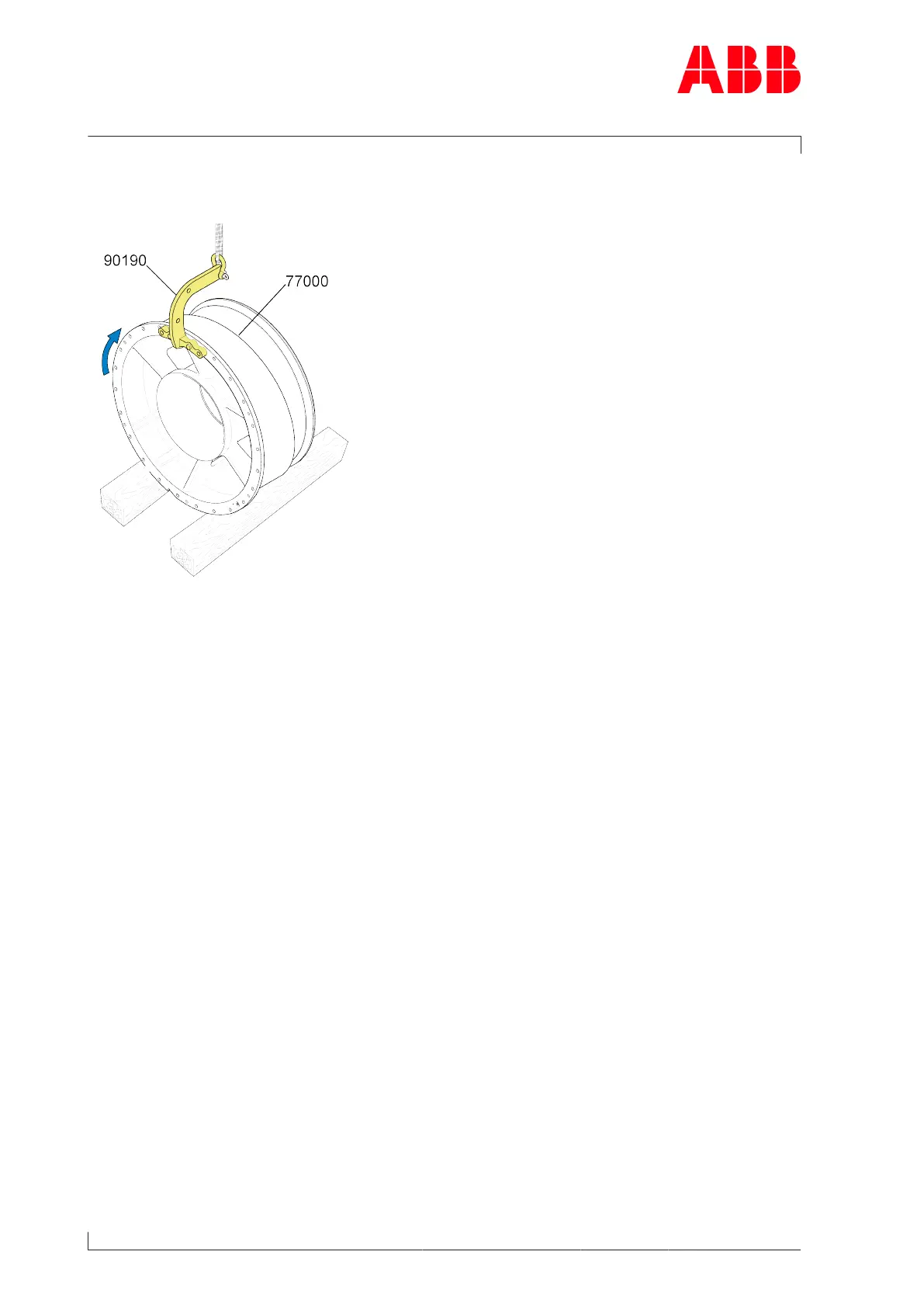

Fig.57: Positioning wall insert
u Carefully bring wall insert (77000) into vertical position with the lifting device (90190).
