ABB A165-L - Fitting the Nozzle Ring (≤ A175-L); Fig. 49: Fitting the Nozzle Ring (A175-L and Smaller); Table 34: Tightening Torque (56014)

Operation Manual / A100-L
9 Disassembly and assembly / 9.14 Fitting the nozzle ring (≤ A175-L)
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
9.14 Fitting the nozzle ring (
≤
A175-L)
u Coat the screw threads with high-temperature grease.

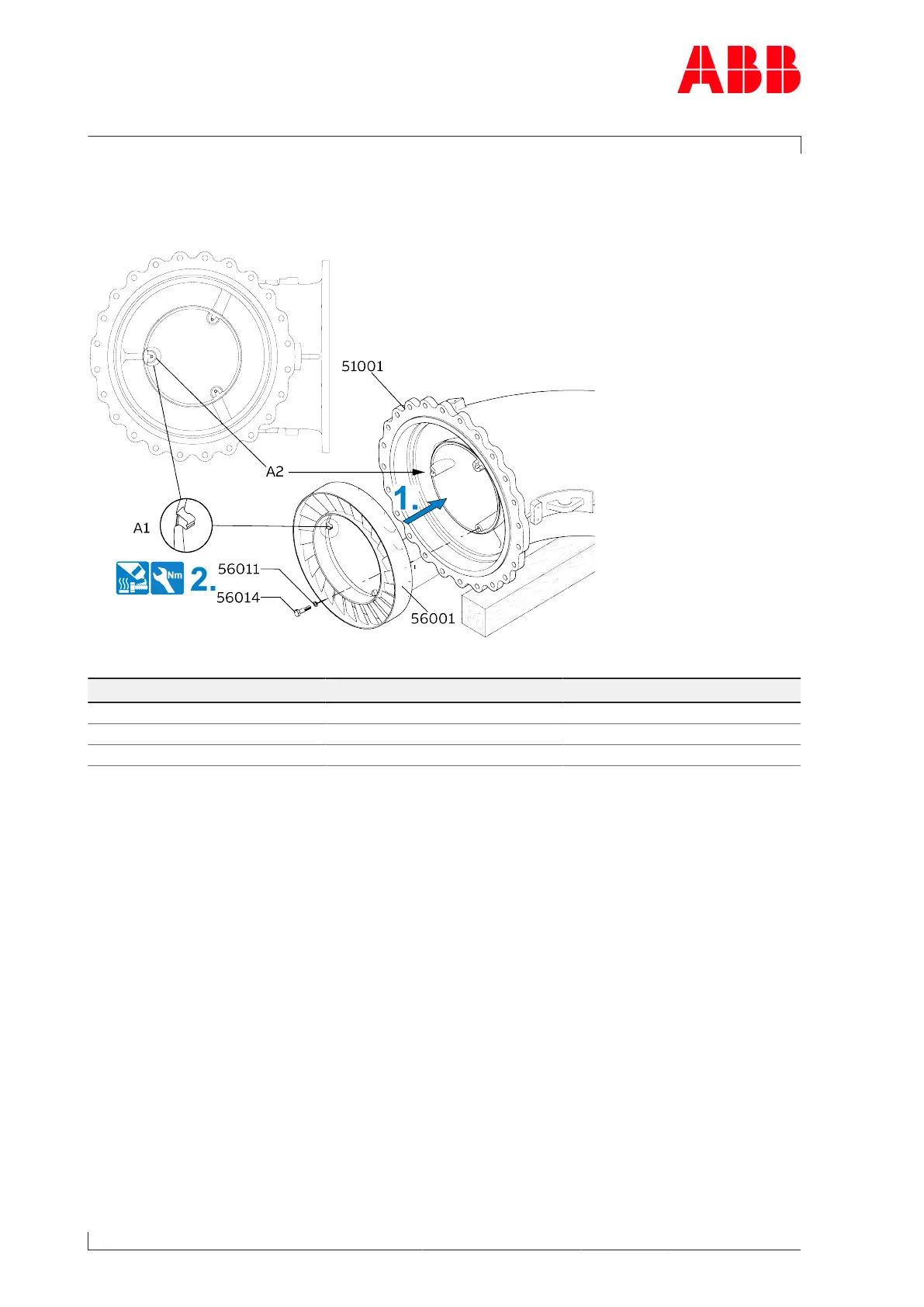

Fig.49: Fitting the nozzle ring (A175-L and smaller)
Product Size Tightening torque [Nm]
A165-L M10 35
A170-L M10 35
A175-L M10 35
Table34: Tightening torque (56014)
1. Align the notch (A
1
) with the flange connection (A
2
) and slide the nozzle ring(56001) into
the gas inlet casing (51001).
2. Fit screws (56014) with high-temperature grease and with washers (56011).
