ABB A255-L - Fitting Wall Insert; Fig. 59: Positioning Wall Insert

Operation Manual / A200-L
9 Disassembly and assembly / 9.20 Fitting wall insert
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.20 Fitting wall insert

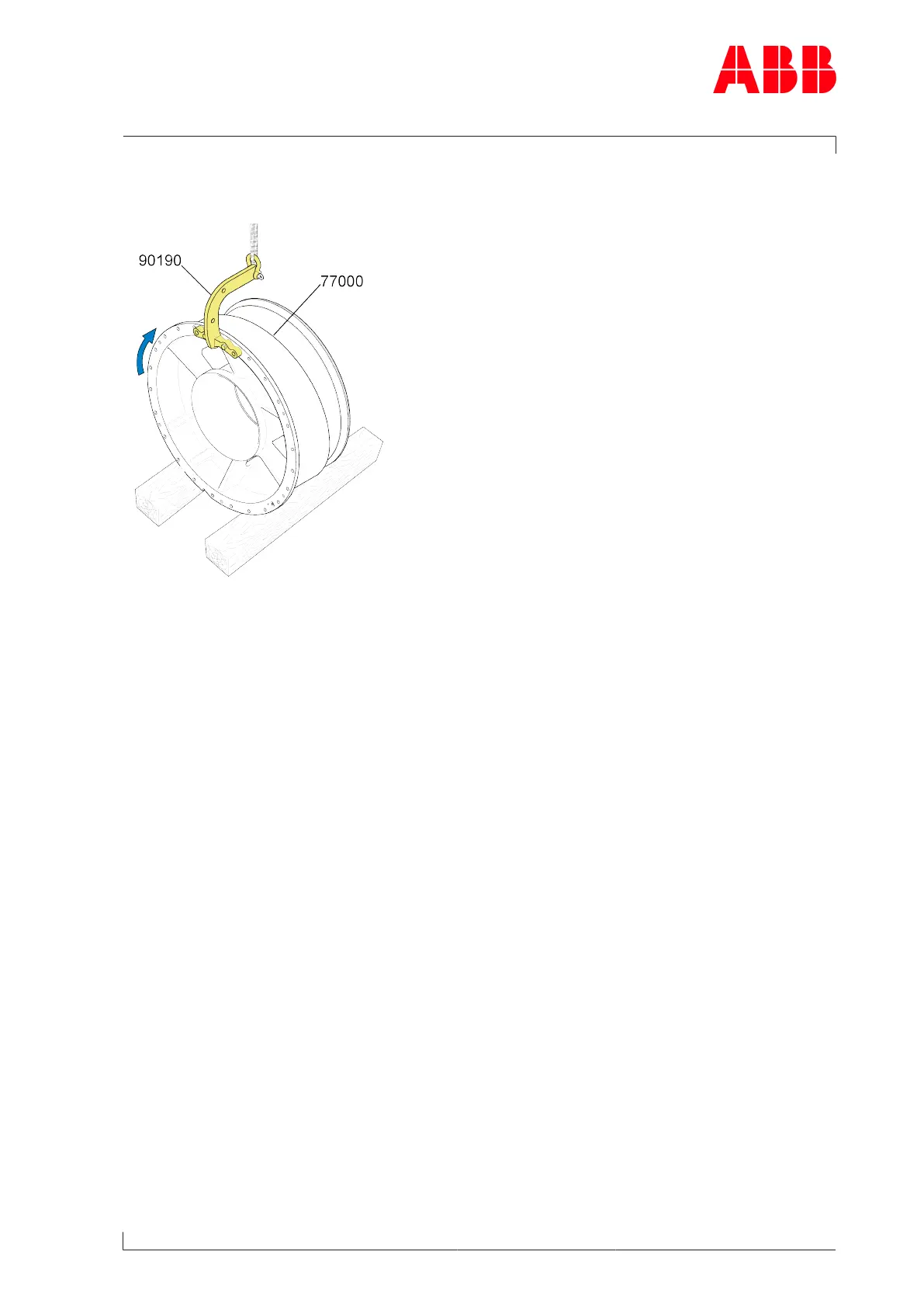

Fig.59: Positioning wall insert
u Carefully bring wall insert (77000) into vertical position with the lifting device (90190).
