Operation Manual / A200-L
9 Disassembly and assembly / 9.3 Weights of assemblies
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.3 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

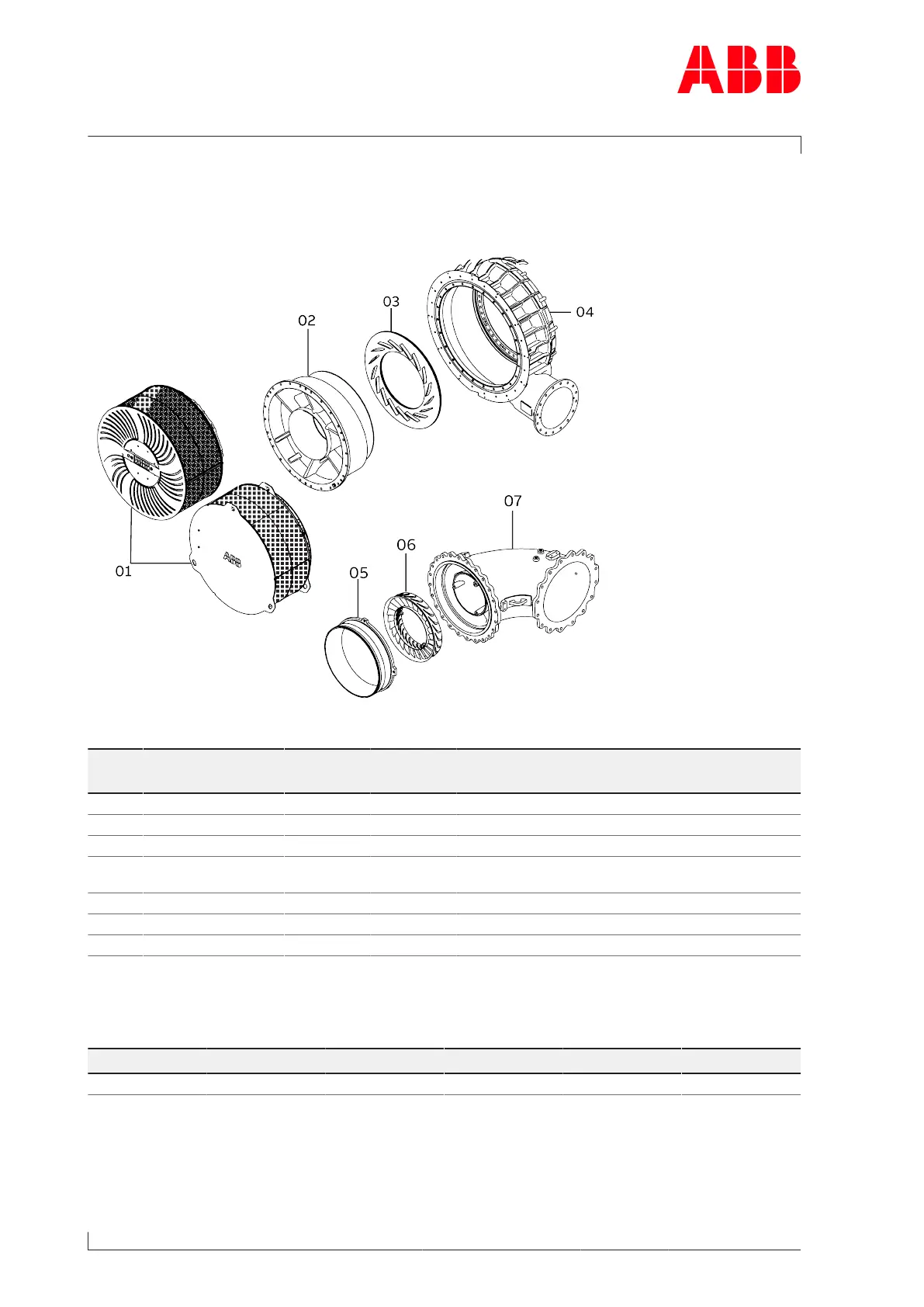

Fig.25: Weights of assemblies
Posi-
tion
Assembly A255-L A260-L A265-L A270-L A275-L A280-L
01 Filter silencer 180 230 350 470 850 1150
02 Wall insert 130 160 300 450 760 1070
03 Diffuser 25 25 40 60 110 160
04 Compressor cas-
ing
165 215 400 620 1030 1350
05 Cover ring 15 15 30 50 75 90
06 Nozzle ring 8 8 10 20 25 50
07 Gas inlet casing 135 135 180 240 380 520
Table28: Weights of assemblies [kg]
The total weight of the complete wall insert is made up of the wall insert and diffuser as-
semblies.
A255-L A260-L A265-L A270-L A275-L A280-L
155 185 330 510 870 1230
Table29: Weight of wall insert [kg]
Page 72 / 145
