Operation Manual / A200-L
9 Disassembly and assembly / 9.8 Dismantling the insulation (≤ A275-L)
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.8 Dismantling the insulation (
≤
A275-L)
NOTICE
Dry cleaning
The dry cleaning does not have to be removed to dismantle the insulation.

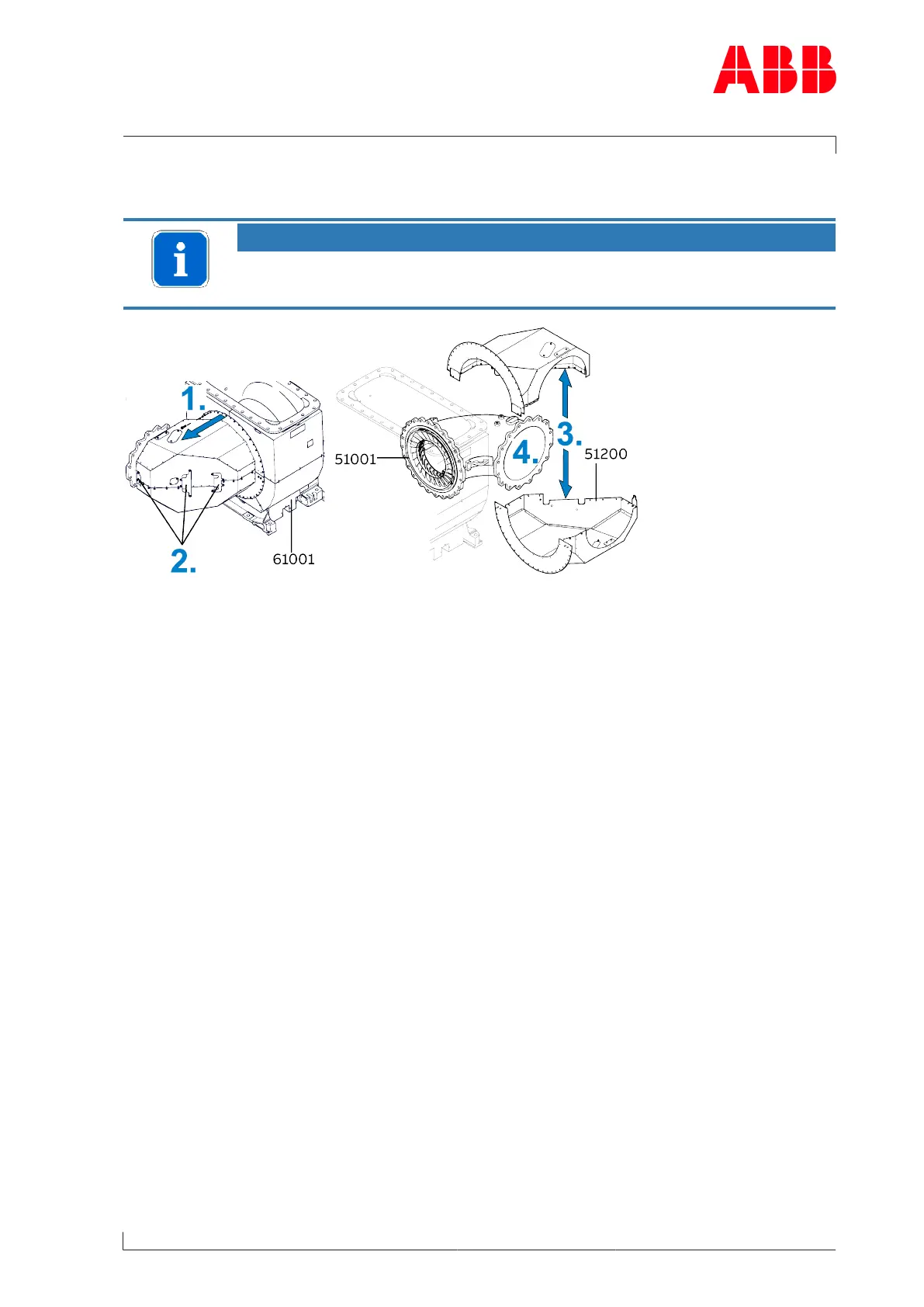

Fig.44: Removing the insulation (A275-L and smaller).
1. Loosen and remove screws of insulation jackets (51200) from gas outlet casing(61001).
2. Loosen and remove all connecting plates of insulation jackets.
3. Remove insulation jackets.
4. Detach flange connection between gas inlet casing (51001) and bellows.
Page 87 / 145
