9.17 Fitting the gas inlet casing (A280-L)

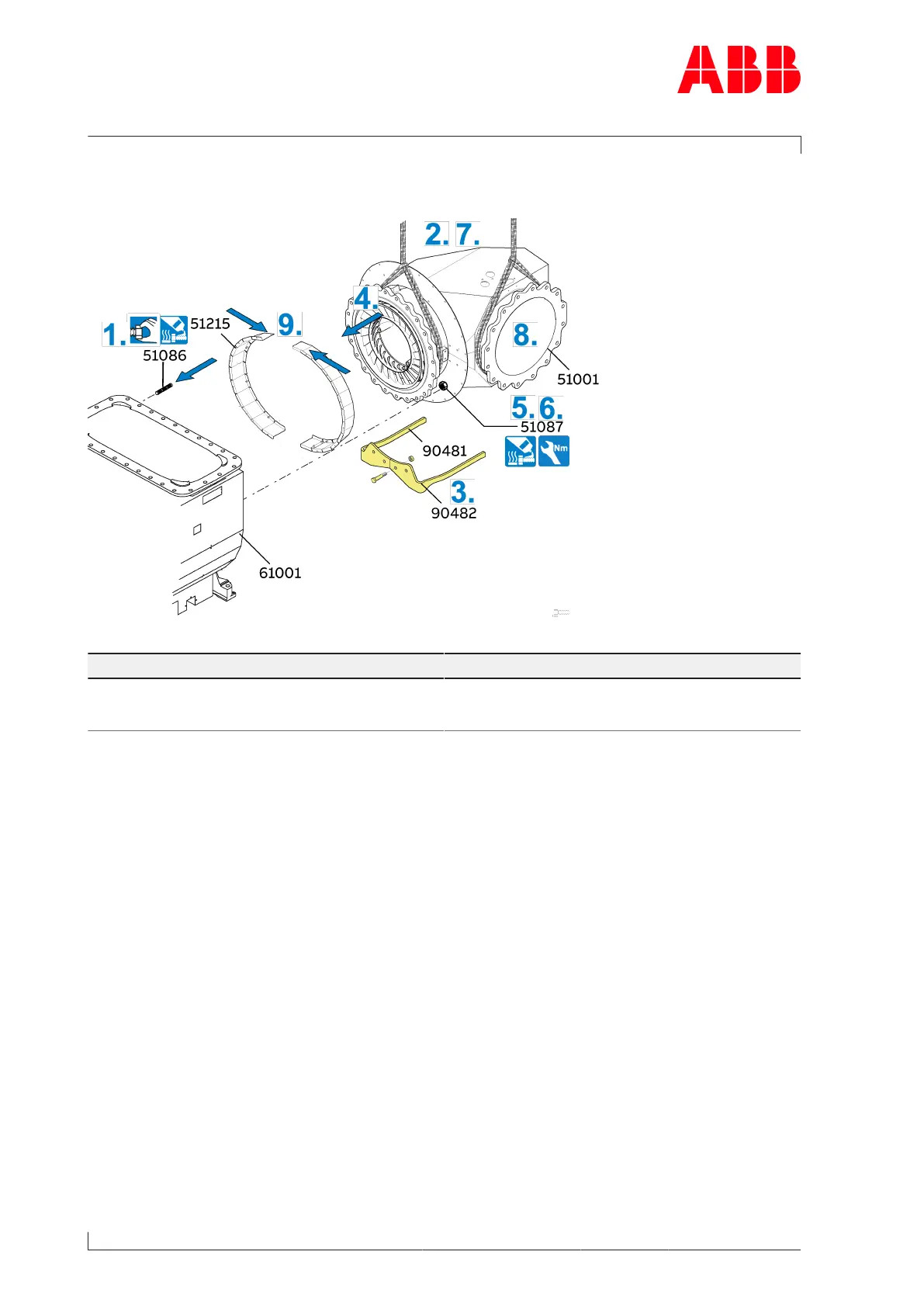

Fig.56: Fitting the gas inlet casing (A280-L)
Part number A280-L
51087 M24
80
1)
Nm
480Nm
Table37: Tightening torque(51087)
1) Pre-tightening torque of the screws
1. Coat threaded stud (51086) with high-temperature grease, screw in up to the stop in the
gas outlet casing (61001) and tighten hand-tight.
2. Loop around the gas inlet casing(51001) with the lifting gear and secure it to the crane.
3. Dismantle and remove supports(90481, 90482) from the gas inlet casing.
4. Push gas inlet casing over the threaded studs up to the gas outlet casing.
5. Coat two nuts with high-temperature grease and fix gas outlet casing in two opposite
positions.
6. Coat remaining nuts with high-temperature grease, fit and then tighten crosswise, ini-
tially to the pre-tightening torque and then to the tightening torque.
7. Remove the lifting gear.
8. Connect the flange of the gas inlet casing and the bellows.
9. Fit the insulation segments(51215).
