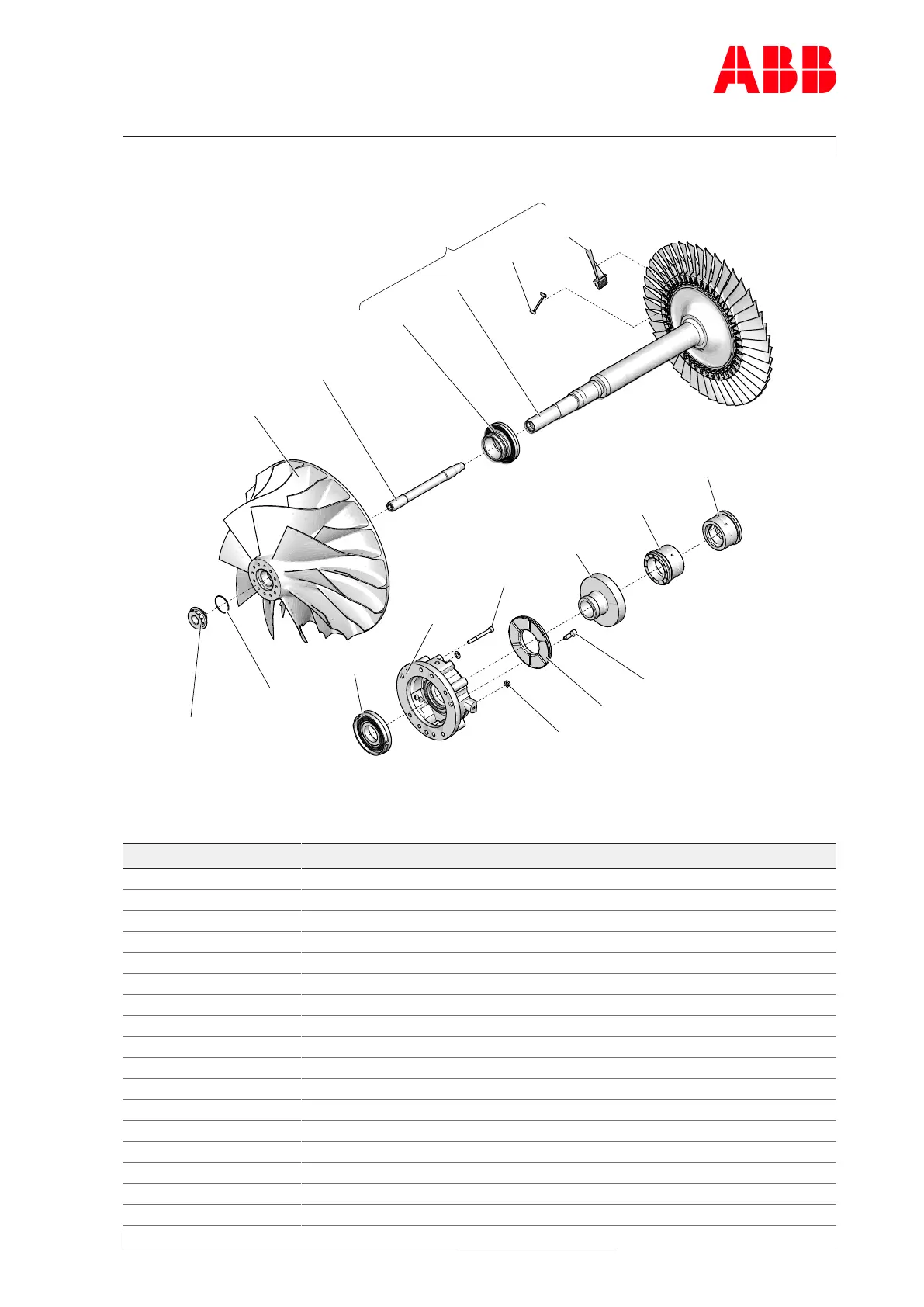

Rotor and bearing parts
21000
25011* **
42320*
29000
21005*
21001
21010
32102*
32101*
25008
32159*
32001*
32105*
25000
32174*
32106*
25009
32109*
* = Available within the spare part set HZTL443574 Mod. A
** = only without spinner nose cone
Part no. Designation
21000 Turbine
21001 Turbine unbladed
21005* Locking plate
21010 Labyrinth sleeve
25000 Compressor wheel
25008 Threaded stud
25009 Ring nut
25011* ** O-ring
29000 Turbine blade
32001* Thrust bearing
32101* Radial bearing
32102* Radial bearing
32105* Floating disc
32106* Axial bearing
32109* Sealing disc
32159* Safety screw
32174* O-ring
