ABB AC 800M

Section 5 Operator Interface Faceplates
3BSE042835-600 73

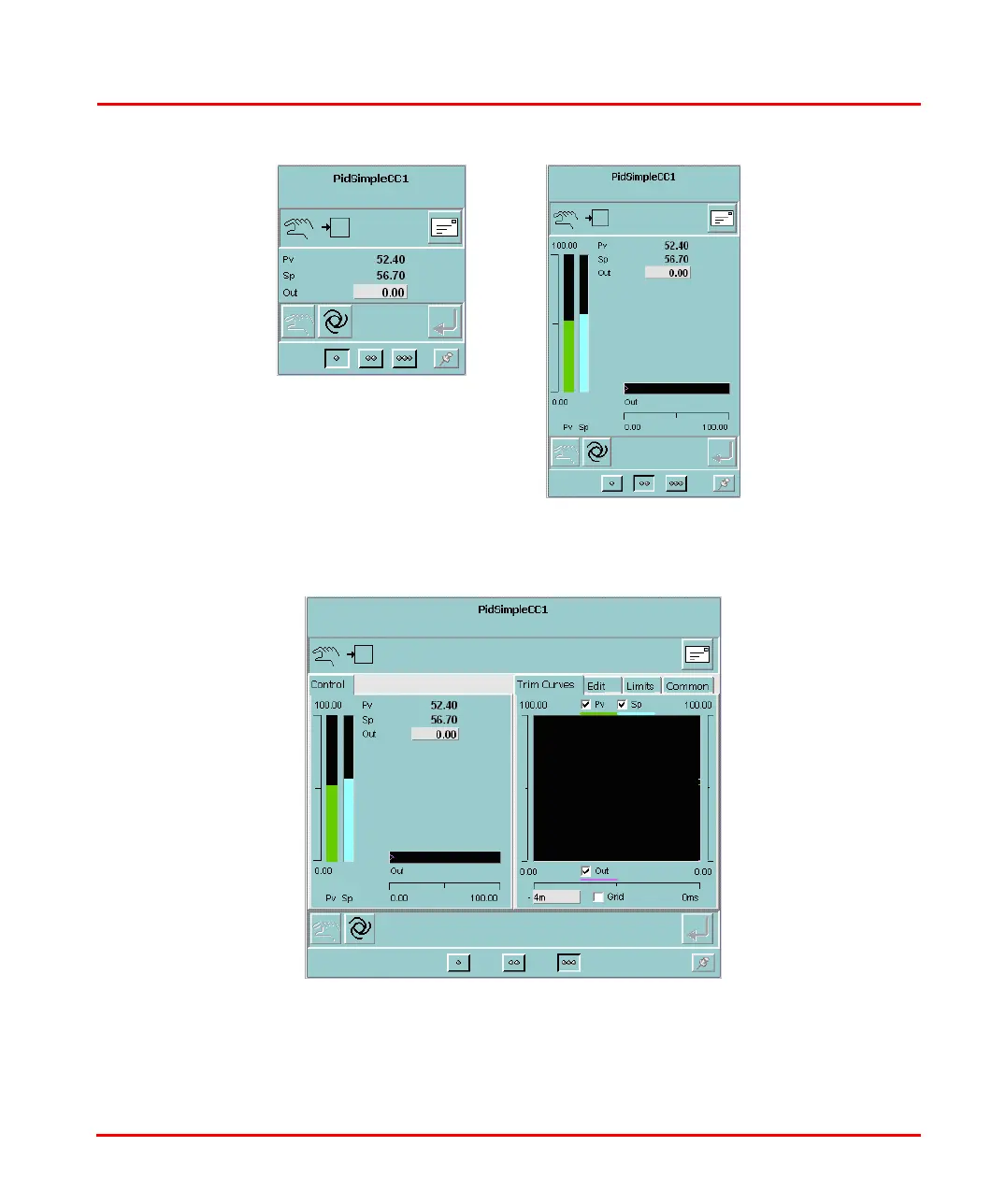

Figure 18. Example of (left) Reduced faceplate and Normal faceplate.
The Extended view is optional and should be used for additional information that
does not fit in a Normal view and is not so often used during normal operation.
Figure 19. Example of Extended faceplate
