Display Elements
The Display Elements are used for graphic displays. The following Display
Elements aspects are mandatory for objects with Operator Workplace graphics:
• Reduced Icon
•Icon
•Tag

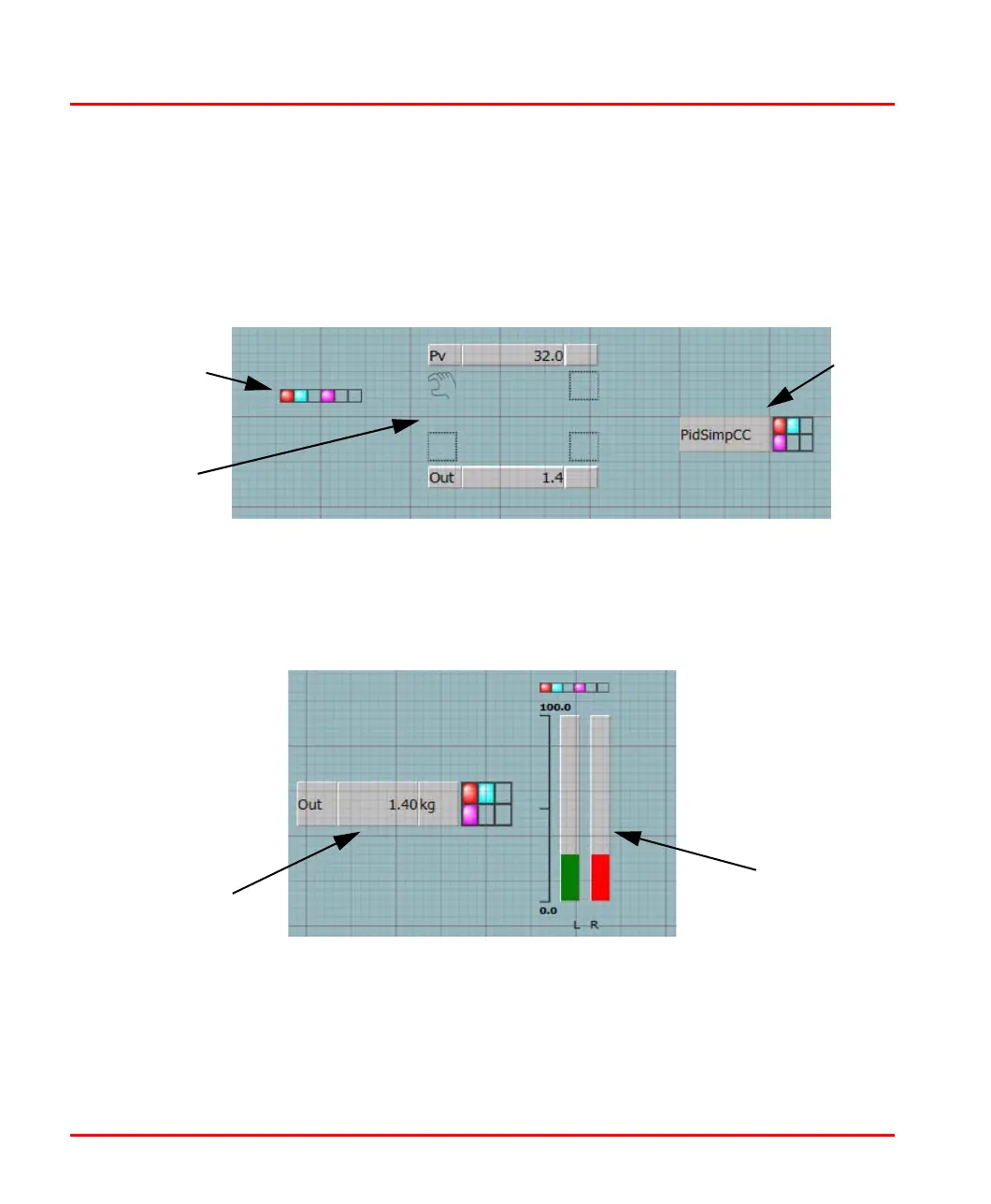

Figure 20. The mandatory display elements; (left) Reduced Icon, (middle) Icon and
(right) Tag.
In addition, the following Display Element
aspects can be used if suitable:
•Value
•Bar
Figure 21. The additional display elements; (left) Value and (right) Bar.
The Display Element Value and Display Element Ba
r aspects should be used when
the object has one or more numerical values that can be considered as significant for
the function, for example the output from a PID controller.
