Section 1 Introduction Physical Layer Requirements
9ARD000015-600 15
Physical Layer Requirements
Physical layer requirements describes the usage of a typical integrated transceiver in
a DeviceNet product. All transceivers are not the same. Ensure that the transceiver
allows the device to meet the following specification for the DeviceNet physical
layer:
• General Physical Layer Requirements.
• Transmitter Requirements.
• Receiver Requirements.

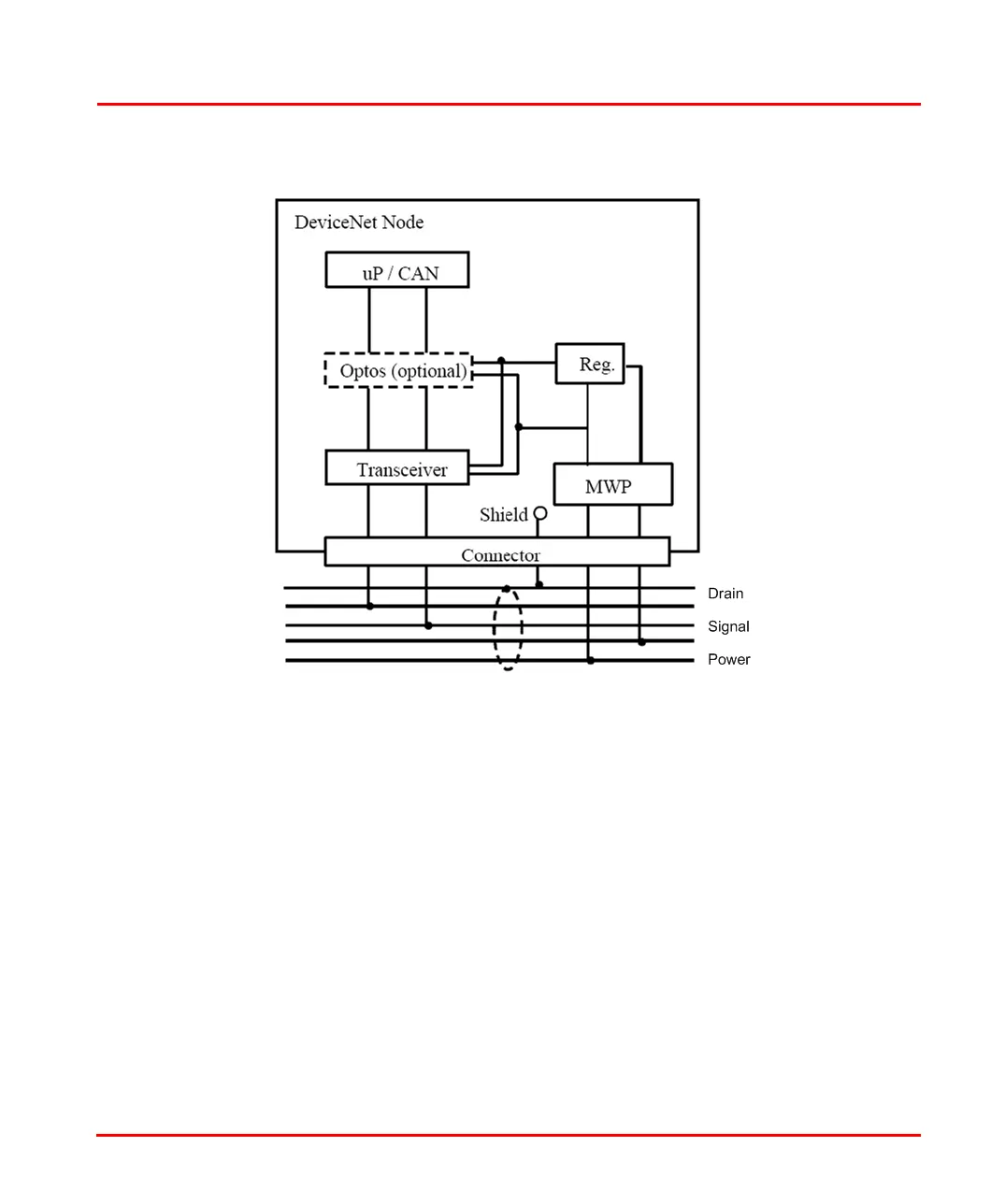

Figure 4. Physical Layer Block Diagram
