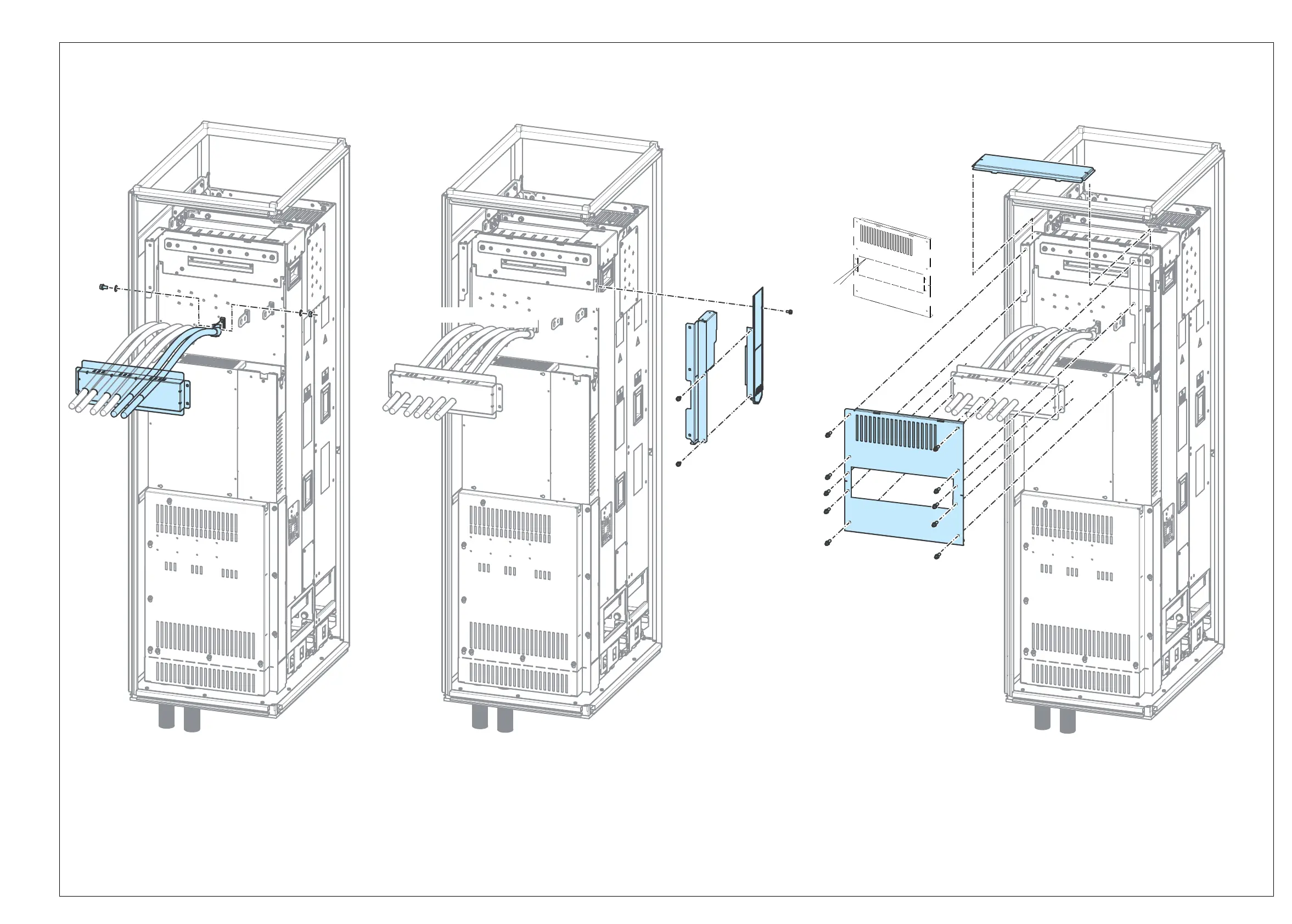

Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet 19
Combi screw
M4×10 Torx T20
2N·m
Combi screw
M4×10 Torx
T20 2 N·m
Combi screw
M6×20 Torx T25
2N·m
L3/W1 L2/V1
L1/U1
UDC+
UDC-
+B051
+B051
+B051
