ABB ACQ580 Quick Start Up Guide

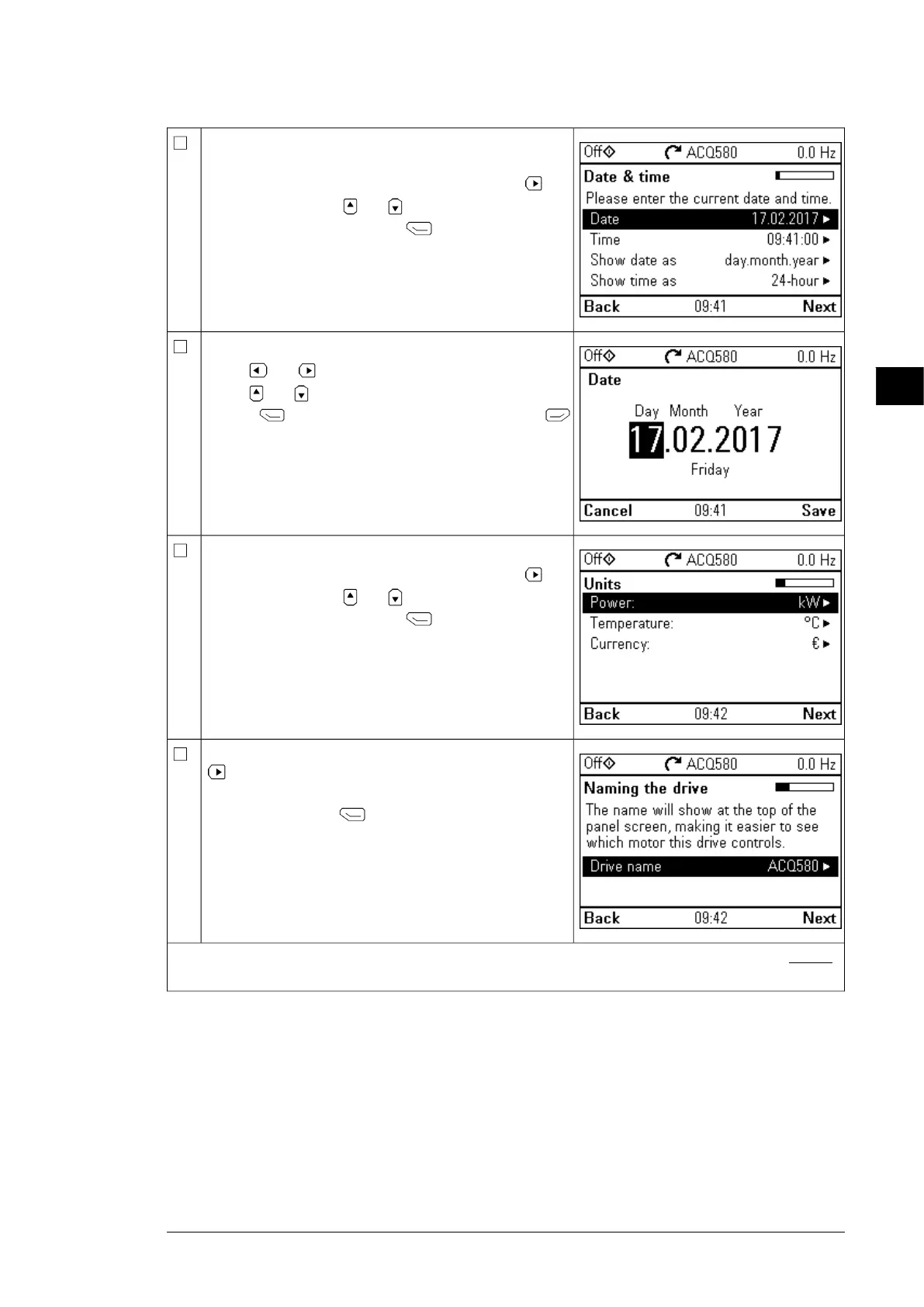

Set the date and time as well as date and time display
formats.
•
Go to the edit view of a selected row by pressing .
•
Scroll the view with and .
Go to the next view by pressing (Next).
To change a value in an edit view:
•
Use and to move the cursor left and right.
•
Use and to change the value.
•
Press (Save) to accept the new setting, or press
(Cancel) to go back to the previous view without making
changes.
Change the units shown on the panel if needed.
•
Go to the edit view of a selected row by pressing .
•
Scroll the view with and .
Go to the next view by pressing (Next).
To give the drive a name that will be shown at the top, press
.
If you do not want to change the default name (ACQ580),
continue by pressing (Next).
For information on editing text, see ACQ580 firmware
manual (3AXD50000035867 [English]).
Hint:Name the drive, for example, Pump 1.
Refer to the motor nameplate for the following nominal value settings of the motor. Enter the values exactly
as shown on the motor nameplate.
EN – Quick start-up guide 7
