ABB ACQ580 Quick Start Up Guide

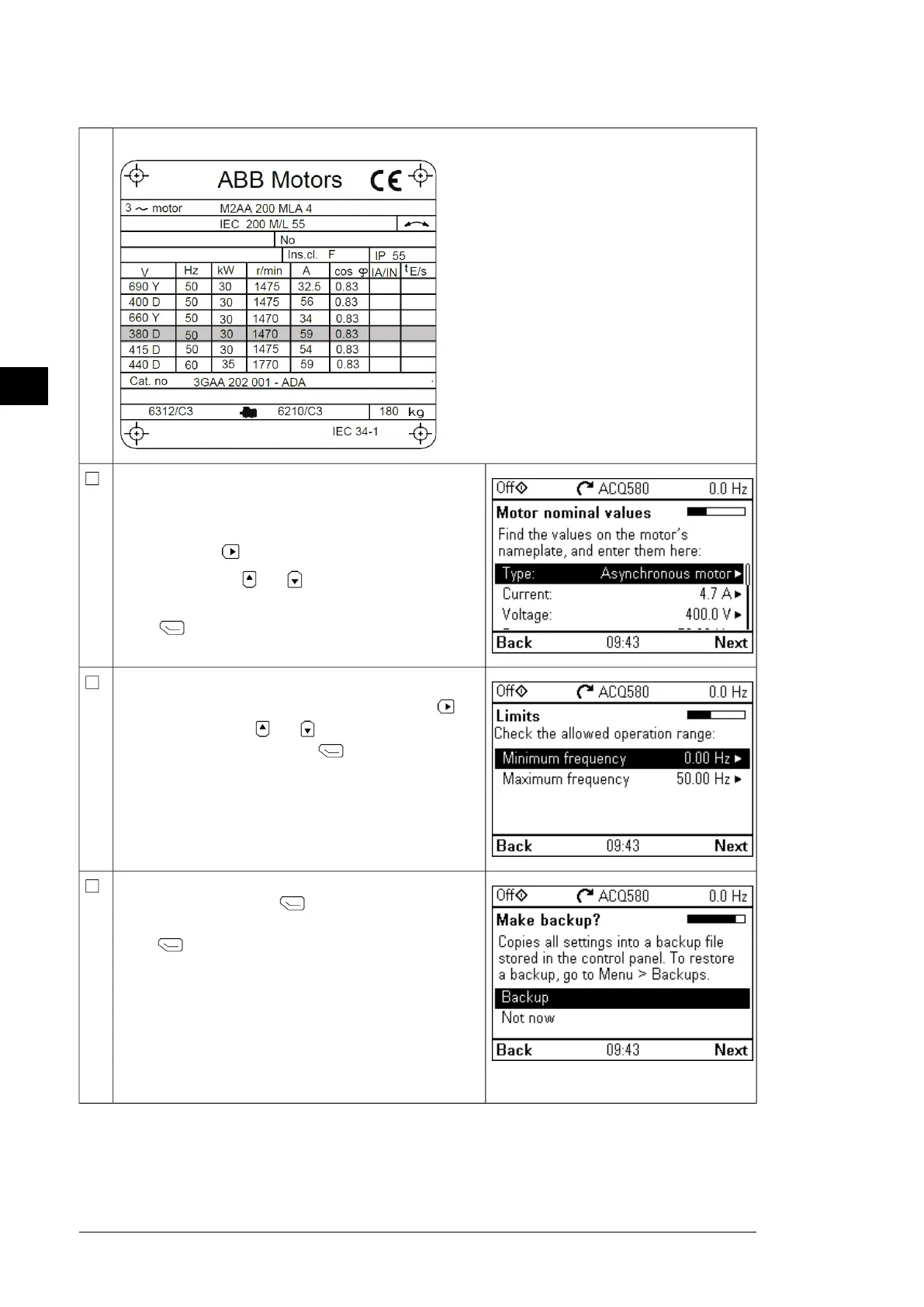

Example of a nameplate of an induction (asynchronous) motor:
Check that the motor data is correct. Values are predefined
on the basis of the drive power but you should verify that
they correspond to the motor.
Start with the motor type. Go to the edit view of a selected
row by pressing .
Scroll the view with and .
Motor nominal cos Φ and nominal torque are optional.
Press (Next) to continue.
Adjust the limits according to your needs.
•
Go to the edit view of a selected row by pressing .
•
Scroll the view with and .
Go to the next view by pressing (Next)
If you want to make a backup of the settings made so far,
select Backup and press (Next).
If you do not want to make a backup, select Not now and
press (Next).
Note:
The control panel has space for one automatic backup. Drive
creates an automatic backup two hours after the last para-
meter change.The panel checks for additional parameter
changes at intervals of 24 hours. The new backup will over-
write the previous backup only when the last change has
passed two hours.
8 EN – Quick start-up guide
EN
CS
DE
ES
FI
FR
IT
PT
RU
SV
TR

ABB ACQ580 Specifications

General

Protection class	IP21, IP55
Ambient temperature range	-15°C to +50°C
Communication protocols	Modbus RTU
Mounting type	Wall mounted
Control method	vector control
Frequency range	0 Hz to 500 Hz
Protection features	Overcurrent, overvoltage, undervoltage, short circuit
