Appendix A – ACS/ACC/ACP 601 Technical Data
A-8 ACS/ACC/ACP 601 Frequency Converters
Note: Fuses from other manufacturers can be used if they meet the ratings given in the table. Only
ultra rapid fuses guarantee the proper protection for the rectifier semiconductors. The fuses
recommended in the table are UL recognised.
1)
200 A and 250 A Bussmann fuses can be used with ACx 601-0070-3 and ACx 601-0100-5 units.

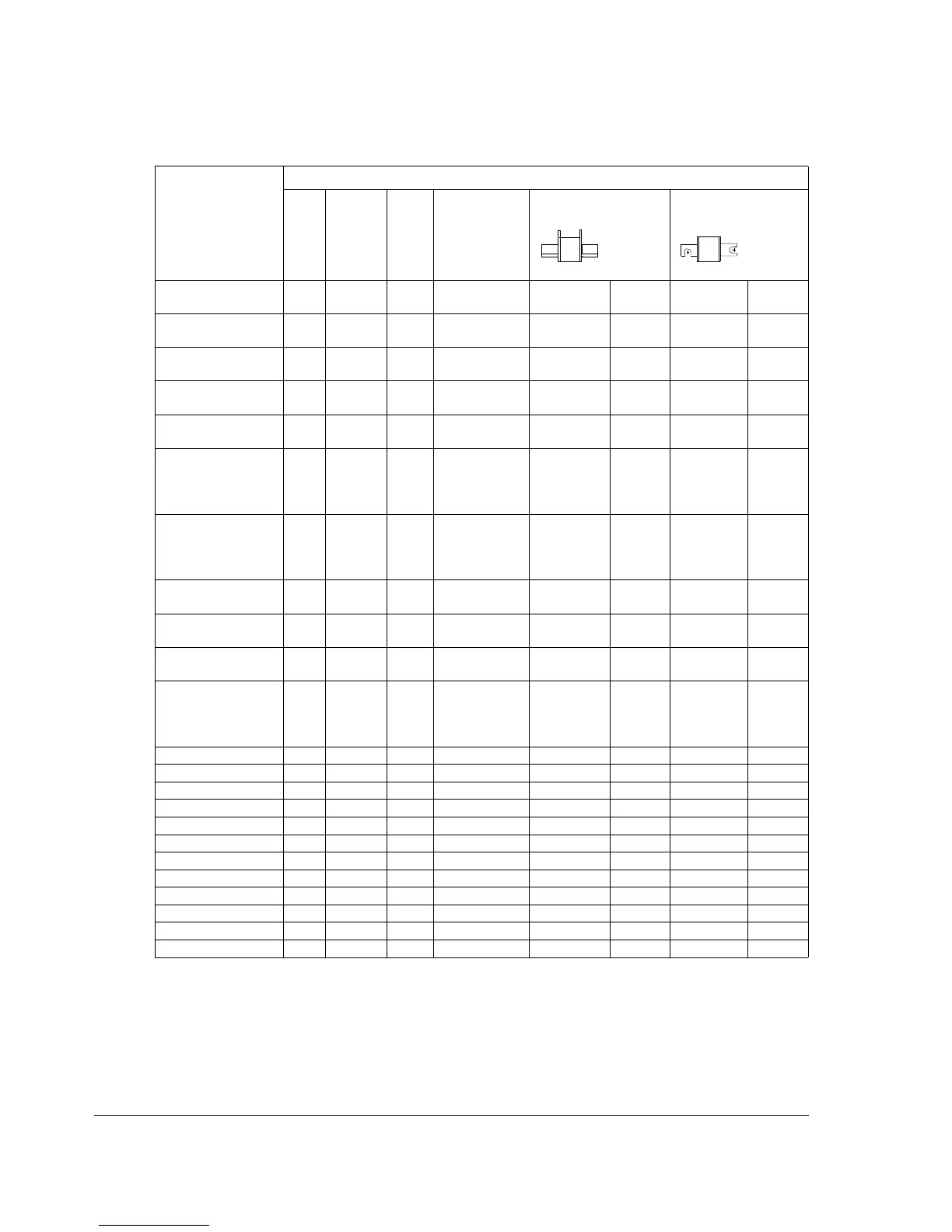

Fuses
ACx 601 Type A A
2
s V Manufacturer
Type
DIN 43620
Size
Type
DIN 43653
Size
ACx 601-0005-3
ACx 601-0006-5
16 48 660 Bussmann 170M1559 000 170M1359 000/80
ACx 601-0006-3
ACx 601-0009-5
16 48 660 Bussmann 170M1559 000 170M1359 000/80
ACx 601-0009-3
ACx 601-0011-5
25 130 660 Bussmann 170M1561 000 170M1361 000/80
ACx 601-0011-3
ACx 601-0016-5
32 270 660 Bussmann 170M1562 000 170M1362 000/80
ACx 601-0016-3
ACx 601-0020-5
40 460 660 Bussmann 170M1563 000 170M1363 000/80
ACx 601-0020-3
ACx 601-0025-5
ACx 601-0025-3
ACx 601-0030-5
63 1450 660 Bussmann 170M1565 000 170M1365 000/80
ACx 601-0030-3
ACx 601-0040-5
ACx 601-0040-3
ACx 601-0050-5
80 1250 660 Bussmann 170M3811 1* 170M3011 1*/80
ACx 601-0050-3
ACx 601-0060-5
125 3700 660 Bussmann 170M3813 1* 170M3013 1*/80
ACx 601-0060-3
ACx 601-0070-5
160 7500 660 Bussmann 170M3814 1* 170M3014 1*/80
ACx 601-0070-3
1)
ACx 601-0100-5
1)
200/
250
28000/
28500
660 Bussmann 170M1570/
170M3816
000/
1*
170M1370/
170M3016
000/80 /
1*
ACx 601-0100-3
ACx 601-0120-5
ACx 601-0120-3
ACx 601-0140-5
400 105000 660 Bussmann 170M3819 1* 170M3019 1*/80
ACx 601-0009-6 32 270 660 Bussmann 170M1562 000 170M1362 000/80
ACx 601-0011-6 32 270 660 Bussmann 170M1562 000 170M1362 000/80
ACx 601-0016-6 32 270 660 Bussmann 170M1562 000 170M1362 000/80
ACx 601-0020-6 32 270 660 Bussmann 170M1562 000 170M1362 000/80
ACx 601-0025-6 40 460 660 Bussmann 170M1563 000 170M1363 000/80
ACx 601-0030-6 50 770 660 Bussmann 170M1564 000 170M1364 000/80
ACx 601-0040-6 50 770 660 Bussmann 170M1564 000 170M1364 000/80
ACx 601-0050-6 63 1450 660 Bussmann 170M1565 000 170M1365 000/80
ACx 601-0060-6 100 4650 660 Bussmann 170M1567 000 170M1367 000/80
ACx 601-0070-6 100 4650 660 Bussmann 170M1567 000 170M1367 000/80
ACx 601-0100-6 125 8500 660 Bussmann 170M1568 000 170M1368 000/80
ACx 601-0120-6 200 28000 660 Bussmann 170M1570 000 170M1370 000/80
