ABB ACS2000 DFE - 4.4 Lifting and Transportation

62 ACS2000 DFE UM 3BHS360367 ZAB E01 REV. K
—
4.4 Lifting and transportation
The following instructions should be observed at all times during
transportation of the drive.
4.4.1 General notes on transportation
• Drive components can be damaged during
transportation. Therefore, transport the cabi-
net in upright position.
• Keep the doors closed to prevent dirt entering.
Metallic dust in particular can cause damage
and failure when the drive is energized.
4.4.2 Using a crane
• Use lifting equipment (eg, web slings, chain
slings, round slings, safety hooks, shackles)
that corresponds to the weight of the cabinet.
• Attach the slings to the lifting brackets of the
base frame (4-1: 1).
Attention! Use appropriate safety hooks or
shackles to attach a sling (4-1: 2). Do not pass a
sling through the hole!
If necessary to ease lifting, temporarily remove
the prominent air intake panels (4-1: 3).
• Verify that the slope angle (4-1: 4) corresponds
to the weight of the cabinet. Observe the center
of gravity.
• Lift the cabinet slowly and steadily to the
required clearance height maintaining the cabi-
net in upright position.
• Check the horizontal position of the cabinet.
Reposition the slings if necessary.
!
For further information, see
• Mechanical drawings provide details
on dimensions, weight, and of center
of gravity of the cabinet.
• 10.6 Corrective maintenance provides
instructions if the door of the DFE INU
compartment cannot be opened.
—
References
—

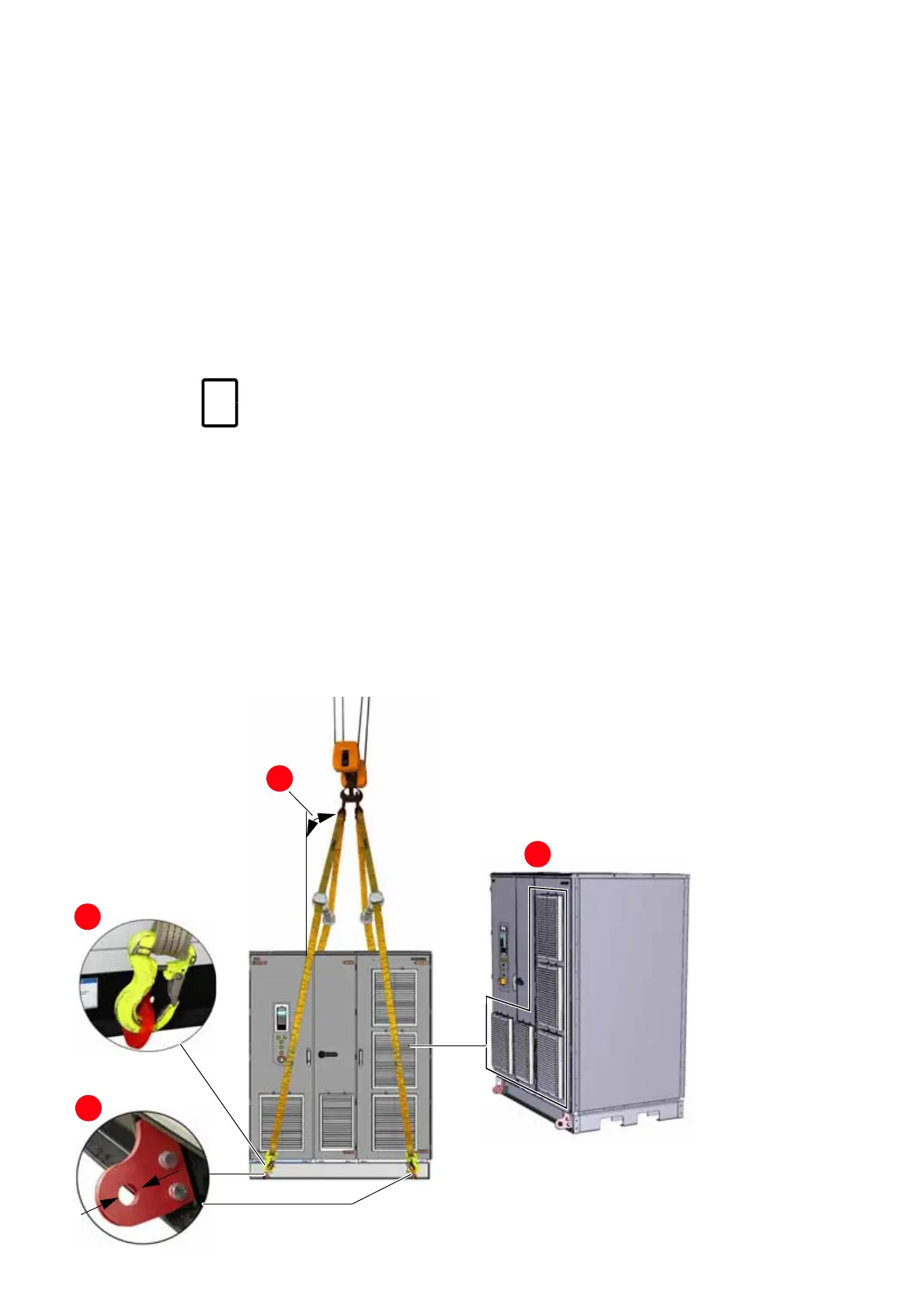

4-1 Transporting the
cabinet by crane
—
4-1
4
2
m
m
1
.
6
5
i
n
1
2
3
4
