4.4.3 Using a forklift (only ACS2000 with 1 MVA
output power)
• Only transport the cabinet with the short side
facing the driving direction.
When transporting the drive cabinet, the rec-
ommended position of the forklift is on the
right short side of the cabinet (4-2). This is the
cabinet side with the heaviest drive compo-
nents.
• Use forks with sufficient length to ensure stable
transportation and to prevent tipping.
When the forklift is positioned on the left
(4-2: 1), the forks must be at least as long as the
cabinet.
When the forklift is positioned on the right
(4-2: 2), the forks must be at least as long as
indicated by the arrow.
Insert the fork fully into the cabinet’s forklift
pockets.
4.4.4 Using hand pallet trucks
• Choose the load capacity and the fork length of
the pallet truck according to the following
table.
• Place the pallet truck on the left or on the right
of the cabinet.
• Insert the forks fully into the cabinet’s forklift
pockets.
—
References
—

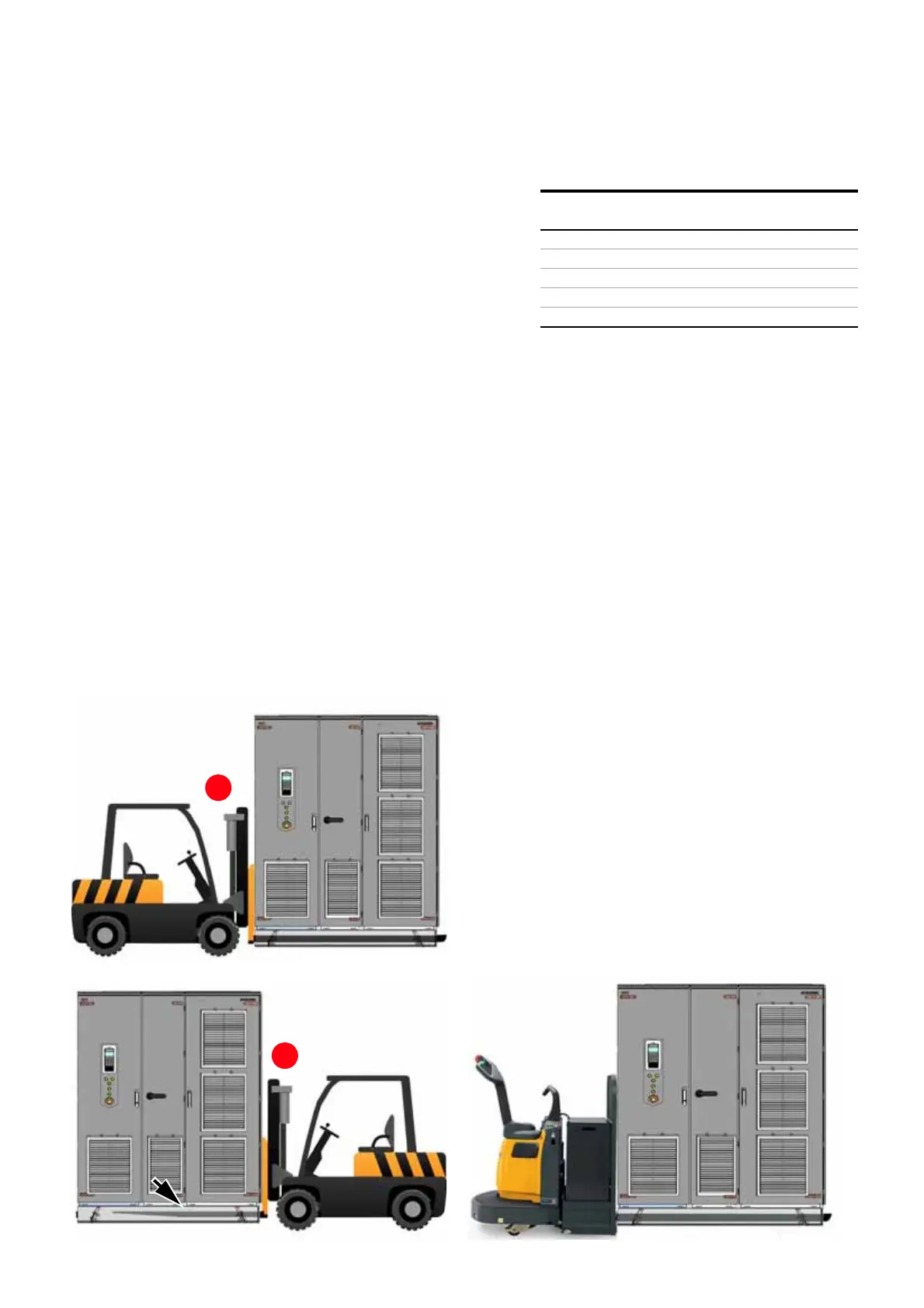

4-2 Recommended
forklift position
—
4-3 Using one pallet truck
—
4-2
1
2
—
4-3
3
Transformer Drive
Length (m) Weight (kg) Length (m) Weight (kg)
1.6 1650 1.7 1500
1.9 3070 2.2 1800
2.2 4800 2.5 2100
2.4 5600 2.5 2240
2.6 6100 - -
