ABB ACS320 series - How to perform a manual start-up

26 Start-up and control with I/O

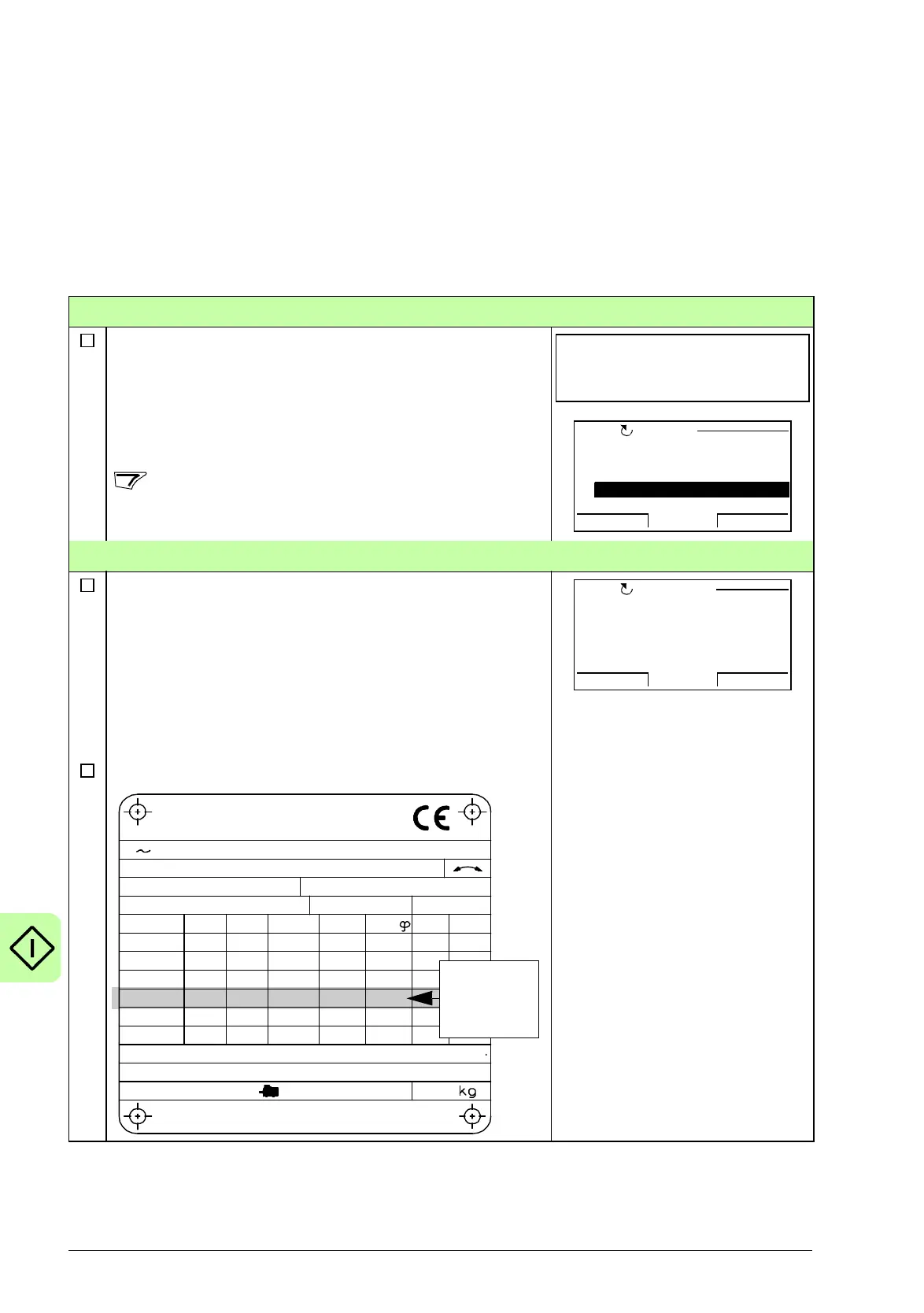

 How to perform a manual start-up
For the manual start-up, you can use the Basic control panel or the Advanced HVAC
control panel. The instructions below are valid for both control panels, but the
displays shown are the Basic control panel displays, unless the instruction applies to
the Advanced HVAC control panel only.
Before you start, make sure that you have the motor nameplate data on hand.
POWER-UP
Apply input power.
The Basic control panel powers up into the
Output mode.
The Advanced HVAC control panel asks if you
want to run the Start-up assistant. If you press
, the Start-up assistant is not run, and you can
continue with manual start-up in a similar manner
as described below for the Basic control panel.
MANUAL ENTRY OF START-UP DATA (parameter group 99)
If you have an Advanced HVAC control panel,
select the language (the Basic control panel does
not support languages). See parameter 9901 for
the values of the available language alternatives.
For instructions on how to set parameters with the
Advanced HVAC control panel, see chapter Control
panels, section Advanced HVAC control panel in
ACS320 user’s manual (3AUA0000062599 [English]).
Enter the motor data from the motor nameplate:
Note: Set the motor data to
exactly the same value as on
the motor nameplate. For
example, if the nominal motor
speed is 1470 rpm on the
nameplate, setting the value of
parameter 9908 MOTOR NOM
SPEED to 1500 rpm results in
the wrong operation of the
drive.
