the drives control panel. The control panel will have to be stored external to the
drive.
7.1.1 Remove the control panel access cover.
7.1.2 Remove the control panel from the cradle.
7.1.3 Place a blank label over the Power and Fault designators.
7.1.4 Plug CAT 5 cable into the drives RJ45 connector.
7.1.5 Feed the CAT 5 cable through the control panel access hole in the
UL Type 4X front cover.
7.1.6 Place UL Type 4X front cover and gasket on the ACS355 UL
Type

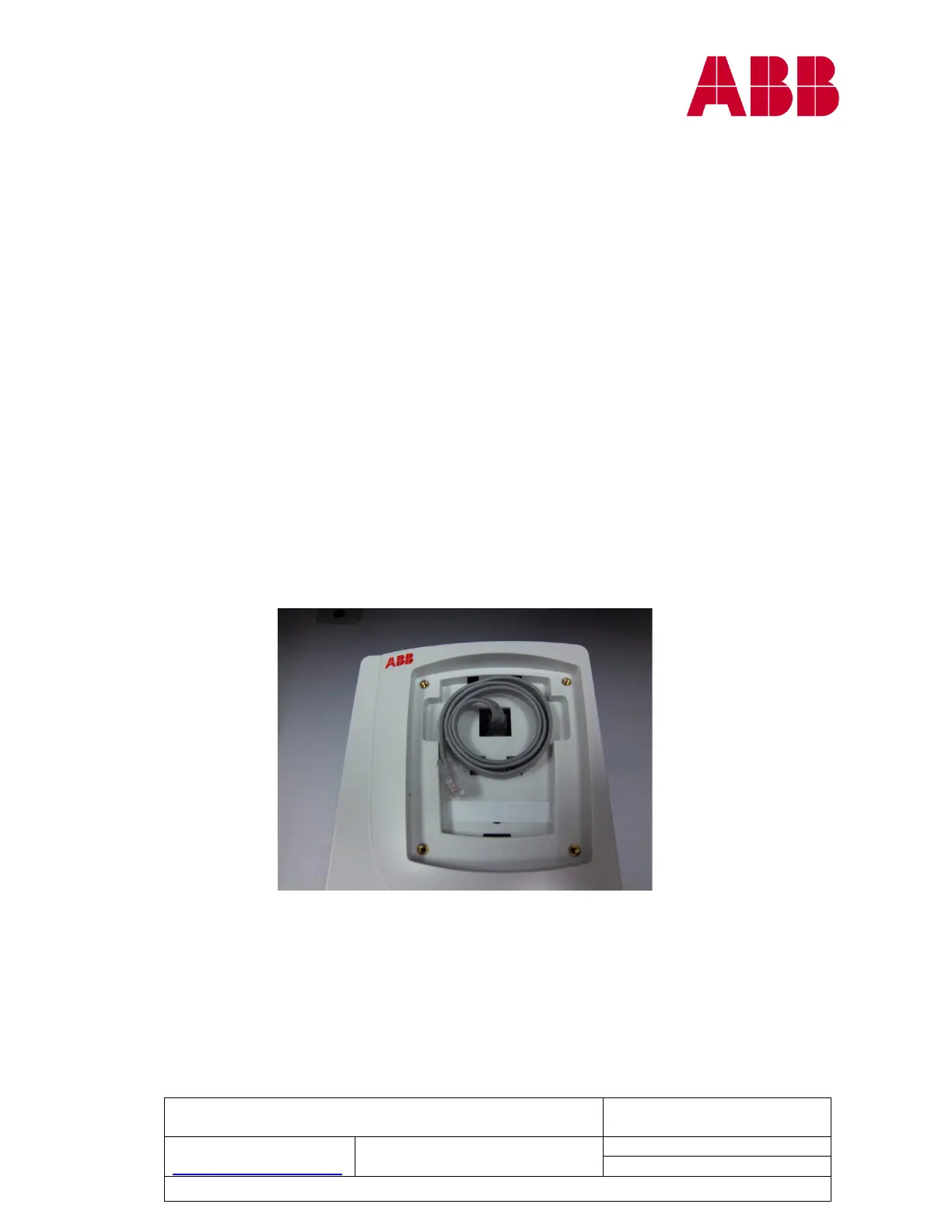

7.1.7 Neatly coil the CAT5 cable in the cradle
7.1.8 Install the control panel access cover
7.1.9 Tighten the four fastening screws. Procedure is complete.
Author: Jeff Fell – Application Eng., Greg Semrow – Product
Marketing Date: 8, 2014
External
http://www.abb.us/drives.
Industry – Industrial
Document #: LVD-EOTN72U-EN
Revision: A
Product Categories: ACS355, MPOW, MREL, MTAC
