Actual signals and parameters 17
Parameters
All parameters
No. Name/Value Description Def/FbEq
11 REFERENCE
SELECT
Panel reference type, external control location selection and
external reference sources and limits
1104 REF1 MIN Defines the minimum value for external reference REF1.
Corresponds to the minimum setting of the used source
signal.
0.0 Hz /
1rpm
0.0…1400.0 Hz
/ 0…32000 rpm
Minimum value in rpm. Hz if parameter 9904 MOTOR CTRL
MODE setting is SCALAR: FREQ.

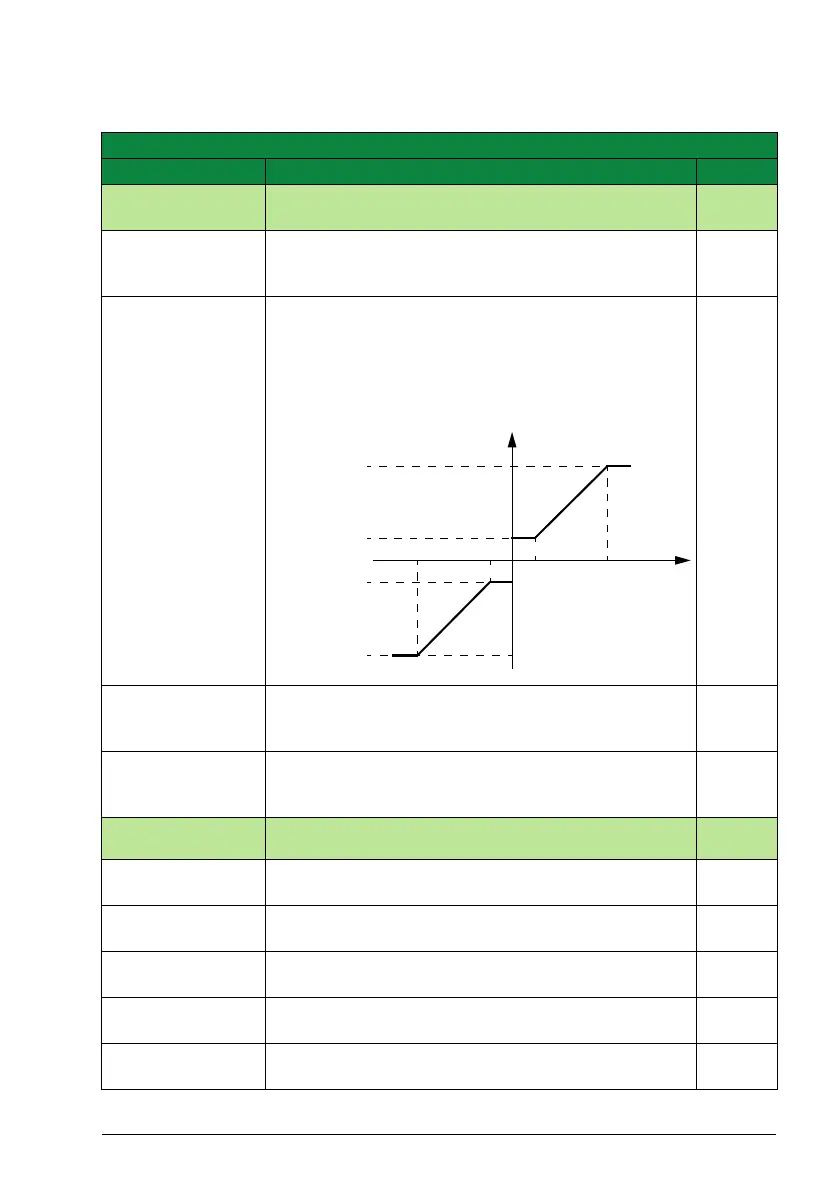

Example: Analog input AI1 is selected as the reference
source (value of parameter 1103 is AI1). The reference
minimum and maximum correspond to the 1301 MINIMUM
AI1 and 1302 MAXIMUM AI1 settings as follows:
1 = 0.1 Hz
/ 1 rpm
1105 REF1 MAX Defines the maximum value for external reference REF1.
Corresponds to the maximum setting of the used source
signal.
E: 50.0 Hz
U: 60.0 Hz
0.0…1400.0 Hz
/ 0…32000 rpm
Maximum value in rpm. Hz if parameter 9904 MOTOR
CTRL MODE setting is SCALAR: FREQ. See the example
for parameter 1104 REF1 MIN.
1 = 0.1 Hz
/ 1 rpm
12 CONSTANT
SPEEDS
Constant speed selection and values.
1202 CONST
SPEED 1
Defines constant speed (or drive output frequency) 1. E: 5.0 Hz
U: 6.0 Hz
0.0…1400.0 Hz
/ 0…32000 rpm
Speed in rpm. Output frequency in Hz if parameter 9904
MOTOR CTRL MODE setting is SCALAR: FREQ.
1 = 0.1 Hz
/ 1 rpm
1203 CONST
SPEED 2
Defines constant speed (or drive output frequency) 2. E: 10.0 Hz
U: 12.0 Hz
0.0…1400.0 Hz
/ 0…32000 rpm
Speed in rpm. Output frequency in Hz if parameter 9904
MOTOR CTRL MODE setting is SCALAR: FREQ.
1 = 0.1 Hz
/ 1 rpm
1204 CONST
SPEED 3
Defines constant speed (or drive output frequency) 3. E: 15.0 Hz
U: 18.0 Hz
REF (Hz/rpm)
REF1 MAX
(1105)
REF1 MIN
(1104)
-REF1 MIN
(1104)
-REF1 MAX
(1105)
AI1 signal (%)
1302 1301
1301 1302
