ABB ACS600 - Page 16

du/dt Filters Installation Guide
16
Isolate the ends
of the cable lugs
with insulating
tape or shrink
tubing.
PE

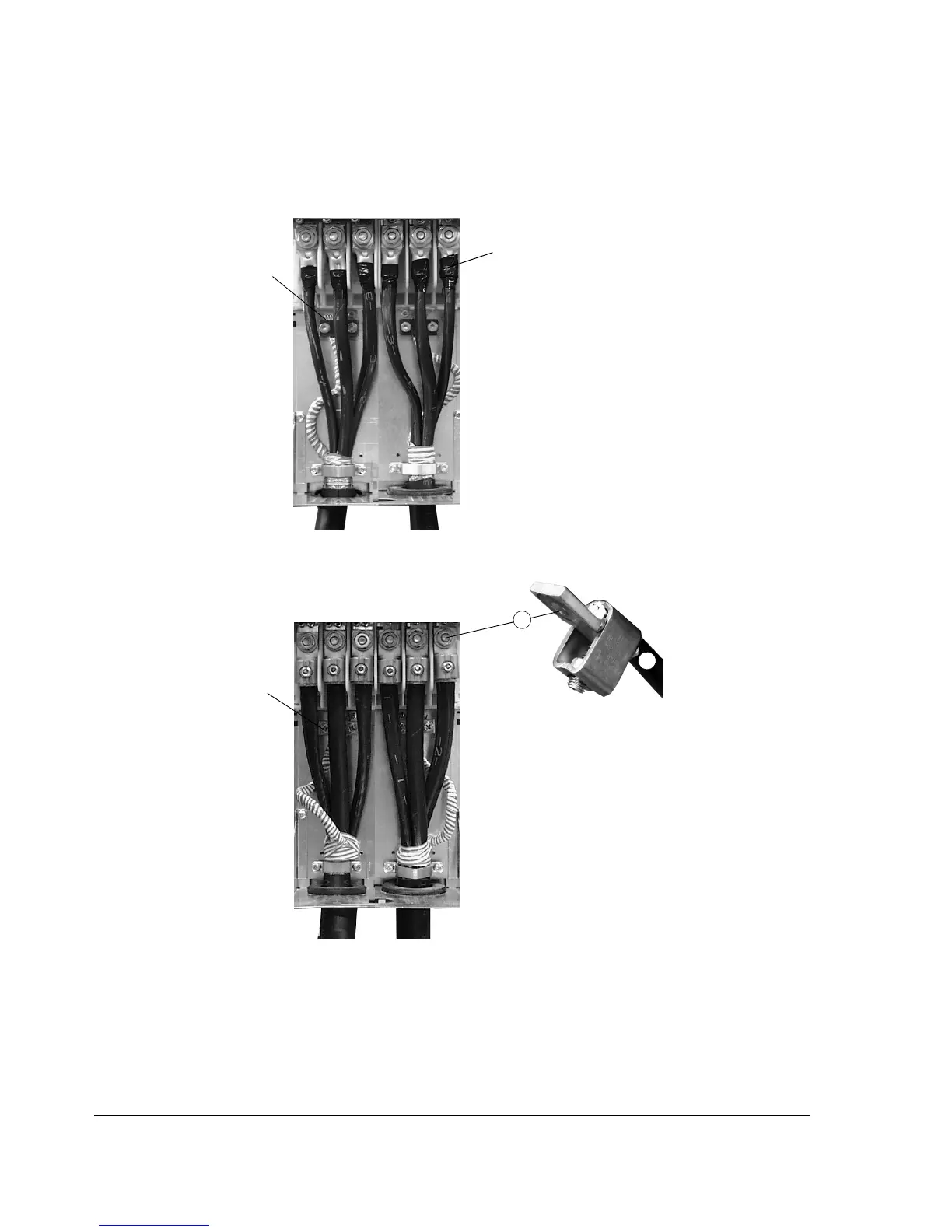

NOCH0120-6x: Cable lug installation
[16to70mm
2
(6 to 2/0 AWG) cables]
NOCH0120-6x: Cable terminal installation
[95to185mm
2
(3/0 AWG to 350 MCM) cables]
a. Connect the cable to the terminal.
b. Connect the terminal to the drive.
PE
b
a
