ABB ACS600 - Internal Circuit Diagrams

du/dt Filters Installation Guide
9

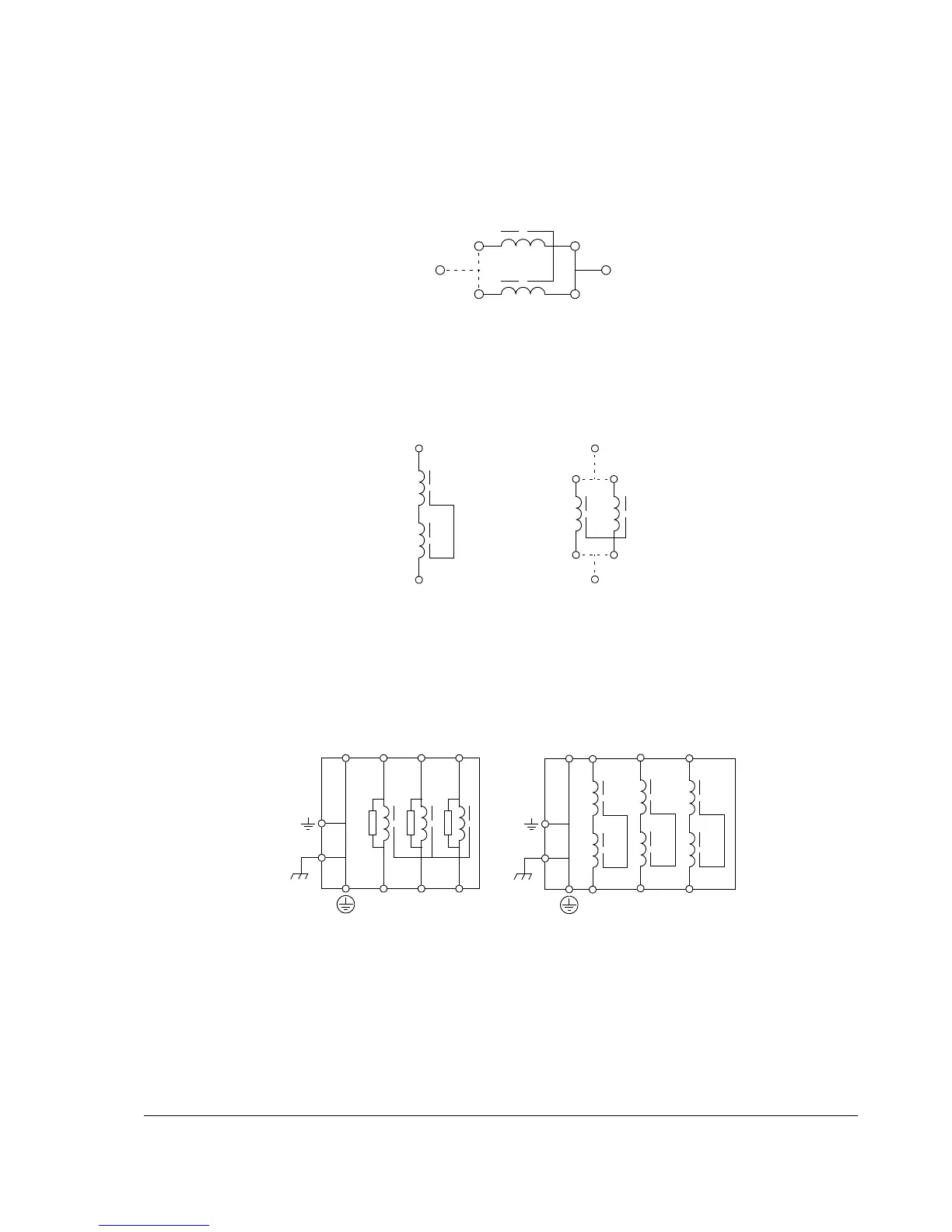

Internal circuit diagrams
1 (A) 2 (X)
1.1
1.2
2.1
2.2
AOCH0xxx-70: Connect the input terminals together.
outputinput
NOCH0120-60
1 (A)
2 (X)
NOCH0260-60
NOCH0400-60
NOCH0760-60
1.1
1.2
2.1 2.2
1 (A)
2 (X)
U1 V1
W1
U2
V2
W2
PE
NOCH0016-6x
NOCH0030-6x
NOCH0070-6x
U1
V1 W1
U2
V2 W2
PE
NOCH0120-6x
