du/dt Filters Installation Guide
6
• Maximum motor cable length for NOCH0xxx-6x filters (cumulative for several
parallel-connected motors):

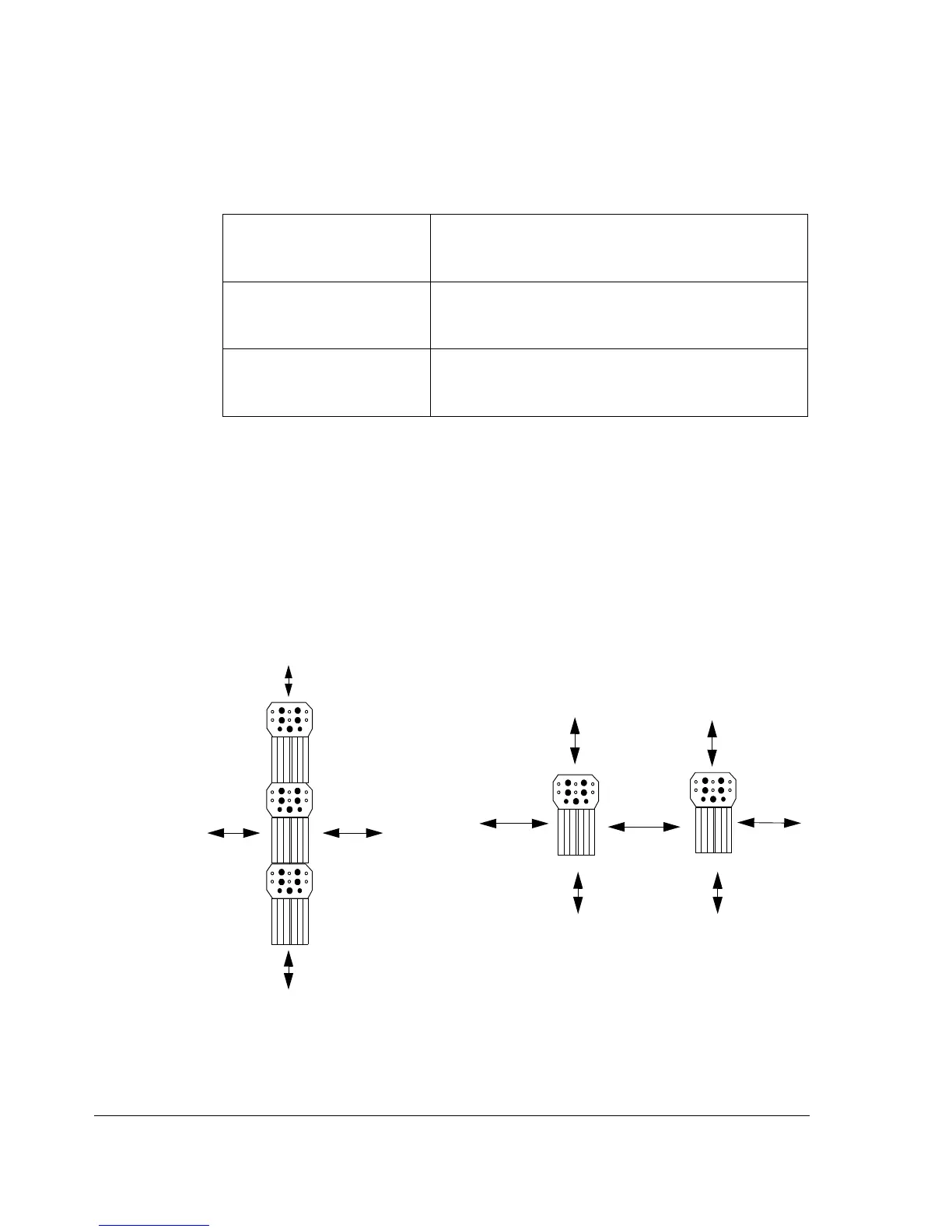

• The following free space requirements apply for the AOCH0xxx-70 filters:
150 mm free space on each free side. Exception: 500 mm above the filter if
installed below the drive. Exception: 50 mm between single phase filters on the
same transmission line.
If filters are mounted on top of each other with SingleDrive types 0320-5,
0610-5 and 0610-7, the filters need a minimum of 700 m
3
/h of forced cooling.
Maximum of three filters can be mounted on top of each other.
NOCH0016-60/62
NOCH0030-60/62
NOCH0070-60/62
NOCH0120-62
150 m
(can be increased to 300 m by
connecting two filters in series)
NOCH0016-65
NOCH0030-65
NOCH0070-65
NOCH0120-65
50 m
(can be increased to 100 m by
connecting two filters in series)
NOCH0120-60
NOCH0260-60
NOCH0400-60
NOCH0760-60
300 m
150 / 500 mm
150 mm
150 mm
150 mm
150 / 50 mm
150 mm
150 mm
150 / 500 mm
150 mm
AOCH filters side by side
AOCH filters on top of each other
