Dimensional drawings
139

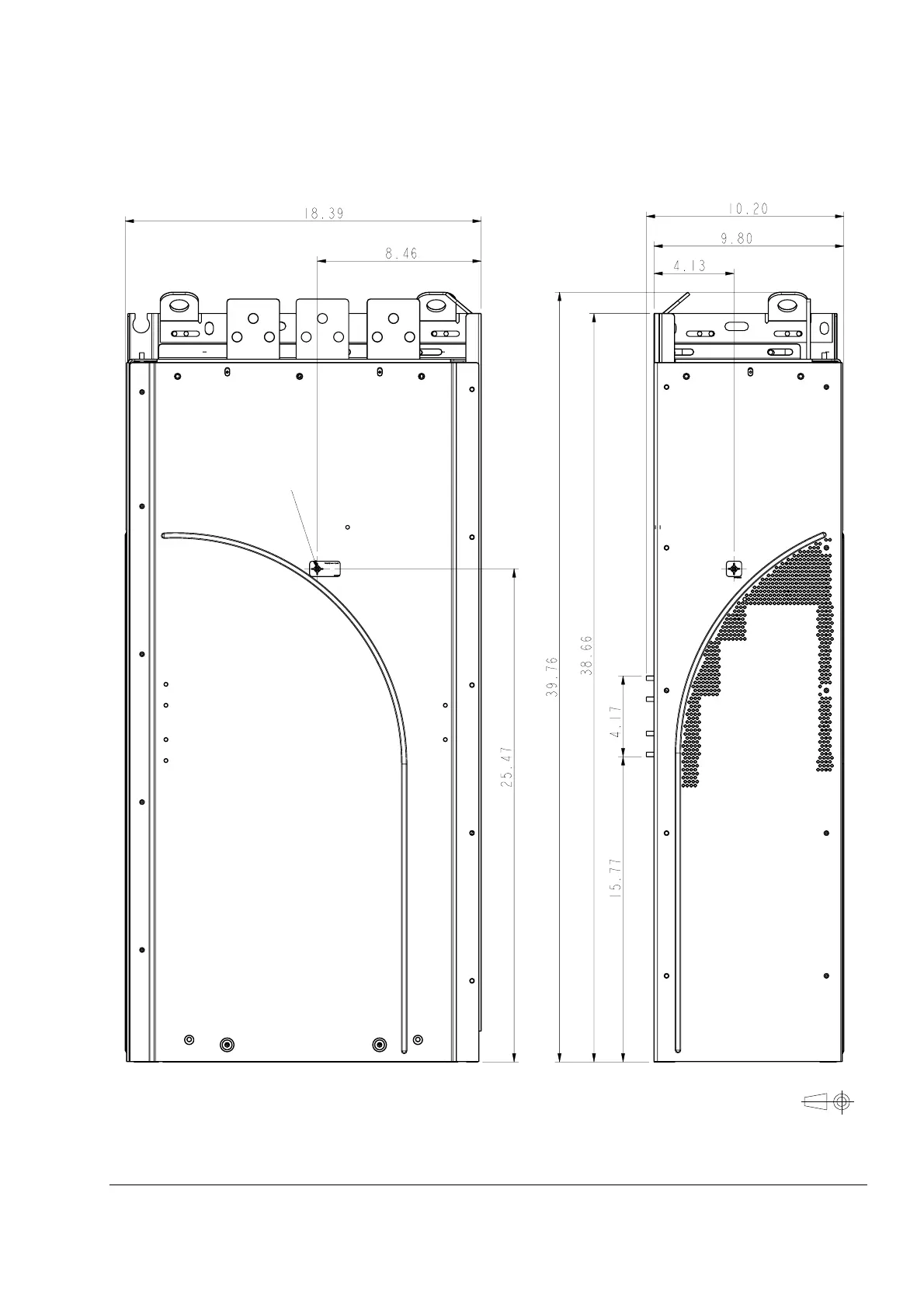

Frame size R7 without pedestal (inches)
68439221_3/7 A (64796003.asm E)
Center of
gravity
