Mechanical installation of non-pre-assembled units (ACS800-04M)
47

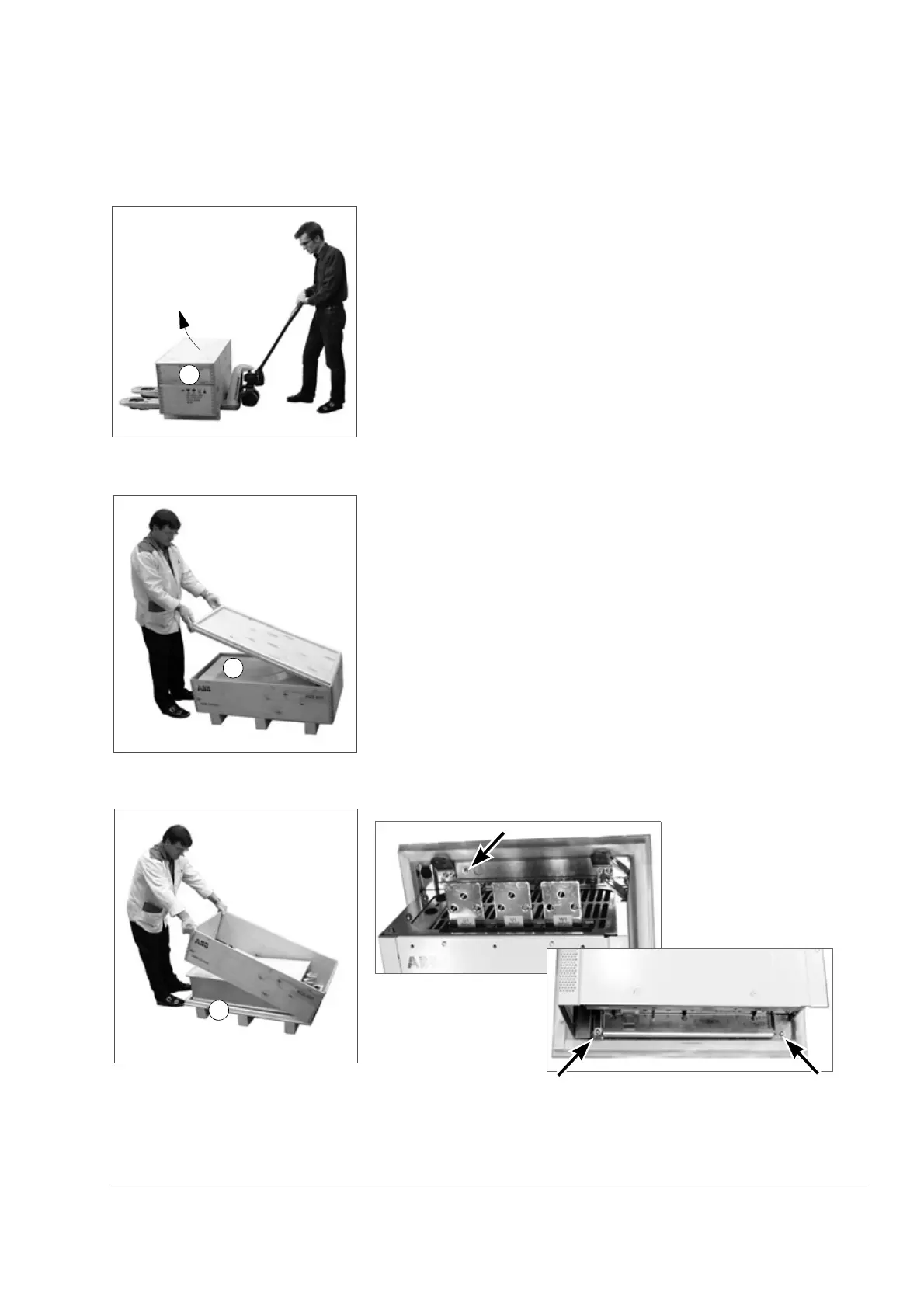

The module is delivered in a two-level package. Unpack the package as shown
below.
Move the transport package by pallet truck to the installation site. Lift up the
top cover. The following items are located in the upper package (1):
• pedestal
• output busbars U2, V2 and W2
• supports, screws and terminals for the output busbars and PE grounding
• fastening brackets for base and wall mounting
• busbars for brake resistor connection (if brake chopper is ordered)
• adapter (if output busbars on the short side of the module)
• DC busbars (if ordered)
• control panel and a 3 m (98 in.) cable (if ordered)
• control panel mounting platform (if ordered).
In the lower package (2):
•drive module.
Below the drive module (3):
• Drive Control Unit (RDCU). Note: The fibre optic cables and power supply
cable to be connected to the RMIO board inside the RDCU unit are wound
on the top of the drive module.
• optional modules (if ordered) factory installed onto the RMIO board in the
RDCU unit
• residual voltage warning and output busbar stickers
• hardware manual
• appropriate firmware manuals and guides
• delivery documents
• optional module manuals.
Undo the fastening
screws.
Bottom view
Top view
1
2
3
