…1 INTRODUCTION

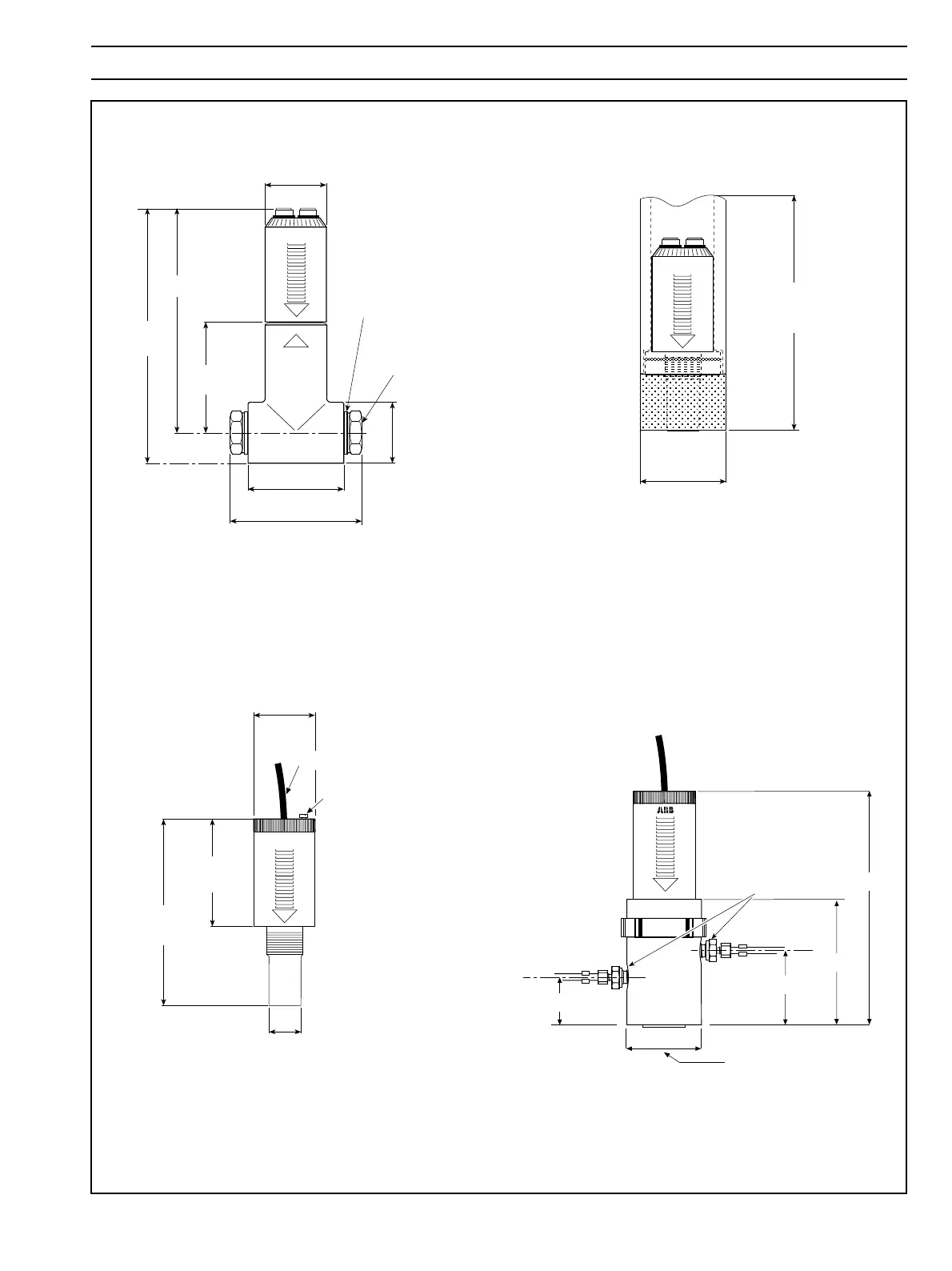

Fig. 1.2 Overall Dimension in mm (in)
Ø 48 (1.875)
200 (7.875)
See note
176 (7)
86 (3.375)
See note
Ø 48
(1.875)
75 (3)
102 (4)
Note. Allow an additional 130 (5.125) for connectors
and cartridge removal.
1
/
2
" BSPT
Female Thread
1" BSP or 1" NPT
Female Thread
AP101/2/3 – In-Line Flow System
Dimension A
(Overall Length)
Ø 63 (2.5)
Dimension A
7674 – 1060 (41.75)
7675 – 2060 (81.10)
7676 – 3060 (120.50)
AP103 – Dip System
Cable
Anchor point for
additional support
(light chain or
flexible cable)
Ø 48 (1.875)
176
(6.92)
101
(3.97)
Ø 27.9
(1.10)
AP104 – Submersible System
IN
OUT
3
/ 8 " NPT
Male Stud
Couplings
(not supplied)
40 (1.57)
62 (2.44)
115 (4.53)
216 (8.50)
Ø 65 (2.56)
