Wiring with the logic relay
192
1SVC 440 795 M0100

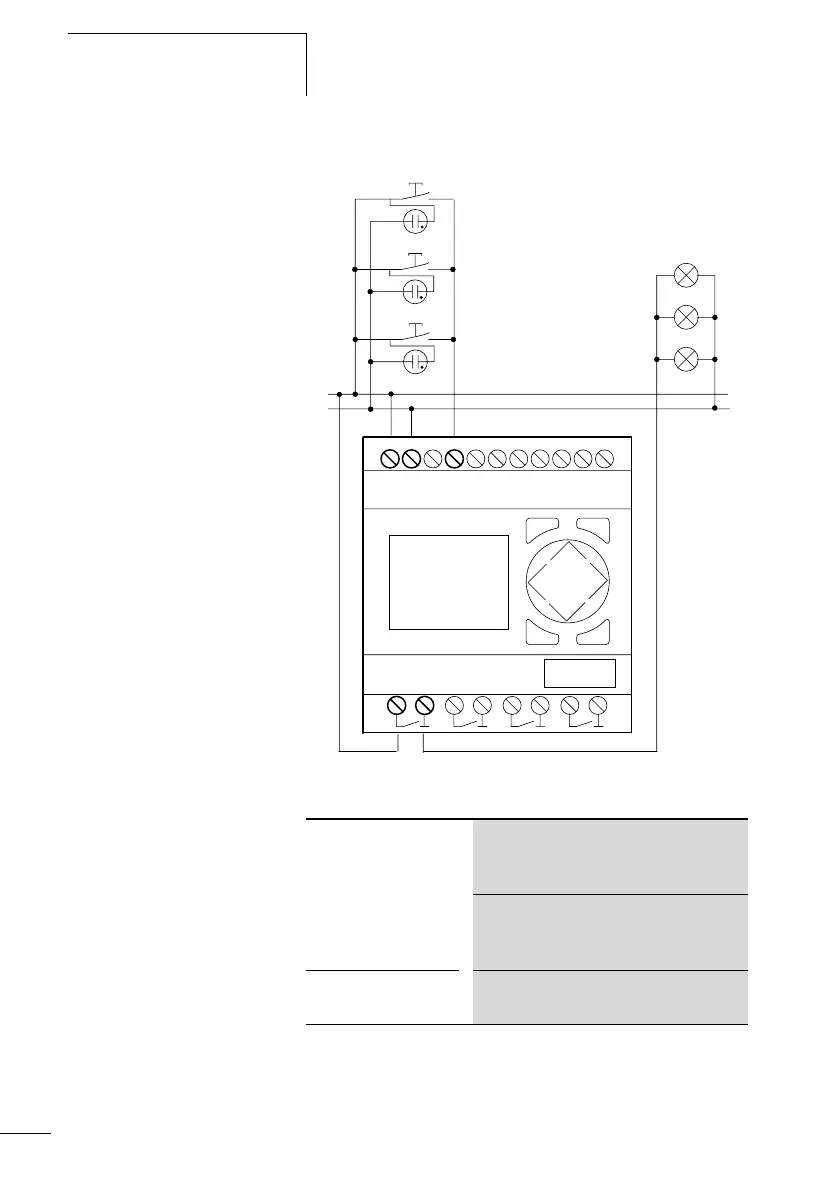

Figure 79: Stairwell lighting with the logic relay
Button pressed
briefly
Light ON or OFF. The impulse relay
function will even switch off continuous
lighting.
Light switches off automatically after
6 min.; with continuous lighting this
function is not active.
Button pressed for
more than 5 s
Continuous lighting
N
L
S1
S2
S3
H1
H2
H3
1
2
Q1
I1
L
N
