16
CP1484, CP1485, CP1486, CP3484, CP3485, CP3486
Data sheet V 1.00
1.1.11 Ethernet interface (IF2)
IF2 is an Ethernet interface. The connection is made using a 10/100 BASE-T Twisted Pair RJ45
socket.
The INA2000 station number for the Ethernet interface is set with the two hex switches.
Pin assignments

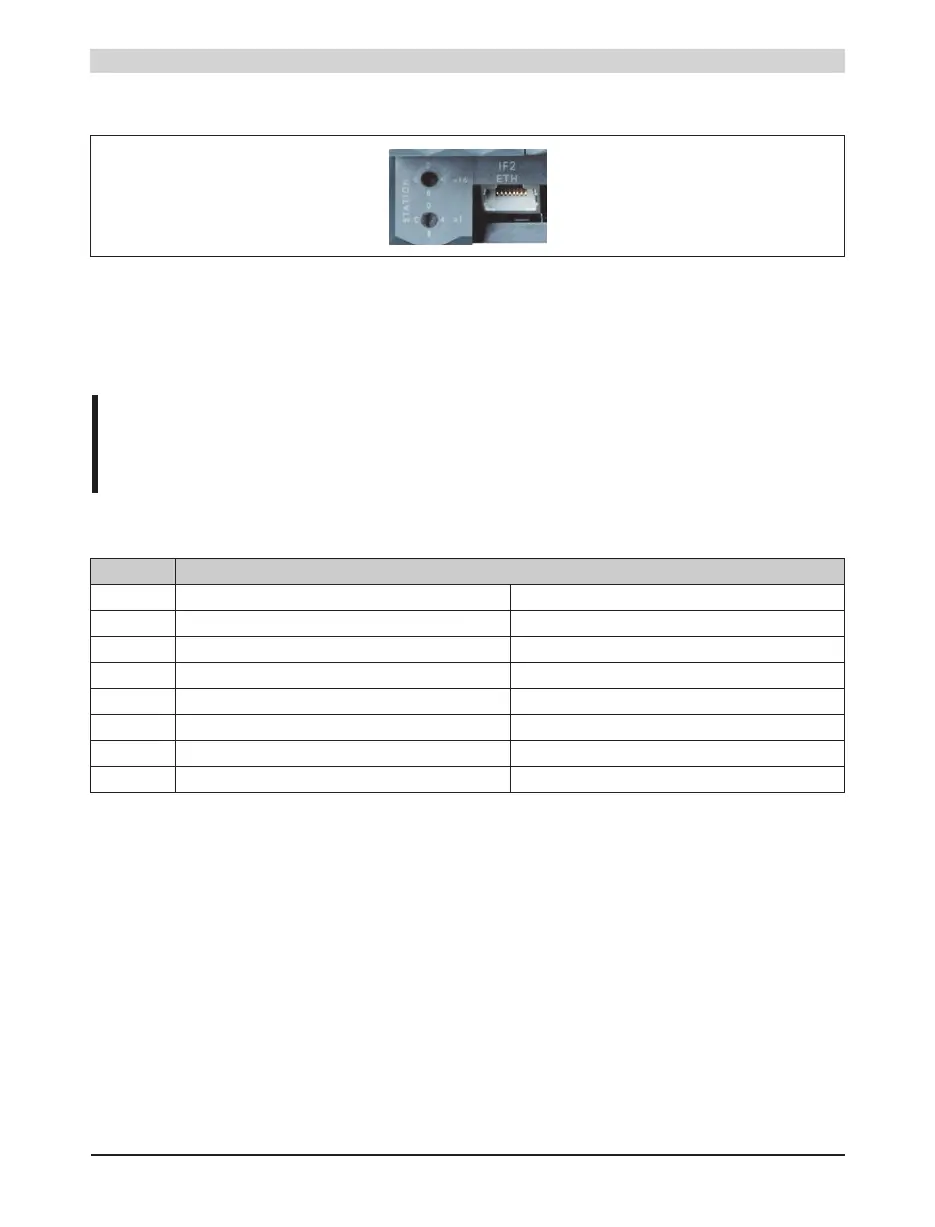

Figure 8: X20 CPUs - Ethernet interface (IF2)
Information:
The Ethernet interface (IF2) is not suited for ETHERNET Powerlink (see interface IF3
on page 17).
Pin Assignment
1RXD Receive Data
2 RxD\ Receive Data\
3 TxD Transmit Data
4 Termination
5 Termination
6 TxD\ Transmit Data\
7 Termination
8 Termination
Table 11: X20 CPUs - pin assignments - Ethernet interface (IF2)
