CP1484, CP1485, CP1486, CP3484, CP3485, CP3486
17Data sheet V 1.00

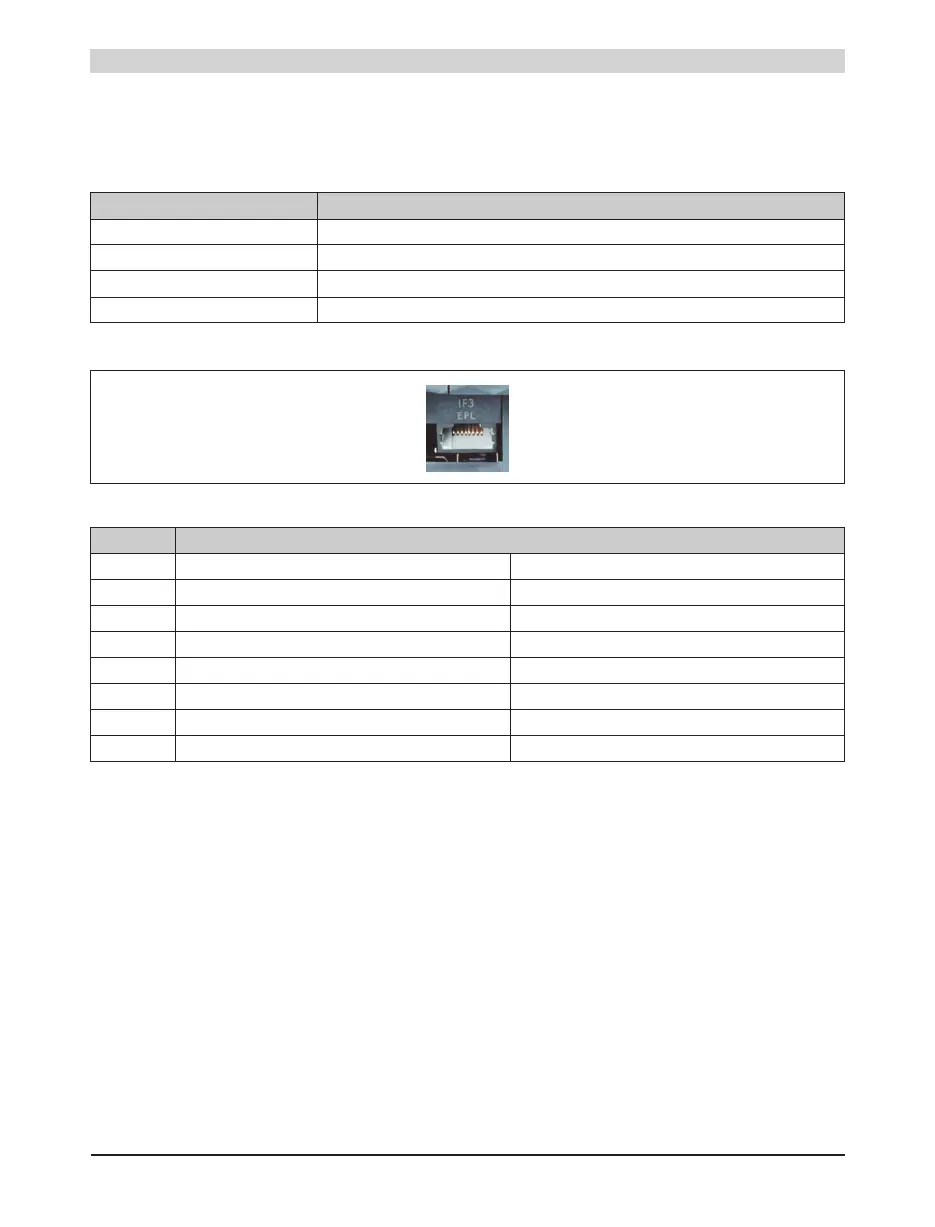

1.1.12 ETHERNET Powerlink Interface (IF3)
The station number can be set using software. Station numbers are permitted between $00 and
$FD.
Switch position Description
$00 Operation as Managing Node (standard).
$01 - $FD Station number for Powerlink station. Operation as controlled node.
$FE Reserved, switch position is not permitted.
$FF Reserved, switch position is not permitted.
Table 12: X20 CPUs - ETHERNET Powerlink station number
Figure 9: X20 CPUs - ETHERNET Powerlink interface (IF3)
Pin Assignment
1RXD Receive Data
2 RxD\ Receive Data\
3 TxD Transmit Data
4 Termination
5 Termination
6 TxD\ Transmit Data\
7 Termination
8 Termination
Table 13: X20 CPUs - pin assignments - ETHERNET Powerlink interface (IF3)
