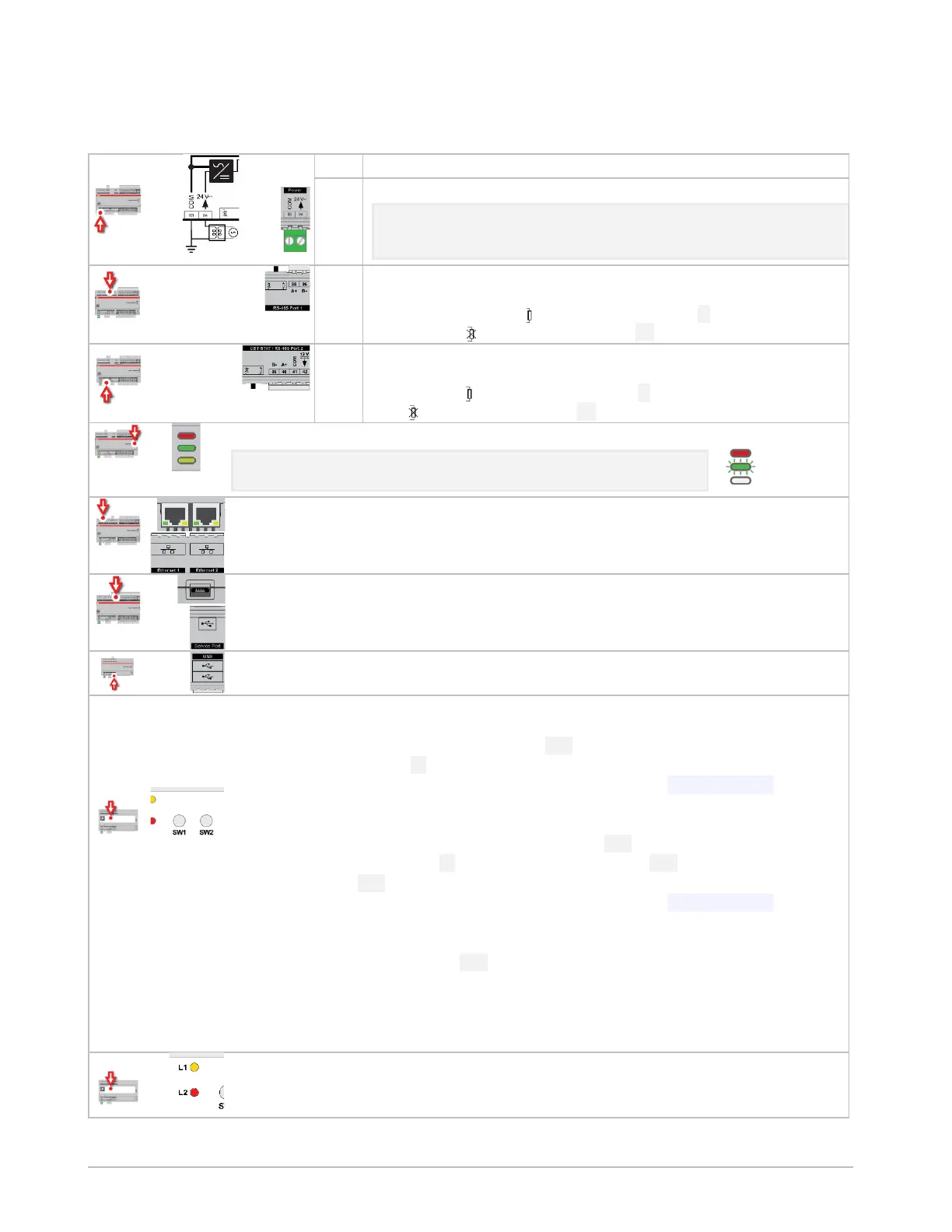

TERMINALS
Terminal
Numbers
Description
93, 94
24 V AC Power
Important: The common power connection (terminal 93) must be
connected to Earth. ABB Cylon recommend that this is done
at the 24 V AC transformer.
95, 96
RS-485 Port 1 (BACnet® MS/TP) screw terminal
MS/TP subnet terminator switch is located beside the port. If the
switch is towards the icon, then termination is in and if the switch is
towards the icon then termination is out.
39 …
42
RS-485 Port 2 (BACnet® MS/TP or Modbus RTU)
The bus Terminator Switch is located beside the port. If the switch is
towards the icon, then termination is in and if the switch is towards
the icon then termination is out.
Indicator LEDs
Note: During typical operation, the Red LED should be on, the Green
LED should be blinking and the Yellow LED should be off.
Ethernet Ports
Service Port (Micro USB)
USB ports
Reserved for firmware upgrade
Push buttons
Reset Ethernet settings (IP address) only :
• While the controller is running , press SW1 for 1 second.
• On release, LED L2 will light up.
• All ethernet settings will be returned to factory defaults 192.168.1.251/24 .
• Groups and Users (passwords) will remain intact
Reset everything to factory defaults :
• while the controller is running , press and hold SW1 .
• After 3 seconds LED L2 will light up, continue to hold SW1 for at least 10 seconds.
• Release SW1.
• All ethernet settings will be returned to factory defaults 192.168.1.251/24 .
• Groups and Users (passwords) will be reset to factory defaults.
Restart the device leaving all ethernet settings and passwords intact:
• while the controller is running , press SW2 for 1 second.
• The red indicator LED will remain on.
• The Green indicator LED will stay off until reboot in complete.
• The Green indicator LED will begin to flash when reboot is done.
• The Yellow indicator LED will be off unless there is a problem
LED L1 / LED L2
Red L2 lights up when reset is triggered.
