2 Installation
APPLY POWER TO THE DEVICE
For the initial configuration of the device, the controller must first be powered on.
Note: Service Port (USB connection) must not be connected until after the device is powered on.
The MATRIX-2 requires 24 V AC/DC supplied from an externally mounted power transformer. One conductor
of the transformer must be grounded to an earth ground to avoid damage to the controller. This conductor

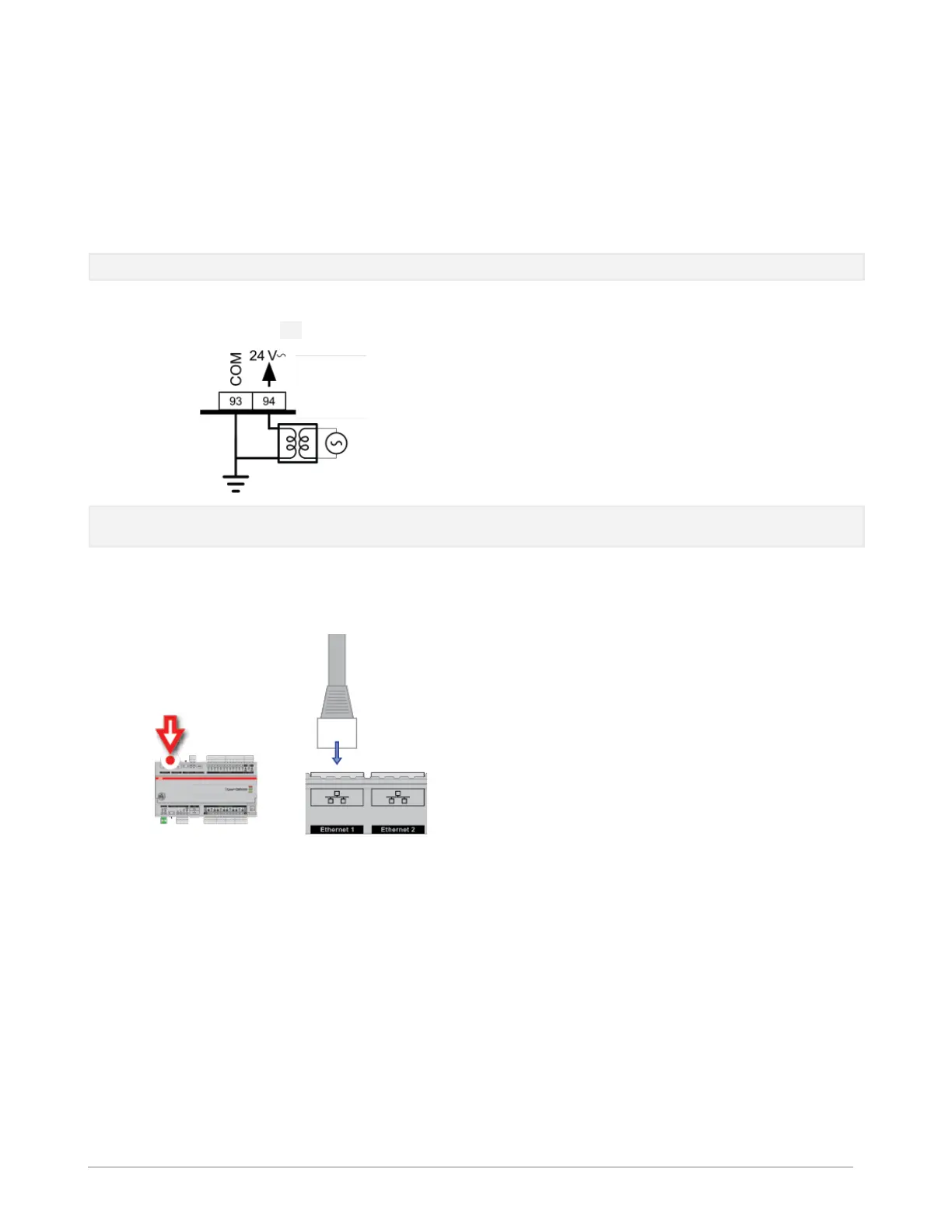

will be wired to the COM (common) terminal of the controller. The wiring diagram is shown here:
Note: Ensure the 24 V AC/DC and Common wires are correctly connected to the controller. If the wires are
swapped, it may cause damage to anything connected to the controller.
CONNECT THE MATRIX-2 TO AN IP NETWORK
Place an Ethernet cable from the Network’s Ethernet switch into one of the 2 Ethernet ports on the top of the
MATRIX-2:
IP Cabling requirements
Cable
Standard patch cable, Cat 5e with 4 pairs of wires fitted with RJ-45
connectors
RJ-45 pin connections
Straight-through wiring
Characteristic impedance
100-130 Ohms
Distributed capacitance
Less than 100 pF per meter (30 pF per foot)
Maximum Cable length
between IP devices
328 ft. (100 m) maximum

ABB Cylon MATRIX-2 Series Specifications

General

Brand	ABB
Model	Cylon MATRIX-2 Series
Category	Industrial Electrical
Language	English
