II F 2-10
3ADW000072R0501_DCS600_System_description_e_e
DCF 503A
• Half controlled thyristor/diode bridge (1-Q).
• Microprocessor control with the control electronics
being supplied separately (115...230 V/1-ph).
• Construction and components have been designed
for an insulation voltage of 690 V AC.
• Output voltage U
A
:
9.0*
%100
%100
*
+
=
TOL
UU
VA
TOL = tolerance of line voltage in %
U
V
= Line voltage
• Recommendation:
Field voltage 0.6 to 0.8 * U
V
DCF 504A
• Fully controlled antiparallel thyristor bridges (4-Q).
• With this unit fast response excitation / de-excita-
tion and field reversal is possible. For fast response
excitation an appropriate voltage reserve is neces-
sary.
In steady-state condition, the fully controlled bridge
runs in half controlled mode to keep the voltage
ripple as low as possible. With a fast changing field
current, the bridge runs in fully controlled mode.
• Same design as DCF 503A
DCF 600
This field power converter is used mainly for armature
converters with rated currents of 2050 to 5200 A. It is
a modified armature circuit converter.
• Output voltage U
A
respectively U
dmax 2-Q
:
see table 2.2/1.
• Recommendation:
Field voltage 0.5 to 1.1 * U
V

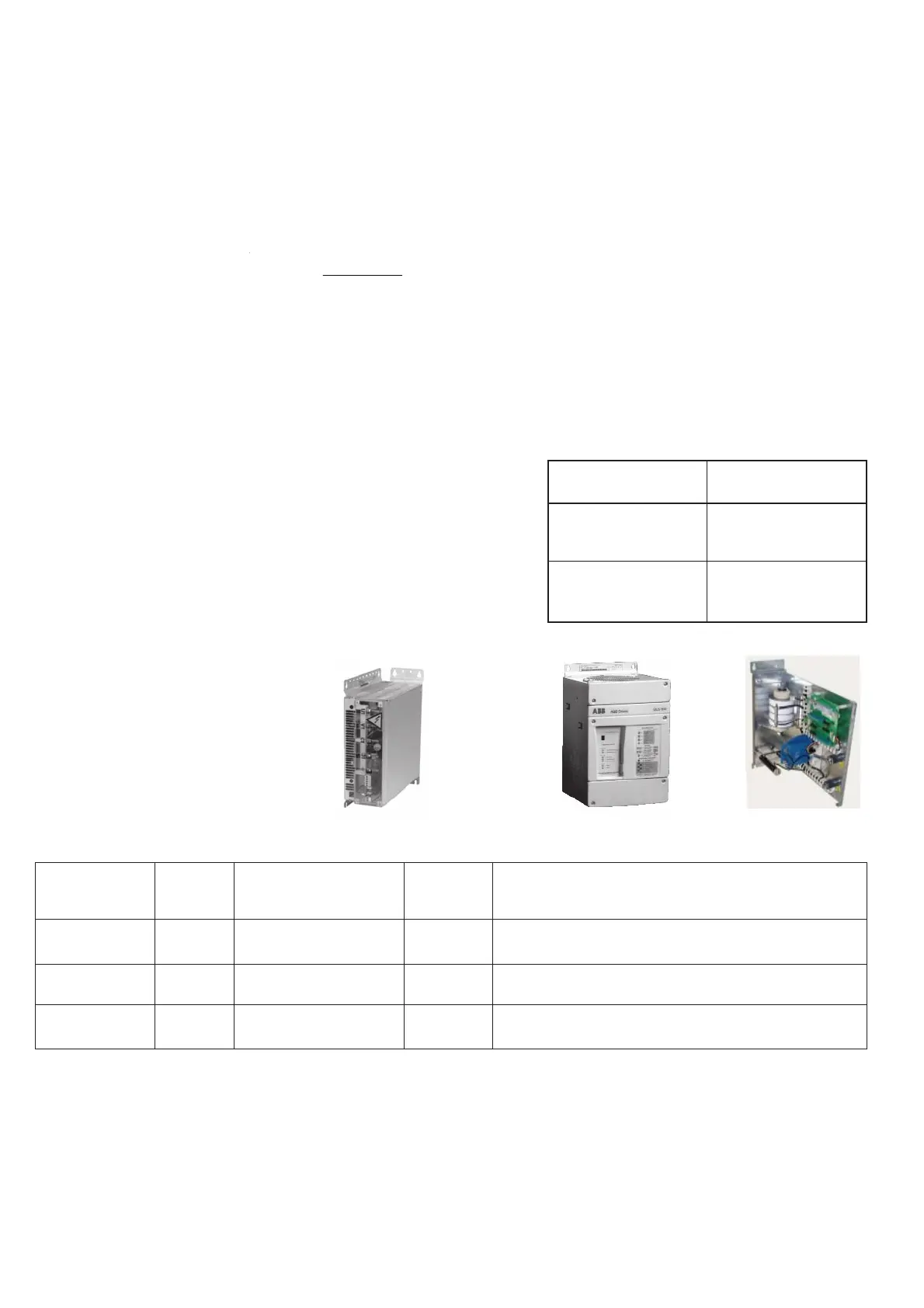

• The three-phase field supply converters DCF 600
needs a separate active overvoltage protection unit
DCF 506 for protecting the power part against too
high voltages.
The overvoltage protection unit DCF 506 is suitable
for 2-Q converters DCF 601 and for 4-Q converters
DCF 602.
auxiliary supply (115...230V) if necessary via matching trans-
former; external fuse; Dimensions HxWxD: 370x125x342 [mm]
DCF506-140-51,
without cover
DCF601/602
Assignment Field supply converter to Overvol-
tage protection unit
DCF503A/504A
Unit type Output Supply Installation Remarks
current I
DC
➀ voltage site
[A] [V]
SDCS-FEX-1-0006 0.02...6 110V -15%...500V/1-ph +10% internal external fuse, 6 A ⇒ I
Frated
SDCS-FEX-2A-0016 0.3...16 110V -15%...500V/1-ph +10% internal ext. fuse, reactor; for C1: 0.3 ... 8 A ➀, not to be used for A6/A7 mod.!
DCF 503A-0050 0.3...50 110V -15%...500V/1-ph +10% external
DCF 504A-0050 0.3...50 110V -15%...500V/1-ph +10% external
DCF 60x-xxxx-41/51 see table 200V...500V/3-ph external
2.2/2
➀ Current reduction see also
2.1 Environmental conditions Fig.: 2.1/1 and 2.1/2
Table 2.4/1: Data field converter units
are based on the hardware of the DCS 600 and additional
hardware components (DCF 506); auxiliary supply (115/230 V)
Field supply converter Overvoltage Protection
for motor fields
DCF60x-0025-51
... DCF506-0140-51
DCF60x-0140-51
DCF60x-0200-51
... DCF506-0520-51
DCF60x-0520-51
