II F 2-16
3ADW000072R0501_DCS600_System_description_e_e
Operation by PC (continued)
DriveWindow 2.xx
Windows
TM
-based, user-friendly
ABB's DriveWindow is an advanced, easy-to-use tool
for the commissioning and maintenance of drive sys-
tems in different industries. Its host of features and
clear, graphical presentation of the operation make it a
valuable addition to your system providing informa-
tion necessary for troubleshooting, maintenance and
service, as wellas training.
DriveWindow is fully 32 bit and runs in the newer
Microsoft
®
Windows environments such as WIN NT
/ 2000 / XP.
With DriveWindow the user is able to follow the co-
operation of twoor more drives simultaneously by
collecting the actual values from the drives onto a single
screen or printout.
Additionally, the client part of DriveWindow may
reside on one Local Area Network PC, and the server
side on another PC closer to the drives. This enables
plant-wide monitoring to be easily accomplished with
two PCs.
Powerful and versatile
• DriveWindow can access all drives connected to
the high speed fiber optic network see manuals:
- Configuration Instructions NDBU-85/95
(3ADW000100).
- NDBU-85/95 Branching Units
(3BFE64285513).
- DDCS Cabling and Branching
(3AFE63988235).

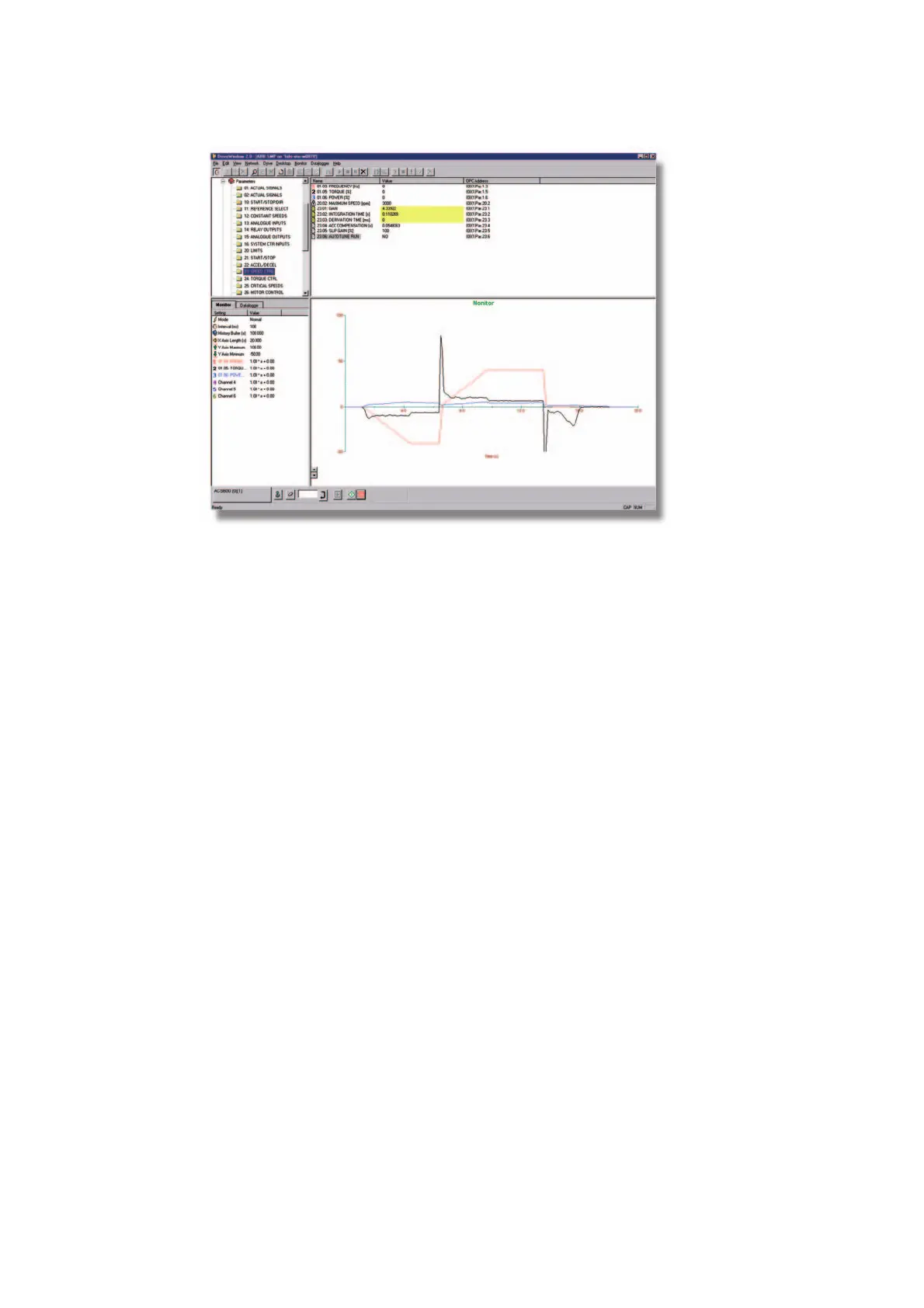

• Signal values can be viewed as graphs from the
drive/drives.
• A screenful of signals and parameters from the
drive can be monitored and edited at one time
(off-line or on-line).
• View data collected and stored in the drive.
• Fault diagnosis; DriveWindow indicates the status
of drives, and also reads fault history data from
the drive.
• Remote monitoring, plant wide monitoring with
two PCs.
• Back-up of drive parameters; in fault situations
the file can be easily reloaded, resulting in time
savings.
• Back-up parameters or software from the drive
into PC files. This version allows the entire con-
trol board content to be saved and restored later -
even to empty control boards.
DriveWindow is part of the Drive
IT
folder of the
Industrial
IT
.
Features
• Easy-to-use tool for com-
missioning and mainte-
nance.
• Several drives connected
and monitored at the same
time.
• Monitor, edit or save sig-
nals and parameters, clear
graphical presentation.
• High speed communica-
tion between PC and drive
• Versatile back-up func-
tions.
